XC-14A, XC-22A, XC-30A SERVICE MANUAL

GENERAL DESCRIPTION

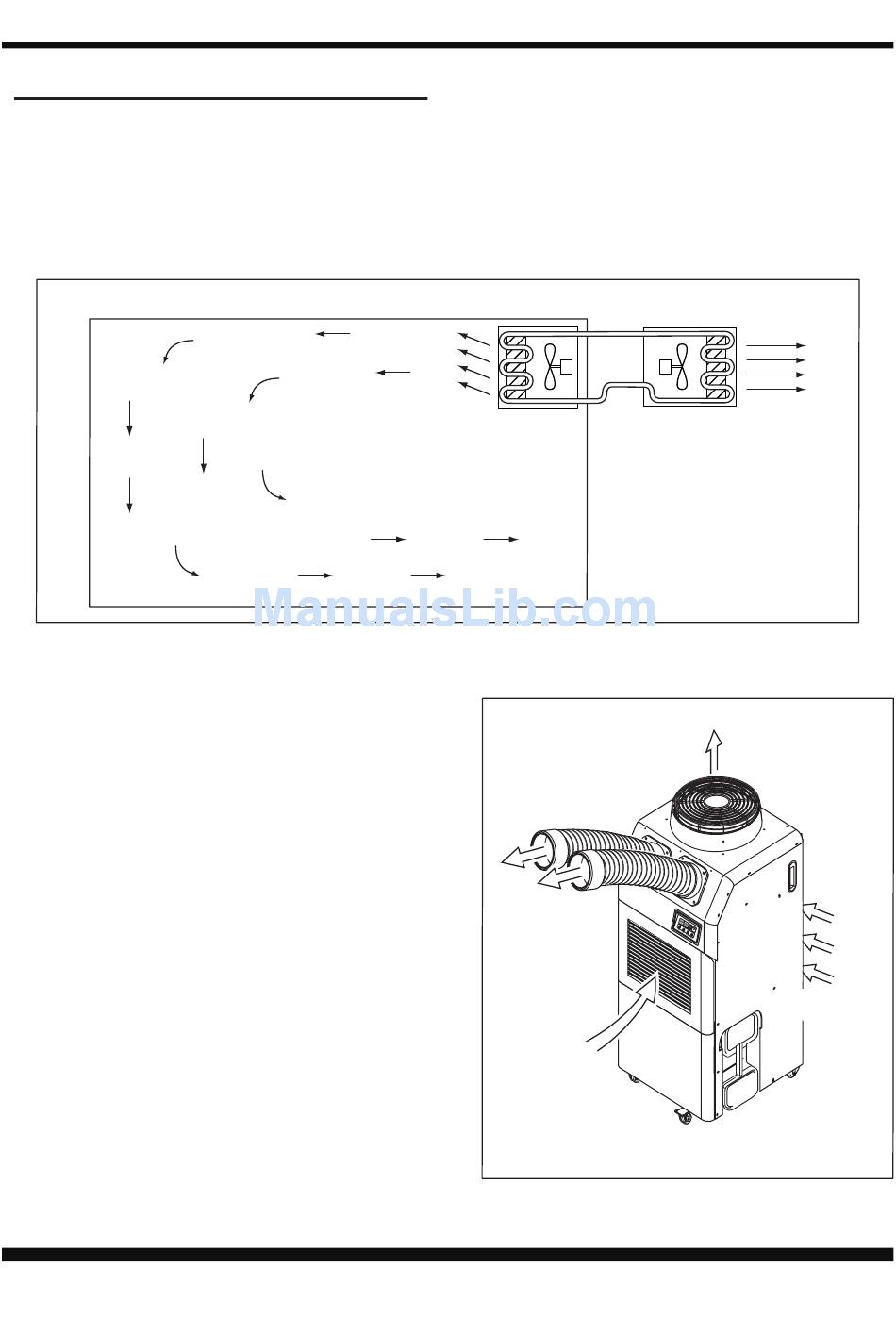

General air conditioning system
1) conventional air conditioners cool the entire enclosed environment.
2) They act as "heat exchangers", equiring an interior unit (evaporator) to blow
cool air into the interior and an exterior unit (condenser) to exhaust
exchanged heat to the outdoors.
Portable air conditioning system
1) The XC-14A / XC-22A / XC-30A is a spot
cooler which directs cool air to particular
areas or objects.
2) The XC-14A / XC-22A / XC-30A has the
following features.
3) The innovative design of the XC-14A /
XC-22A / XC-30A has resulted in one
compact unit, replacing the need for two
separate units.
4) With the whole cooling system built into
one compact unit, the XC-14A / XC-22A /
XC-30A requires no piping and can be
easily transported and installed.
5) The XC-14A / XC-22A / XC-30A is
economical because it cools only the
area or objects which need to be cooled.
Page 4
Indoor Unit
Evaporator
Cooling Air
Intake air
(to Evaporator)
Xtreme Power Conversion® (XPC) Corporation
Portable Air Conditioners
Outdoor Unit
Condenser
Exhaust Hot Air
Filter
Filter
Intake air
(to Condenser)
