Control Panel - EXTRE COOLING XC-14A Service Manual

XC-14A, XC-22A, XC-30A SERVICE MANUAL

Control panel

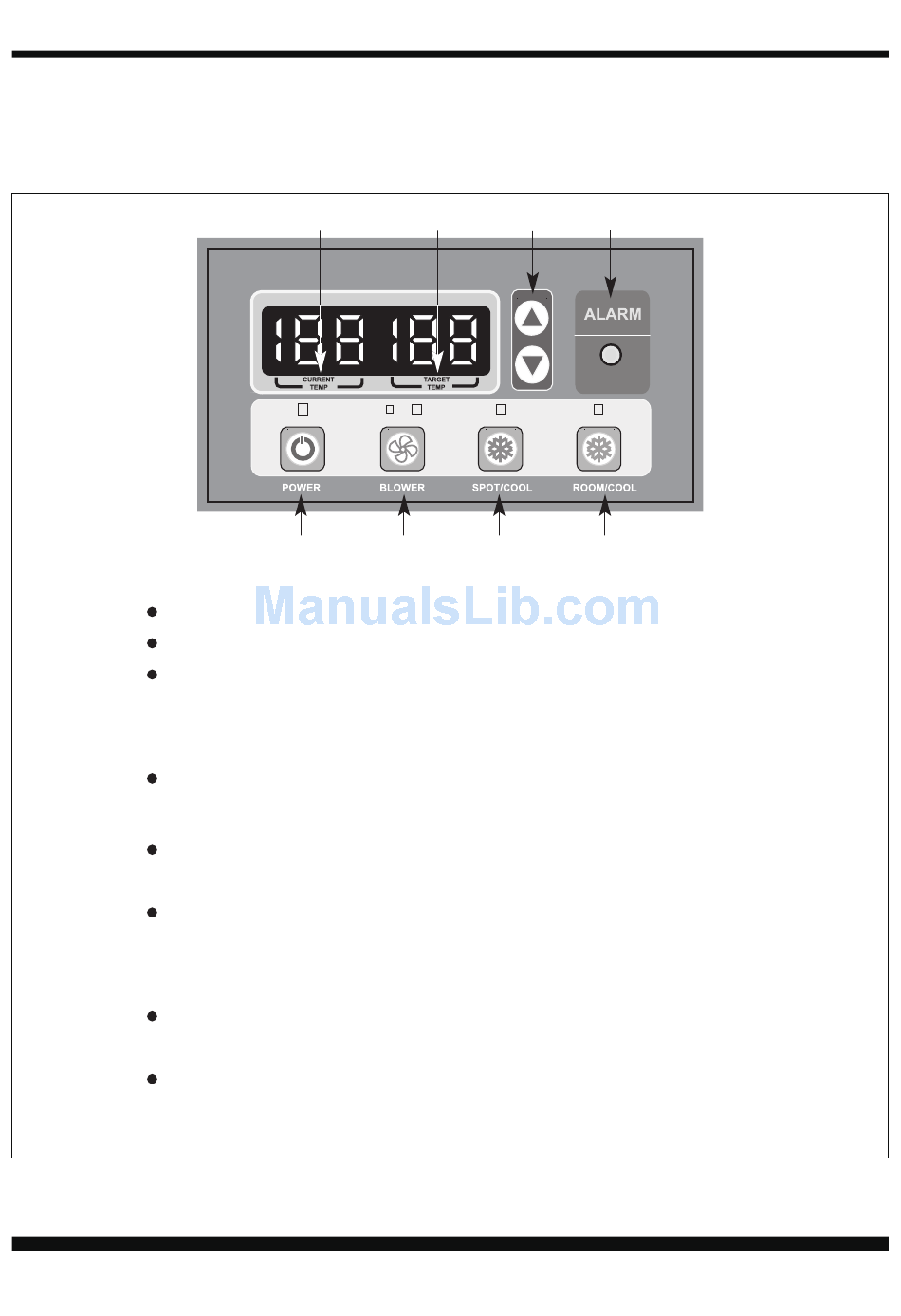

Before operating the unit, it is important to be familiar with the basic
operation of the control panel.
1. POWER BUTTON
Activates unit when POWER BUTTON is pressed.
Fan starts on low speed.
If POWER BUTTON is pressed during operation, unit
stops.
2. BLOWER BUTTON
Changes fan speed from LOW to HIGH when pressed.
3. SPOT / COOL BUTTON
Activates compressor and begins producing cool air 5
seconds after button is pressed.
Regulates temperature based on outlet cool air
temperature.
4. ROOM / COOL BUTTON
Activates compressor and produces cool air 5 seconds
after button is pressed.
Regulates temperature based on inlet ambient air
temperature.
Xtreme Power Conversion® (XPC) Corporation
7 8
1 2
Portable Air Conditioners
6
5
3 4
Page 19
