XC-14A, XC-22A, XC-30A SERVICE MANUAL

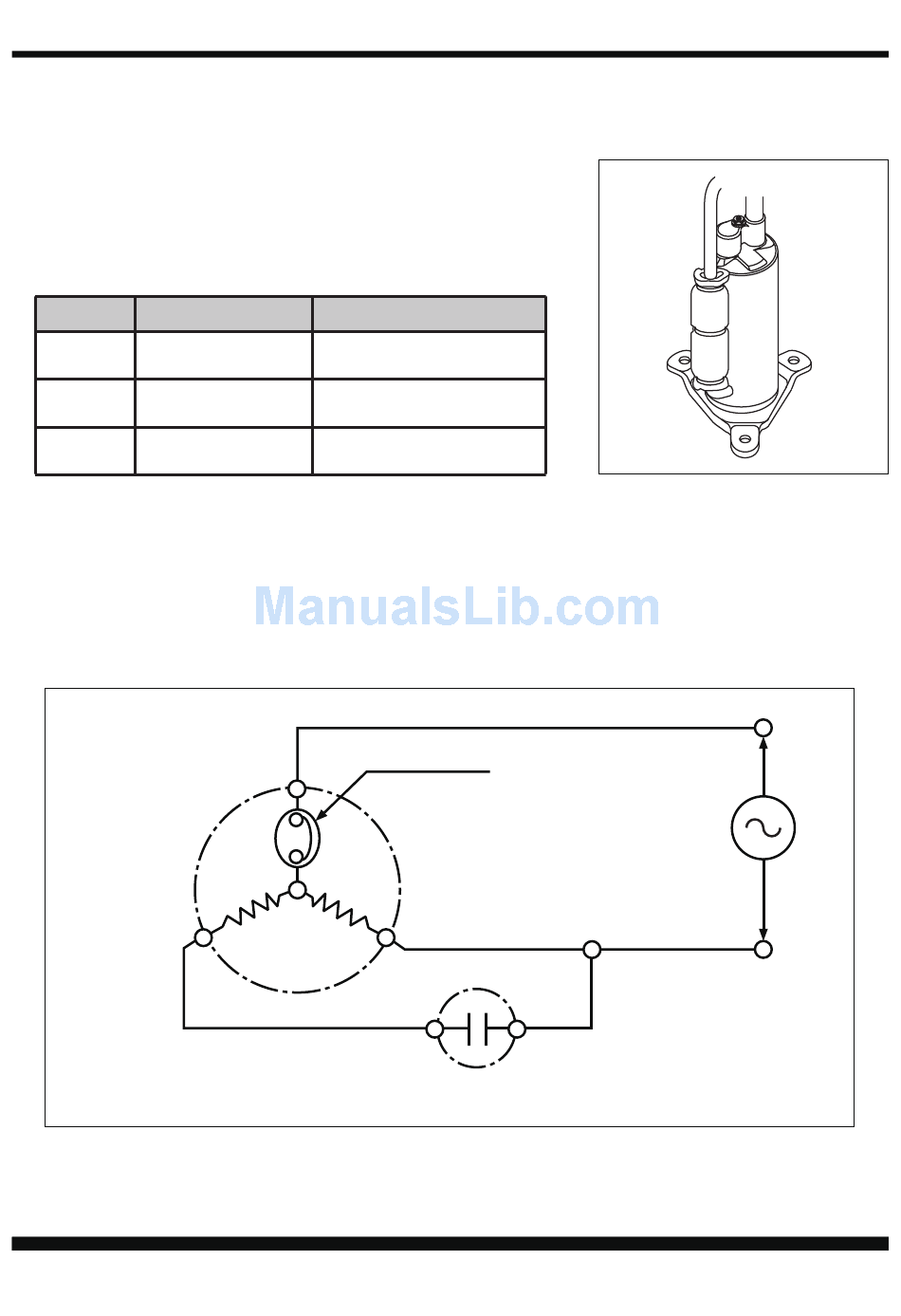

Compressor
1) Compressor motor
• The compressor motor is a single-phase motor
and is contained within the same housing as
the compressor.
Specifications:
Rated Voltage
XC-14A
XC-22A 208/230 V
XC-30A 208/230 V
2) Compressor overload relay
• The compressor overload relay is used to protect the compressor motor.
The relay interrupts the flow of current when there is an overload condition and,
high temperature builds up in the compressor.
COMPR.
MOTOR
S
Page 28
Rated Output
115V 1175W ±5%
2000W / 1980W
2700W / 2715W ±5%
C
AUX MAIN
Inner protector
R
Run capacitor
