XC-14A, XC-22A, XC-30A SERVICE MANUAL

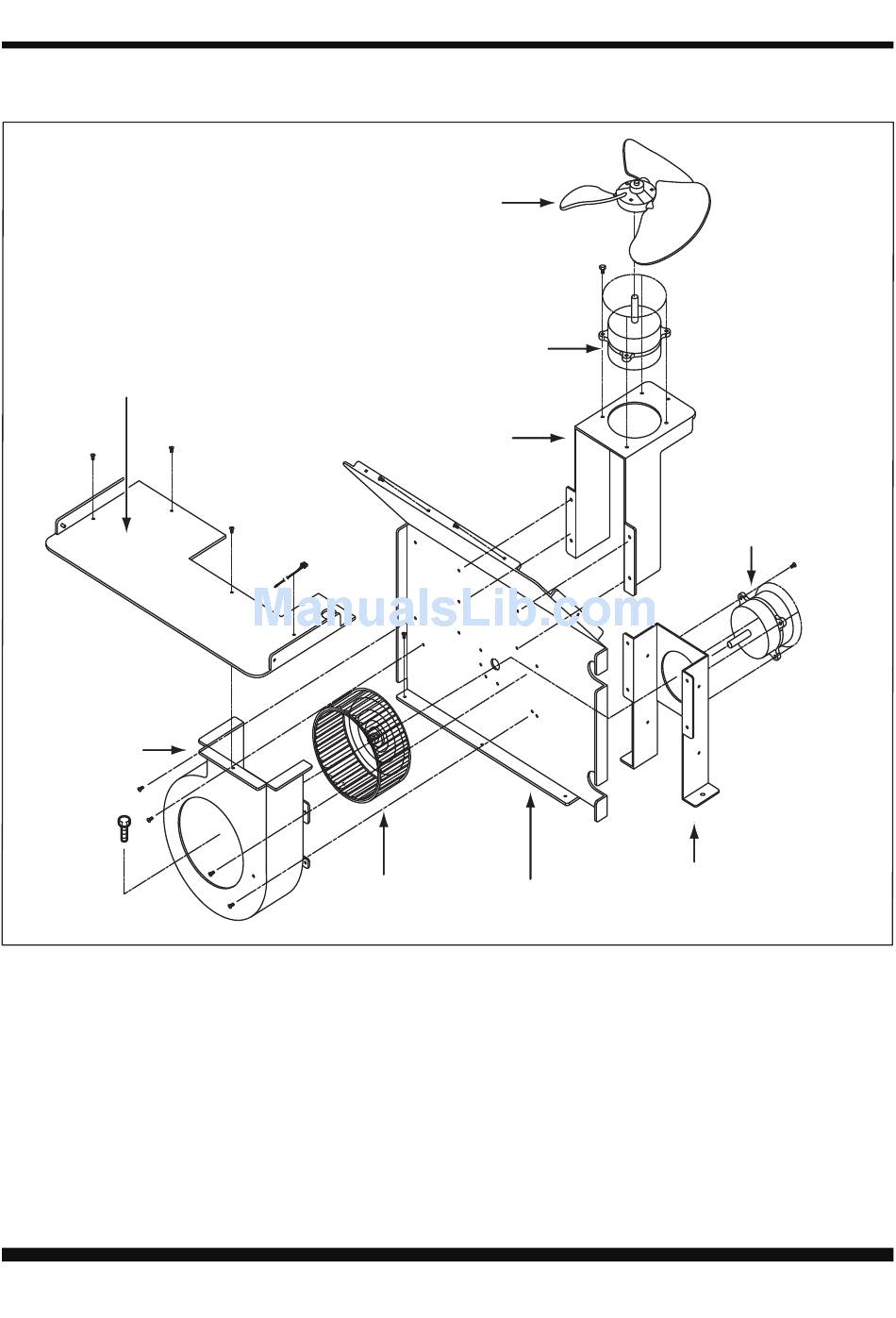

Fan Motor Removal
<XC-22A, XC-30A>
1)Eva Top Cover
3)Eva Scroll
1) Take off the three (3) bolts of evaporator top cover.
2) Loosen the set screw with a hex key, and then remove the evaporator fan.
3) Take off the five (5) bolts of the Eva scroll, and then remove the Eva scroll.
4) Loosen the set screw with a hex key, and then remove the condenser axial fan.
5) Take off the four (4) hex bolts from the condenser motor bracket,
and then remove the condenser fan motor.
6) Take off the four (4) hex bolts from the evaporator motor bracket,
and then remove the evaporator fan motor.
Xtreme Power Conversion® (XPC) Corporation
4)Axial Fan
5)Condenser Motor
5)Condenser
Motor Bracket
2)Evaporator Fan
Portable Air Conditioners
6)Evaporator
Partition
Motor Bracket
6)Evaporator Motor
