DISASSEMBLY (For XC-22A, XC-30A)

Disassembly

Cooling Air Duct
Front Panel
Screws (3)
Xtreme Power Conversion® (XPC) Corporation
Screws (12)
Drain Tank
Service Panel
Circuit Breaker
Portable Air Conditioners

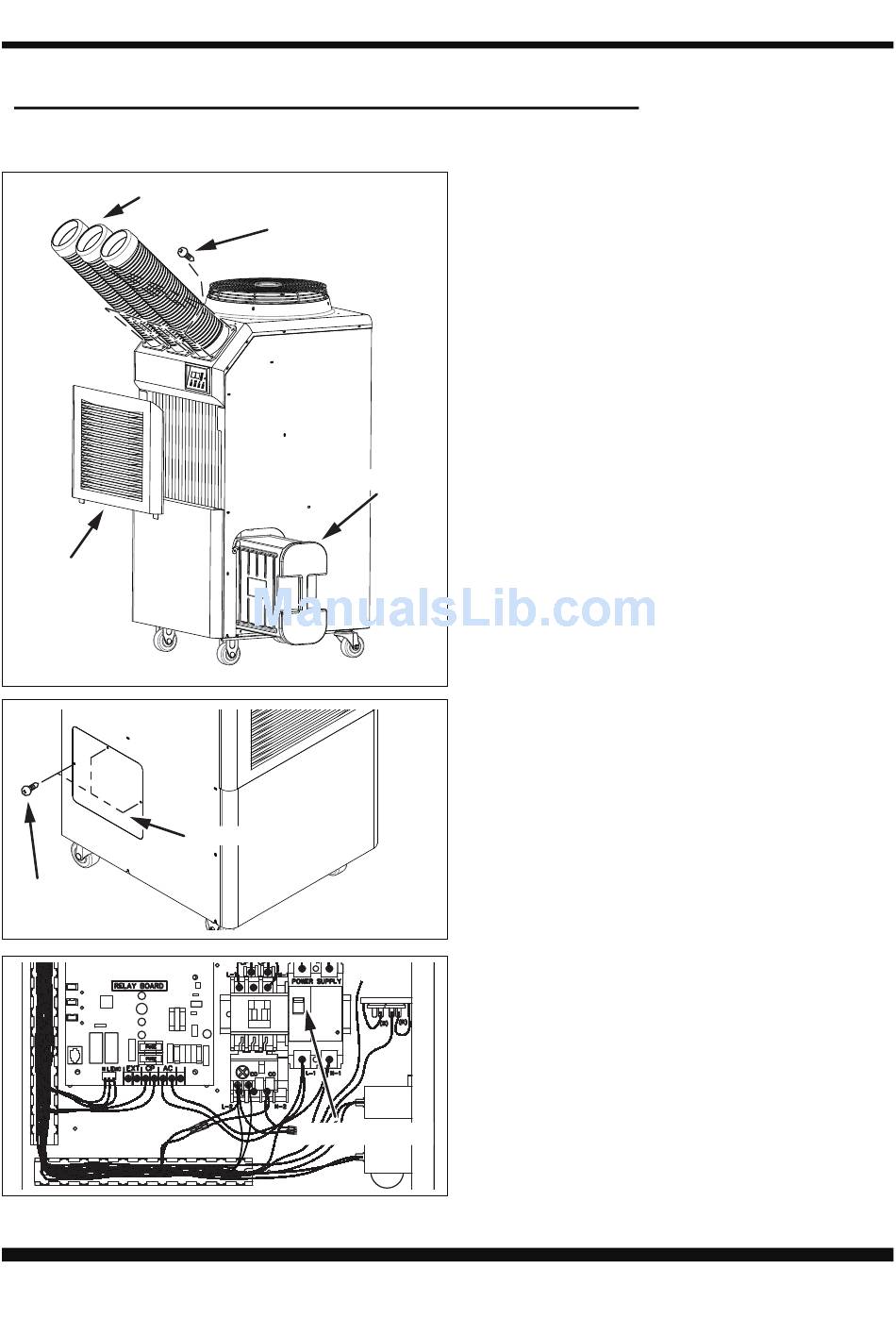

1) Remove the drain tank.
2) Remove two (2) support lines and
remove front panel.
3) Take out the twelve (12) screws, and
then remove the cooling air duct.
(XC-22A : eight (8) screws)
4) Take out the three (3) screws, and
then remove the service panel.
5) Off the circuit breaker.
(For safety)
