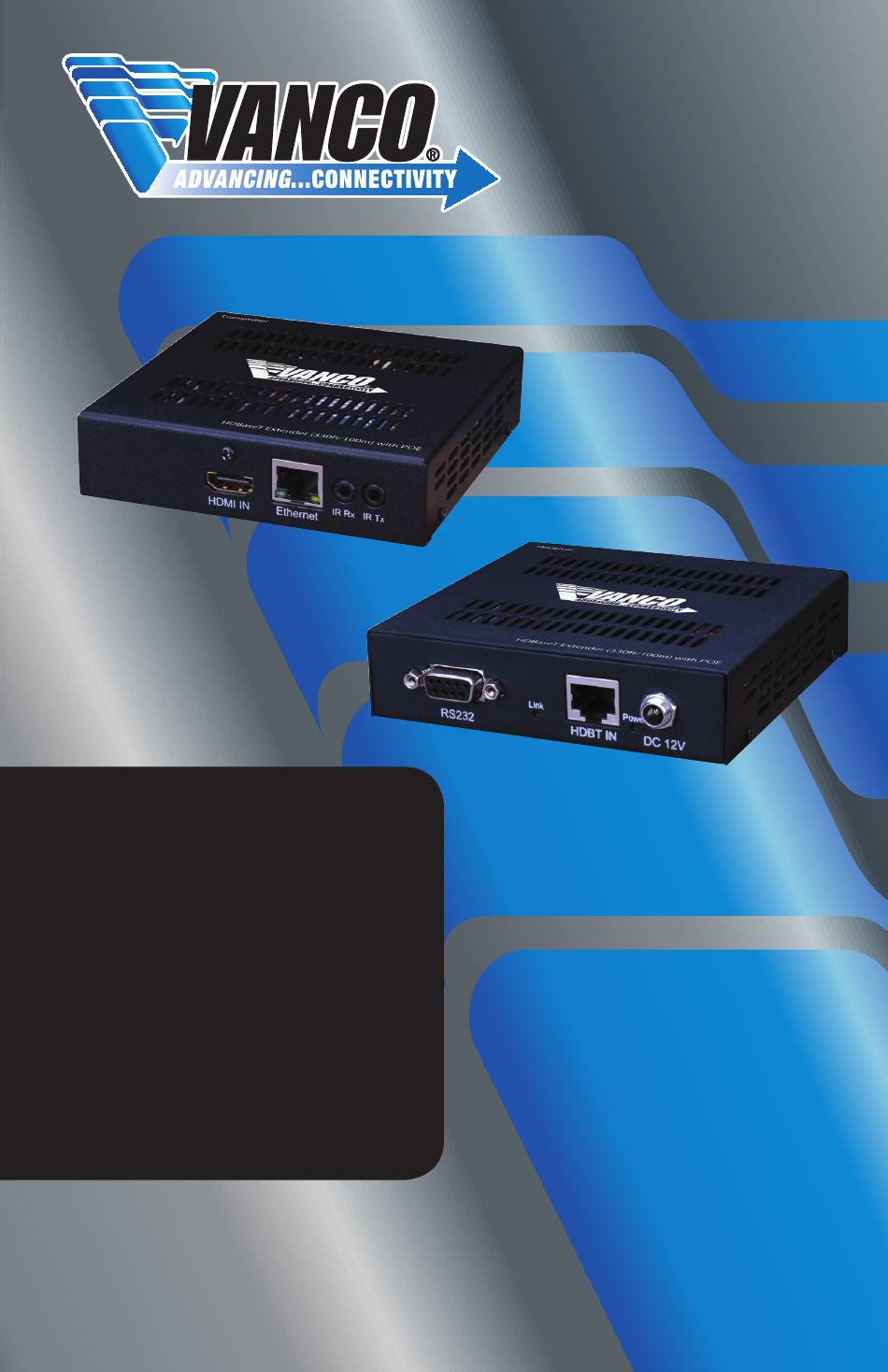

- Page 1 HDBaseT™ Extender (330ft/100m) Vanco Part Number: 280626 Technical Support www.vanco1.com • info@vanco1.com • 800-626-6445...
-
Page 2: Dear Customer
DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters. - Page 3 FEATURES The Vanco 280626 HDMI Extender over Single Cat5e/6 featuring HDBaseT 5-playTechnology extends HD audio and video, ethernet, bi-directional IR, RS-232, and Power over Ethernet (PoE) at a distance of up to 330ft/100m over a single Cat5e/6 cable. This set is also capable of 4K2K (2160p @ 24/30hz) resolution and up to a range of 230ft/70m.
-
Page 4: Specifications
PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: • (1) 280626 (Transmitter and Receiver) • (1) IR Receiver (RX) • (1) IR Transmitter (TX) • (1) DC 12V, 2A power supply... -
Page 5: Panel Descriptions

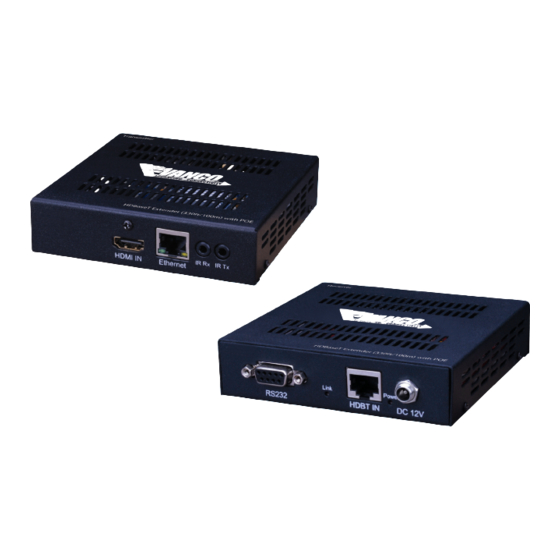

PANEL DESCRIPTIONS Transmitter Receiver 1718 1. HDMI input: Connect an HDMI cable from the source such as a Bluray player or Cable/Sat Receiver. 2. Ethernet port: Connect an Ethernet source such as a router to inject Ethernet into extender, this will output at Receiving unit. -
Page 6: Connect And Operate
CONNECT AND OPERATE 1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input on the Transmitting unit. 2. Connect a display such as an HDTV or HD Projector to the HDMI output on the Receiving unit. 3. - Page 7 To control the source: Plug IR Blaster into IR TX port of transmitter unit (280626-TX); place transmitter in front of the IR eye of the source. To control the display: Plug IR Blaster into IR TX port of receiver unit (280626-RX); place transmitter in front of the IR eye of the display.
- Page 8 IR RECEIVER (RX) To control the source: Plug IR Receiver into IR RX port of receiver unit (280626-RX); place receiver at or near display. To control the display: Plug IR Receiver into IR RX port of transmitter unit (280626-TX); place receiver in position where it is able to receive remote signals.
- Page 9 NOTICE 1. Vanco HDMI and Cat5e/6 cables are strongly recommended for use with this product to ensure best results. 2. Incorrect placement of IR Transmitter and Receiver may result in the failure of the IR extenders. Please check carefully before plugging in the IR extender to the respective IR sockets.
-
Page 10: Troubleshooting
4. If you are still encountering issues, attempt the “hot-plug” concept. With all of the HDMI cables disconnected, turn on the source and plug in the HDMI cable into it’s output, then power up the Vanco unit and plug the HDMI cable into it’s input, finally turn on the display and plug the HDMI cable from the receiver into it. -
Page 11: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. - Page 12 Vanco® International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
