Multiuser access and control of 16 or 32 computers/servers.
Hide thumbs Also See for ServSwitch KVM2016A:

Advertisement

Quick Links

ServSwitch
Multiuser access and control of 16 or 32
computers/servers.

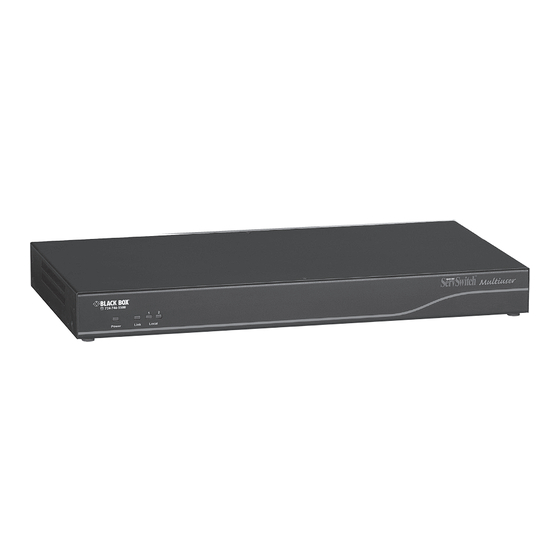

This high performance KVM switch enables multiuser access, control, and
management of multiple servers. With Black Box Server Access Modules
and CAT5 cabling, clutter in your data center is eliminated. And distance
can be extended to 100 feet.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
Support
724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,
Information
PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com
Multiuser User's Manual

BLACK BOX

June 2010
KVM2016A
KVM2032A
®
