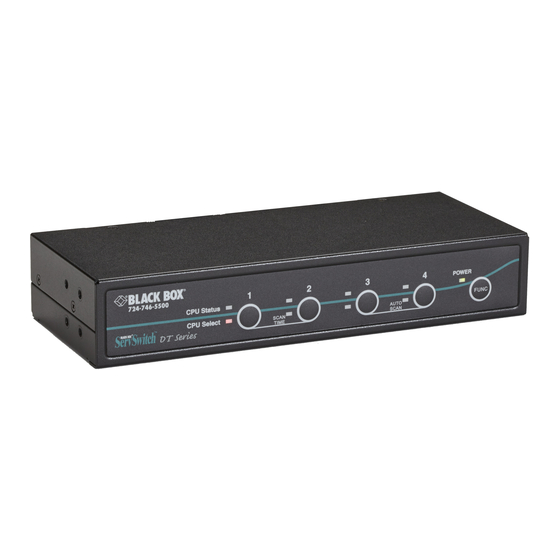

ServSwitch DT Series USB/DVI/Audio KVM Switches
Control up to two or four PCs, or G3/G4 Mac or Mac Pro computers
from a single console (USB keyboard, USB mouse, and DVI [Digital Visual
Interface] monitor, plus audio).
Share two peripherals between two or four computers.
Include a built-in hub.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) •
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
Support
724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,
Information
PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com

BLACK BOX

KV9612A
KV9614A
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ServSwitch KV9612A and is the answer not in the manual?

Questions and answers

Related Manuals for Black Box ServSwitch KV9612A

Summary of Contents for Black Box ServSwitch KV9612A

  • Page 1: Black Box

    Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) • Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax Support 724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, Information PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com...
  • Page 3 FCC and NOM Statements FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference...
  • Page 4 2- and 4-Port ServSwitch DT Series USB/DVI/Audio KVM Switches 5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc. 6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el fabricante.
  • Page 5 NOM Statement 17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación. 18. Servicio por personal calificado deberá ser provisto cuando: A: El cable de poder o el contacto ha sido dañado; u B: Objectos han caído o líquido ha sido derramado dentro del aparato;...
  • Page 6 2- and 4-Port ServSwitch DT Series USB/DVI/Audio KVM Switches TRADEMARKS USED IN THIS MANUAL Black Box, the Double Diamond logo, and ServSwitch are trademarks or regis- tered trademarks of BB Technologies, Inc. Linux is a registered trademark of Linus Torvalds.

  • Page 7: Table Of Contents

    Page 1. Specifications ....................6 2. Overview ....................7 Introduction ..................7 2.2 Features ....................7 2.3 Components ..................8 2.3.1 KV9612A Front Panel ............8 2.3.2 KV9612A Rear Panel .............9 2.3.3 KV9614A Front Panel ............10 2.3.4 KV9614A Back Panel ............11 2.4 What’s Included ................12 2.5 What You’ll Need to Supply ..............12...

  • Page 8: Specifications

    AutoScan, (1) function button Connectors: Both models: (1) Power; KV9612A: Console end: (1) DVI-I, (4) USB Type A, (2) 3.5-mm jacks for audio (speaker and microphone); Computer end: (2) DVI-I, (2) USB Type B, (4) 3.5-mm jacks for audio (speaker and microphone);...

  • Page 9: Overview

    Chapter 2: Overview 2. Overview 2.1 Introduction The 2- or 4-Port ServSwitch USB/DVI/Audio KVM Switch enables you to con- ™ trol up to two or four PCs, or G3/G4 Mac or Mac Pro computers from a single console (USB keyboard, USB mouse, and DVI [Digital Visual Interface] monitor, plus audio).

  • Page 10: Components

    2.3.1 KV9612A Front Panel Figure 2-1 shows the 2-Port ServSwitch DT Series front view. Table 2-1 describes the components numbered in the illustration. Figure 2-1. The 2-Port ServSwitch DT Series front-panel view. Table 2-1. KV9612A front panel components. Component Description Port selection button Press button to select a computer.

  • Page 11: Kv9612A Rear Panel

    2.3.2 KV9612A Rear Panel Figure 2-2 shows the 2-Port ServSwitch rear view. Table 2-2 describes the com- ponents numbered in the illustration. Figure 2-2. The 2-Port ServSwitch back-panel view. Table 2-2. KV9612A rear-panel components. Component Description Power connector Connects to a 9–12-VDC, 1.5-A power supply.

  • Page 12: Kv9614A Front Panel

    2- and 4-Port ServSwitch DT Series USB/DVI/Audio KVM Switches 2.3.3 KV9614A Front Panel Figure 2-3 shows the 4-Port ServSwitch DT Series front view. Table 2-3 describes the components numbered in the illustration. Figure 2-3. The 4-Port ServSwitch DT Series front-panel view. Table 2-3.

  • Page 13: Kv9614A Back Panel

    Chapter 2: Overview 2.3.4 KV9614A Rear Panel Figure 2-4 shows the 4-Port ServSwitch rear view. Table 2-4 describes the com- ponents numbered in the illustration. Figure 2-4. The 4-Port ServSwitch back-panel view. Table 2-4. KV9614A rear-panel components. Component Description Power connector Connects to a 9–12-VDC, 1.5-A power supply.

  • Page 14: What's Included

    • USB keyboard • USB mouse • KV9612A: 2-Port ServSwitch DT Series USB/DVI KVM Switch Cable (EHN900024U -0006, -0009, -0015): These cables connect to PCs that have USB and DVI connectors. The cables are available in 6-, 9-, and 15-foot (1.8-, 2.7-, and 4.5-m) versions.

  • Page 15: Installation

    2. In PNP and PCI SETUP, set PNP OS INSTALLED to YES and set USB IRQ to ENABLED. NOTE: The KV9612A and KV9614A are set to switch USB keyboard and mouse signals from one computer to another. If you plan to share other periph- erals such as a CCD camera, printer, or scanner, you must shut down the computer’s driver before switching to another computer.

  • Page 16: Hardware Installation

    3. Connect your USB peripherals (if present) to USB ports 1 and 2. Monitor Mouse Keyboard Microphone Speakers Figure 3-1. KV9612A: console keyboard, mouse, monitor, and audio connections. Page 14 724-746-5500 | blackbox.com...

  • Page 17: Connecting The Computers

    Chapter 3: Installation Monitor Mouse Keyboard Microphone Speakers Figure 3-2. KV9614A: console keyboard, mouse, monitor, and audio connections. NOTES: The monitor connected to the DVI-I port must be able to synchronize with the computer’s video signal. If you are uncertain about the moni- tor type, consult the monitor user’s manual.

  • Page 18: Initial Power On

    2- and 4-Port ServSwitch DT Series USB/DVI/Audio KVM Switches ServSwitch cable computer Figure 3-3. KV9612A: computer connection. ServSwitch cable computer Figure 3-4. KV9614A: computer connection. 3.2.3 Initial Power On After connecting the ServSwitch, power on the computers. The ServSwitch will get enough power to operate from the computers.

  • Page 19: Operation

    Chapter 4: Operation 4. Operation 4.1 Powering Up the System Once all cables have been connected and all computers have been powered on, the ServSwitch emulates mouse and keyboard signals on each port, allowing your computer to boot normally. The ServSwitch is now ready for use. 4.2 Selecting Computers Using Front-Panel Buttons You can instantly select any computer by pressing the port selection button(s) on the front panel.
  • Page 20 2- and 4-Port ServSwitch DT Series USB/DVI/Audio KVM Switches Table 4-1 (continued). Hotkey commands. Key Sequence Function Left-Ctrl + Left-Ctrl + F3 To adjust Scan Rate, this command sets the duration before switching to the next computer in AutoScan. The 4-Port ServSwitch DT Series generates 1 to 4 beeps, indicating a scan interval of 3, 8, 15, and 30 seconds respectively.

  • Page 21: Alternate Hotkey Commands

    Chapter 4: Operation NOTE: There are two options for USB Port Rule: ON and OFF. When set to ON, USB-Port selection follows computer selection. When set to OFF, USB-Port selection stops following USB port selection. NOTE: Make sure the USB device linking procedure has finished before switching to another computer.
  • Page 22 2- and 4-Port ServSwitch DT Series USB/DVI/Audio KVM Switches Press push button #4 one, two, three, or four times to adjust the selected port’s output emphasis. One beep = no pre-emphasis, two beeps = low pre- emphasis, three beeps = medium pre-emphasis, or four beeps = high pre- emphasis.

  • Page 23: Appendix. Troubleshooting

    Appendix: Troubleshooting Appendix. Troubleshooting A.1 Problems/Causes/Solutions Problem: The keyboard or mouse does not work. Cause #1: In AutoScan, the keyboard and mouse do not function. Solution #1: Press any front-panel button to select a computer, then use the keyboard and mouse. See Section 4.2. Cause #2: Too many keyboard or mouse drivers are installed.
  • Page 24 2- and 4-Port ServSwitch DT Series USB/DVI/Audio KVM Switches and try again. See Sections 4.2–4.4. Problem: The computer hangs up while switching. Cause: Initializing a device takes too much time. Solution #1: Wait at least five seconds before switching the computer for proper USB communication.

  • Page 25: Calling Black Box

    KVM Switch is malfunctioning, do not attempt to alter or repair the unit. It con- tains no user-serviceable parts. Contact Black Box at 724-746-5500; press 1, 2, 2. Before you do, make a record of the history of the problem. We will be able to...
  • Page 26 724-746-5500 or blackbox.com. About Black Box Black Box Network Services is your source for an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
