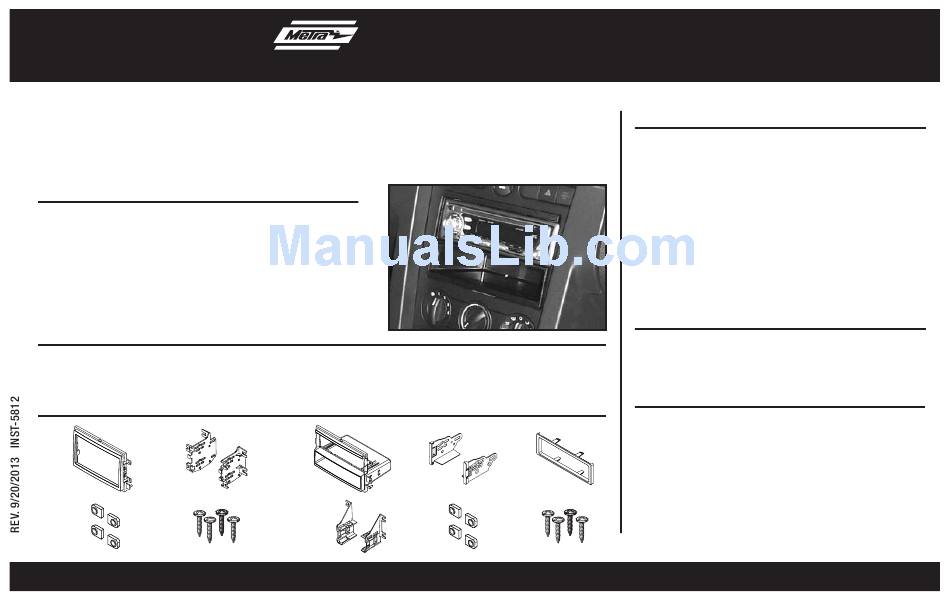

INSTALLATION INSTRUCTIONS FOR PART 95-5812 or 99-5812
Ford multi-kit 2004-up
95-5812 or 99-5812
KIT FEATURES
95-5812:
• Double DIN radio provision
• Stacked ISO DIN radio provision
99-5812:
• DIN radio provision with pocket
• ISO radio provision with pocket

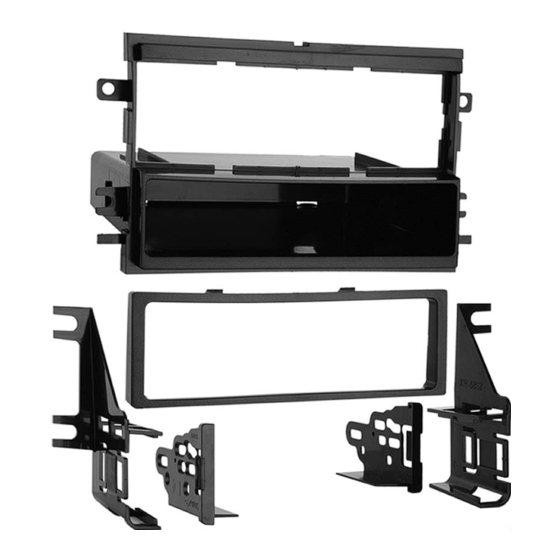

KIT COMPONENTS
95-5812: • A1) Radio housing (DDIN & stacked ISO DIN) • B1) Double DIN brackets
• C1) Spacers • D1) (4) Screws
99-5812: • A2) Radio housing • B2) ISO brackets • C2) Trim plate • D2) Side brackets
• E2) Spacers • F2) (4) Screws
A1
B1
C1
D1
METRA. The World's best kits.
APPLICATIONS
See application list inside
A2
B2
D2
E2
™
1-800-221-0932
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-5520 - Ford harness 2003-up
• 70-5521 - Ford amplified harness 2003-up
• 70-5522 - Ford sub harness 2003-up
• XSVI-5520 - NAV Ford interface 2006-up
Antenna Adapter:
• 40-CR10 - Chrysler/GM antenna adapter 2002-up
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket wrench
CAUTION: Metra recommends disconnecting the
C2
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
F2
NOTE: Refer to the instructions included with the
aftermarket radio.
metraonline.com
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION

Advertisement

Table of Contents
loading

Related Manuals for Metra Electronics 95-5812

Summary of Contents for Metra Electronics 95-5812

  • Page 1 TOOLS REQUIRED KIT COMPONENTS • Panel removal tool • Phillips screwdriver 95-5812: • A1) Radio housing (DDIN & stacked ISO DIN) • B1) Double DIN brackets • Socket wrench • C1) Spacers • D1) (4) Screws 99-5812: • A2) Radio housing • B2) ISO brackets • C2) Trim plate • D2) Side brackets •...
  • Page 2 INST-5812 Applications Table of Contents Ford Lincoln Dash Disassembly – Lincoln MKX* 2007-2010 ......8 Edge ......2007-2010 Mark LT ......2006-2008 – Ford E-Series 2009-up ......7 – Lincoln Navigator* 2007-up .....9 Expedition ..... 2007-up Factory navigation models only: – Ford Edge 2007-2010 ......3 –...

  • Page 3: Ford Edge 2007-2010

    Dash Disassembly Ford Edge 2007-2010/F-150 Ford Mustang 2005-2009 2004-2008/Expedition 2007-up, 1. Remove the small rectangular Lincoln Mark LT 2006-2008 shifter lever trim panel if equipped. (Figure A) 1. Unsnap and remove entire panel 2. Remove (4) 9/32” screws to remove 2.

  • Page 4: Ford Five Hundred 2005-2007

    Dash Disassembly Ford Mustang Ford Five-Hundred 2005-2007/Taurus 2008-2009, 2005-2009 Mercury Montego 2005-2007/Sable 2008-2009 1. Unclip and remove the small rectangular trim around shift lever. (Figure A) 2. Unclip and remove the entire panel (including cup holders) surrounding the shift lever. (Figure B) 3.

  • Page 5: Ford Freestyle 2005-2007

    Dash Disassembly Ford Fusion 2006-2009 Ford Freestyle 2005-2007 Mercury Milan 2006-2009 Ford Taurus X 2008-2009 1. Unsnap and remove entire panel 2. Remove (4) 9/32” screws to remove 1. Unclip and remove entire panel 2. Remove (4) 9/32” screws from radio surrounding the radio and climate the factory radio.

  • Page 6: Ford Freestar 2004-2007

    Dash Disassembly Ford Freestar 2004-2007 Ford Focus Mercury Monterey 2004-2007 2005-2007 1. Unsnap and remove entire panel 2. Remove (4) 9/32” screws to remove 1. Unsnap and remove entire panel 2. Remove (4) 9/32” screws to remove surrounding the radio and climate the factory radio.

  • Page 7: Ford Explorer 2006-2010

    Dash Disassembly Ford Explorer 2006-2010 Ford E-Series 2009-up, Ford Sport Trac 2007-2010 Ford F-Series Super Duty Mercury Mountaineer 2006-2010 2005-up 1. Open center console and remove (2) 1. Unsnap and Phillips screws then unclip and remove remove entire panel entire panel surrounding shifter. surrounding the (Figure A) radio and climate...

  • Page 8: Lincoln Mkx* 2007-2010

    Dash Disassembly Ford Super Duty F-250/F-350/ Lincoln MKX 2007-2010 (Factory navigation models only) F-450/F-550 2005-up, Ford Super Duty F-650/F-750 2011-up 1. Open center console lid and unclip and remove the center console trim panel 1. Unclip and remove the power 3.

  • Page 9: Lincoln Navigator* 2007-Up

    Dash Disassembly Lincoln Navigator 2007-up Ford Transit (Factory navigation models only) 2012-up 1. Unclip and remove the panel 1. Unclip the dash panel and remove. 2. Remove four screws securing the surrounding the radio and including radio to the dash and remove. surrounding the shifter.
  • Page 10 Kit Assembly 95-5812 Double DIN radio provision 1. For the Ford Freestar 2004-2007, Mercury Monterey 2004-2007, Ford Focus 2005-2007, and the Ford F Series Super Duty 2005-up: Do not cut the rear mounting tabs from the double DIN brackets. If your vehicle is not listed above move to step 2.
  • Page 11 Kit Assembly 95-5812 Stacked ISO DIN radio provision 1. For the Ford Freestar 2004-2007, Mercury Monterey 2004-2007, Ford Focus 2005-2007, and the Ford F Series Super Duty 2005-up, slide the included brackets onto the sides of the radio housings pocket from the back of the housing forward.

  • Page 12: Din Radio Provision With Pocket

    Kit Assembly 99-5812 DIN radio provision with pocket 1. For the Ford Freestar 2004-2007, Mercury Monterey 2004-2007, Ford Focus 2005-2007, and the Ford F Series Super Duty 2005-up, slide the included brackets onto the sides of the radio housings pocket from the back of the housing forward.

  • Page 13: Iso Radio Provision With Pocket

    Kit Assembly 99-5812 ISO radio provision with pocket 1. For the Ford Freestar 2004-2007, Mercury Monterey 2004-2007, Ford Focus 2005-2007, and the Ford F Series Super Duty 2005-up, slide the included brackets onto the sides of the radio housings pocket from the back of the housing forward.
  • Page 14 Notes...
  • Page 15 Notes...
  • Page 16 INSTALLATION INSTRUCTIONS FOR PART 95-5812 or 99-5812 NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
  • Page 17 COmPONENtES dEL kIt • Herramienta de remoción de panel 95-5812: • A1) Alojamiento del radio (unidades DIN dobles y DIN ISO apiladas) • Destornillador Phillips • Llave de tubo • B1) Soportes DIN dobles • C1) Espaciadores • D1) (4) Tornillos 99-5812: •...
  • Page 18 INST-5812 Aplicaciones Indice Ford Lincoln Desmontaje del tablero – Lincoln Mark LT 2006-2008 .....3 Edge ......2007-2010 Mark LT ......2006-2008 – Ford E-Series 2009 y más recientes ..7 – Lincoln MKX* 2007-2010 ......8 Expedition ....2007 y mas Modelos de fábrica –...
  • Page 19 Desmontaje del tablero Ford Edge 2007-2010/F-150 Ford Mustang 2005-2009 2004-2008/Expedition 2007 y más 1. Retire el panel de terminación recientes, Lincoln Mark LT 2006-2008 pequeño rectangular de la palanca de velocidades, si corresponde. (Figura A) 1. Quite a presión y retire todo el panel 2.
  • Page 20 Desmontaje del tablero Ford Mustang Ford Five-Hundred 2005-2007/Taurus 2008-2009, 2005-2009 Mercury Montego 2005-2007/Sable 2008-2009 1. Desenganche y retire la terminación pequeña rectangular que rodea la palanca de velocidades. (Figura A) 2. Desenganche y retire todo el panel (incluidos los portavasos) que rodean la palanca de velocidades.
  • Page 21 Desmontaje del tablero Ford Fusion 2006-2009 Ford Freestyle 2005-2007 Mercury Milan 2006-2009 Ford Taurus X 2008-2009 1. Quite a presión y retire todo el panel 2. Retire (4) tornillos de 9/32 in para 1. Unclip and remove entire panel 2. Remove (4) 9/32” screws from radio que rodea el radio y los controles de retirar el radio de fábrica.
  • Page 22 Desmontaje del tablero Ford Freestar 2004-2007 Ford Focus Mercury Monterey 2004-2007 2005-2007 1. Quite a presión y retire todo el panel 2. Retire (4) tornillos de 9/32 in para 1. Quite a presión y retire todo el panel 2. Retire (4) tornillos de 9/32 in para que rodea el radio y los controles de retirar el radio de fábrica.
  • Page 23 Desmontaje del tablero Ford Explorer 2006-2010 Ford E-Series 2009 y más recientes, Ford Sport Trac 2007-2010 Ford F-Series Super Duty Mercury Mountaineer 2006-2010 2005 y más recientes 1. Abra la consola central y retire (2) 1. Quite a presión y tornillos Phillips y, luego, desenganche y retire todo el panel retire todo el panel que rodea la palanca...
  • Page 24 Desmontaje del tablero Ford Super Duty F-250/F-350/ Lincoln MKX 2007-2010 (Modelos de fábrica de navegación sólo) F-450/F-550 2005 y mas, Ford Super Duty F-650/F-750 2011 y mas 1. Abra la tapa de la consola central, y desenganche y retire el panel de 1.
  • Page 25 Desmontaje del tablero Lincoln Navigator 2007 y más recientes Ford Transit (Modelos de fábrica de navegación sólo) 2012 y más recientes 1. Desenganche y retire el panel que 3. Desenganche y retire todo el panel 1. Suelte el panel de instrumentos y 2.
  • Page 26 Ensamble del kit 95-5812 Provisión de radio doble DIN 1. Para los modelos Ford Freestar 2004-2007, Mercury Monterey 2004-2007, Ford Focus 2005-2007, and the Ford F Series Super Duty 2005 y más recientes: No corte las lengüetas de montaje traseros de los soportes de doble DIN.
  • Page 27 Ensamble del kit 95-5812 Provisión de radio DIN ISO de eje 1. Para los modelos Ford Freestar 2004-2007, Mercury Monterey 2004-2007, Ford Focus 2005- 2007, and the Ford F Series Super Duty 2005 y más recientes, deslice los soportes en los lados de alojamiento del radio bolliso de la parte posterior de la alojamiento, hacia delante.
  • Page 28 Ensamble del kit 99-5812 Provisión de radio DIN con bolsillo 1. Para los modelos Ford Freestar 2004-2007, Mercury Monterey 2004-2007, Ford Focus 2005-2007, and the Ford F Series Super Duty 2005 y más recientes, deslice los soportes en los lados de alojamiento del radio bolliso de la parte posterior de la alojamiento, hacia delante.
  • Page 29 Ensamble del kit 99-5812 Provisión de radio ISO con bolsillo 1. Para los modelos Ford Freestar 2004-2007, Mercury Monterey 2004-2007, Ford Focus 2005-2007, and the Ford F Series Super Duty 2005 y más recientes, deslice los soportes en los lados de alojamiento del radio bolliso de la parte posterior de la alojamiento, hacia delante.
  • Page 30 Notes...
  • Page 31 Notes...
  • Page 32 INSTALLATION INSTRUCTIONS FOR PART 95-5812 o 99-5812 EL CONOCIMIENTO ES PODER Mejore sus habilidades de instalación y NOWLEDGE IS OWER fabricación inscribiéndose en la escuela de Enhance your installation and fabrication skills by enrolling in the most recognized and respected dispositivos electrónicos móviles más reconocida...
