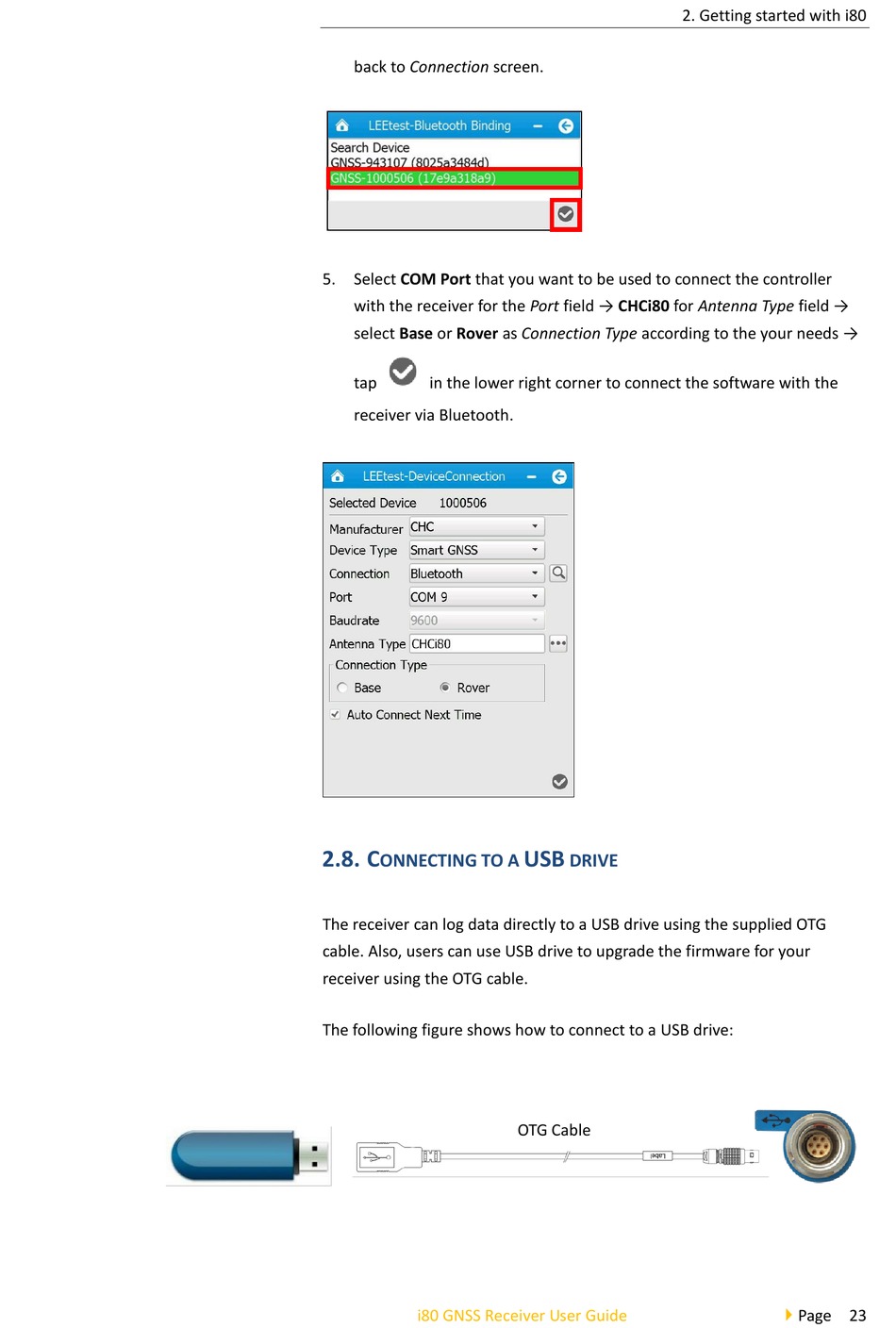

Connecting To A Usb Drive - CHC i80 User Manual

back to Connection screen.
5. Select COM Port that you want to be used to connect the controller
with the receiver for the Port field → CHCi80 for Antenna Type field →
select Base or Rover as Connection Type according to the your needs →
tap in the lower right corner to connect the software with the
receiver via Bluetooth.
2.8. C
ONNECTING TO A
The receiver can log data directly to a USB drive using the supplied OTG
cable. Also, users can use USB drive to upgrade the firmware for your
receiver using the OTG cable.
The following figure shows how to connect to a USB drive:
i80 GNSS Receiver User Guide
2. Getting started with i80
USB
DRIVE
OTG Cable

Page 23
