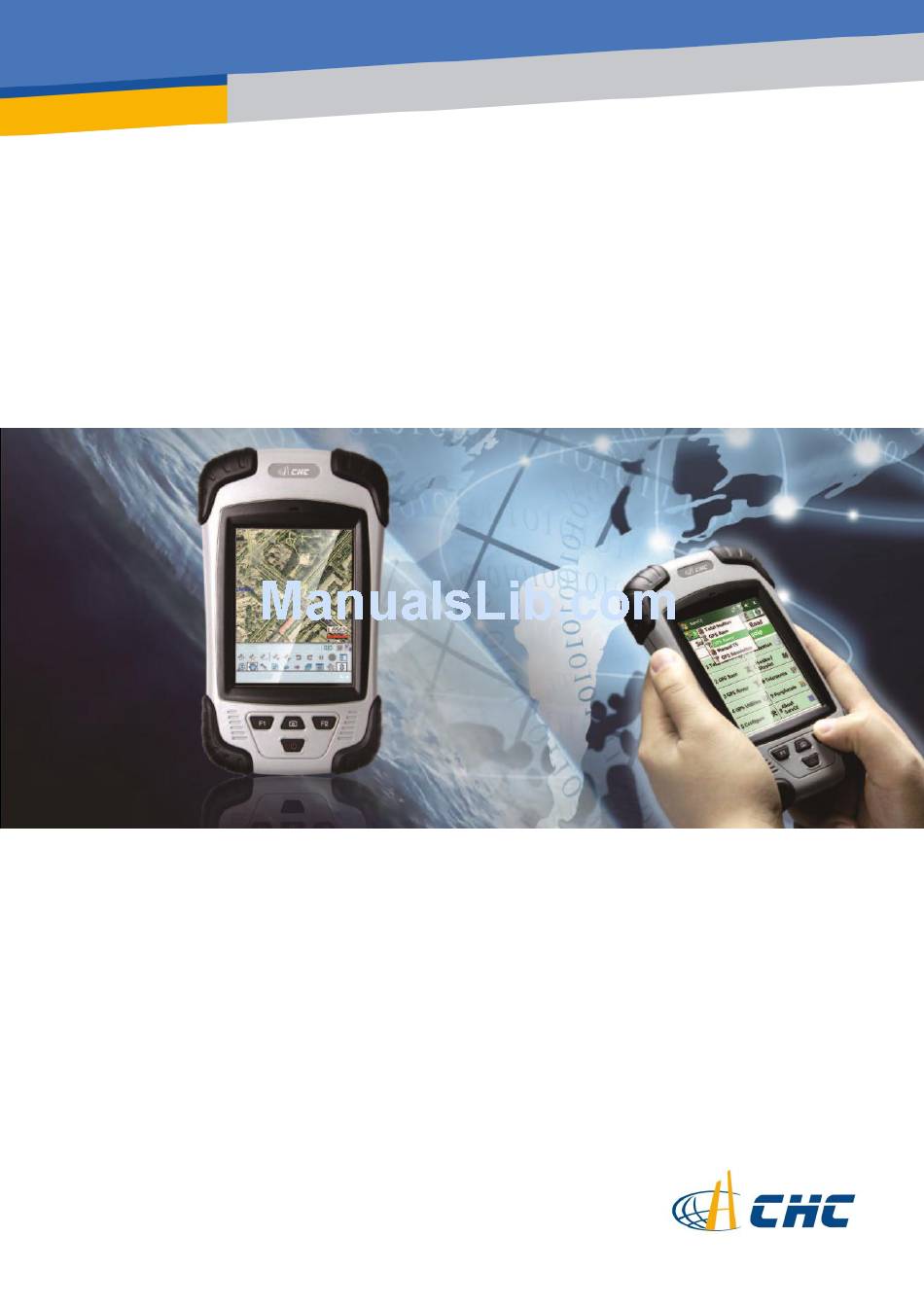

  • Page 1 LT30 | G ETTING TARTED UIDE GPS/GIS H ANDHELD ONTROLLER...
  • Page 2 Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LT30 Getting Started Guide – Revision 1.0 March 2012...

  • Page 3: Table Of Contents

    Table of Contents Introduction ............................. 1 1.1. Technical Assistance ......................1 1.2. Your Comments ........................1 Overview ............................2 2.1. Features ..........................2 2.2. Specifications ........................2 Description ............................4 First-Time Use ..........................6 4.1. Inserting battery, SD card and SIM card ................6 4.2.

  • Page 4: Introduction

    1. I NTRODUCTION Thank you for choosing LT30 GPS handheld computer. This Getting Started Guide will provide useful information about your receiver. It will also guide you through your first steps of using LT30 in the field. 1.1. T ECHNICAL...

  • Page 5: Overview

    VERVIEW 2.1. F EATURES LT30 is a handheld GPS receiver and GIS data collector that incorporate an SBAS-enabled, high-sensitivity GPS receiver as well as Microsoft Windows Mobile® 6.1 operating system. LT30 comes in a rugged design suitable for all your mapping applications and handheld computer use.
  • Page 6 Shock : survive a 1 meters drop onto concrete Electrical Li-ion battery capacity : 3000 mAh Battery life : up to 20 hours Package content LT30 GPS handheld Li-Ion battery USB data cable AC adapter Hand strap with stylus Quick start guide ...

  • Page 7: Description

    3. D ESCRIPTION Front view  Page 4...
  • Page 8 Rear view  Page 5...

  • Page 9: First-Time Use

    4. F IRST 4.1. I , SD NSERTING BATTERY CARD AND CARD  Lift the latch of the battery door and turn it counter-clockwise to the unlock position (vertical). Then, detach the door from the device. See Figure 1. Figure 1 ...

  • Page 10: Charging The Battery

    ONNECT TO FFICE OMPUTER  To install software or access to the LT30, you can use your office computer and a Microsoft ActiveSync connection to transfer the installation files from the computer to LT30.  This means Microsoft Mobile Center or ActiveSync should first be installed on your computer.

  • Page 11: Installing Software

    Select and click on the installation file to install, or if the installation file runs only on LT30, please copy the file to LT30, double click it to install. You can also copy files to LT30’s relevant location to save it.

  • Page 12: Establishing Wireless Connection (Bluetooth /Wi-Fi)

    4.8. E STABLISHING IRELESS CONNECTION LUETOOTH  Using Bluetooth 1） Go to StartSettingsConnectionsWireless Manager. 2） Click on the icon on the right side of Bluetooth to open Bluetooth function. 3） Go to StartSettingsConnectionsBluetooth. 4） Click Add new device, the system will search for Bluetooth Devices.

  • Page 13: Frequent Settings

    5. F REQUENT ETTINGS  Stylus Setting Go to StartSettingsSystemScreen Click Align Screen to start the stylus setting.  Backlight Setting Go to StartSettingsSystem Backlight, Adjust settings according to your requirements.  Power Setting Go to StartSettingsSystemPowerAdvanced, Adjust settings according to your requirements. ...
  • Page 14 CHC - Shanghai HuaCE Navigation T echnology Ltd. Building 35, n° 680 Guiping Road 200233 Shanghai – China T el : +86 21 542 60 273 Fax : +86 21 649 50 963 Email : sales@chcnav.com | www.chcnav.com  Page 11...
