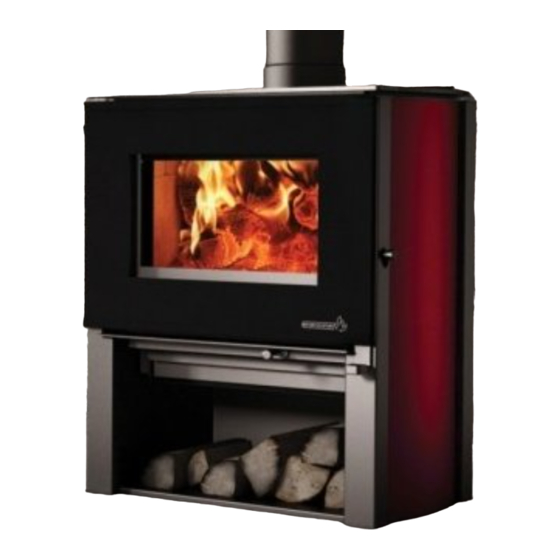

Enerzone Destination 1.6 Installation And Operation Manual
Hide thumbs
Also See for Destination 1.6:
- Installation and operation manual (60 pages) ,
- Installation and operation manual (56 pages)
Table of Contents
Advertisement
Quick Links
INSTALLATION
AND OPERATION
MANUAL
Destination 1.6
(Model EB00038)
Distributed by:
My Fireplace Australia Pty Limited
Factory 2, 5-7 Hogan Court, Pakenham,
Victoria 3810
Phone number 03 59 415 008
www.myfireplaceaustralia.com.au
READ AND KEEP THIS MANUAL FOR REFERENCE
This manual is available for free download on the distributor's web site. It is a copyrighted
document. Re-sale is strictly prohibited. The distributor may update this manual from time to time
and cannot be responsible for problems, injuries, or damages arising out of the use of information
contained in any manual obtained from unauthorized sources.
45839A
Printed in Canada
27-04-2016
Advertisement
Table of Contents
Related Manuals for Enerzone Destination 1.6
Summary of Contents for Enerzone Destination 1.6
- Page 1 INSTALLATION AND OPERATION MANUAL Destination 1.6 (Model EB00038) Distributed by: My Fireplace Australia Pty Limited Factory 2, 5-7 Hogan Court, Pakenham, Victoria 3810 Phone number 03 59 415 008 www.myfireplaceaustralia.com.au READ AND KEEP THIS MANUAL FOR REFERENCE This manual is available for free download on the distributor’s web site. It is a copyrighted document.
- Page 2 Consult your local city, borough or shire council about restrictions and installations requirements in your area and the need to obtain a permit. KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE. Destination 1.6 Installation and Operation Manual...
-
Page 3: Table Of Contents
Zone Heating and How to Make it Work for You ..............10 The Benefits of Low Emissions and High Efficiency ............. 10 Enerzone’s Commitment to You and the Environment ............10 2.4.1 What is Your New Wood fire Made Of? ................10 Fuel .................... - Page 4 Why the Flue System Should Penetrate the Highest Heated Space ........ 37 Installing the flue Connector ....................38 Appendix 1: Installing the Optional Decorative Panels ......40 Appendix 2: Installing the Optional Fresh Air Intake ......43 Destination 1.6 Installation and Operation Manual...
- Page 5 Keep your sales invoice. We also recommend that you register your warranty online at www.myfireplaceaustralia.com.au Registering your warranty online will help us track rapidly the information we need on your wood fire. Destination 1.6 Installation and Operation Manual...
-
Page 6: Part A - Operation And Maintenance
SALT WATER DRIFTWOOD, OR o RAILROAD TIES. • DO NOT ELEVATE THE FIRE BY USING A GRATE IN THIS WOOD FIRE. • THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN ACCORDANCE WITH THESE INSTRUCTIONS. Destination 1.6 Installation and Operation Manual... -
Page 7: General Information
* Burn time and heating capacity may vary subject to location in home, flue system draft, flue system diameter, locality, heat loss factors, climate, fuels and other variables. ** Sideways: through the door you see the sides of the logs. Destination 1.6 Installation and Operation Manual... - Page 8 Destination 1.6 Installation and Operation Manual...
- Page 9 Destination 1.6 Installation and Operation Manual...
-
Page 10: Zone Heating And How To Make It Work For You
2.2 ZONE HEATING AND HOW TO MAKE IT WORK FOR YOU Your new Enerzone Destination 1.6 wood fire is a space heater, which means it is intended to heat the area it is installed in, as well as spaces that connect to that area, although to a lower temperature. -
Page 11: Fuel
• FINE PAPER, COLORED PAPER OR CARDBOARD, • SALT WATER DRIFTWOOD, • MANUFACTURED LOGS CONTAINING WAX OR CHEMICAL ADDITIVES, • RAILROAD TIES, • LIQUIDS SUCH AS KEROSCENE OR DIESEL FUEL TO START A FIRE. Destination 1.6 Installation and Operation Manual... -
Page 12: How To Prepare Or Buy Good Firewood
Even when dried, unsplit logs are difficult to ignite because they don’t have the sharp edges where the flames first catch. Logs as small as 75 mm should be split to encourage drying. Destination 1.6 Installation and Operation Manual... -
Page 13: How To Dry Firewood
• firewood that is ready to burn has a moisture content between15 and 20% by weight and will allow your wood fire to produce its highest possible efficiency Destination 1.6 Installation and Operation Manual... -
Page 14: Where To Store Wood
• burn a piece; wet wood hisses and sizzles in the fire and dry wood does not. You could buy a wood moisture meter to test your firewood. Destination 1.6 Installation and Operation Manual... -
Page 15: Manufactured Logs
The smell of curing paint does not disappear until you have burned one or two very hot fires. Destination 1.6 Installation and Operation Manual... -
Page 16: Lighting Fires
(50 mm to 75 mm in dia.) on the base logs at right angles (log cabin style). Now place about 10 pieces of finely split kindling on the second layer at right angles. Destination 1.6 Installation and Operation Manual... -
Page 17: Two Parallel Logs
Each load of wood should provide several hours of heating. The size of each load can be matched to the amount of heat needed. Destination 1.6 Installation and Operation Manual... -
Page 18: Ash Removal
Remove ash first, and then rake charcoal towards the front of the firebox before loading so that it will ignite the new load. Destination 1.6 Installation and Operation Manual... -
Page 19: Firing Each New Load Hot
With good fuel and correct air control use, the flames should slow down, but should stay large and steady, even as the air supply is reduced. Destination 1.6 Installation and Operation Manual... -
Page 20: Building Different Fires For Different Needs
• • the amount of wood loaded, the climate zone you live in, and • • the species of wood you burn, the time of year. • the wood moisture content, Destination 1.6 Installation and Operation Manual... -
Page 21: Maintaining Your Wood Heating System
This indicates that the fire has been smoky and some of the smoke has condensed on the glass. When the weather is mild, you may Destination 1.6 Installation and Operation Manual... -
Page 22: Door Adjustment
In order for your wood fire to burn at its best efficiency, the door must provide a perfect seal with the firebox. Therefore, the gasket should be inspected periodically making sure to obtain an air tight fit. Airtightness can be improved with a simple latch mechanism adjustment. 1. Open the door. Destination 1.6 Installation and Operation Manual... - Page 23 2. Unscrew screw (B) and remove the handle (A). 3. Unscrew and remove the pillar (C) and (D). Destination 1.6 Installation and Operation Manual...
-
Page 24: Replacing The Door Gasket
If the paper slips out easily anywhere, it is time to replace the gasket. Use the correct replacement gasket that you can purchase from your retailer. The diameter and density of the gasket is important to getting a good seal. Destination 1.6 Installation and Operation Manual... -
Page 25: Replacing The Glass Gasket And/Or The Glass
2. Unscrew and remove the top glass retainer (A) and the bottom glass retainer (B) held in place by 10x screws (C). 3. Remove the glass (D) and the silver nameplate (E). Repeat the steps in reverse to install the new glass. Destination 1.6 Installation and Operation Manual... - Page 26 Do not stretch the gasket as you place it. Now pinch the gasket to the glass in a U shape. Cut exceeding gasket, if any. Do the same for the other side. Destination 1.6 Installation and Operation Manual...
-
Page 27: Cleaning And Painting The Wood Fire
For best results, use the same paint that was originally used on the wood fire, which is available in spray cans. See your dealer for details. Destination 1.6 Installation and Operation Manual... -
Page 28: Flue And Flue System Maintenance
If so, have the damaged ones replaced. Check the firebrick for damage at least annually and replace any broken or damaged ones with new ones. Inspection and cleaning of the flue system is facilitated by the removable baffle. Destination 1.6 Installation and Operation Manual... -
Page 29: Part B - Installation
DO NOT CONNECT TO OR USE IN CONJUNCTION WITH ANY AIR DISTRIBUTION DUCTWORK UNLESS SPECIFICALLY APPROVED FOR SUCH INSTALLATION. • DO NOT CONNECT THIS UNIT TO A FLUE OR FLUE SYSTEM SERVING ANOTHER APPLIANCE. Destination 1.6 Installation and Operation Manual... -
Page 30: Regulations Covering Wood Fire Installation
6.2 REGULATIONS COVERING WOOD FIRE INSTALLATION IT IS RECOMMENDED THAT THE INSTALLATION OF YOUR ENERZONE WOOD FIRE BE CARRIED OUT BY A QUALIFIED SPECIALIST INSTALLER. IF ANY ELECTRICAL WORK IS REQUIRED, IT MUST BE CARRIED OUT BY A LICENSED ELECTRICIAN. -
Page 31: Clearances To Heat-Sensitive Materials
Bottom of appliance to ceiling height must be at least 2,400 mm in all cases. The clearance between the flue and a wall are valid only for vertical walls and for vertical flue. Destination 1.6 Installation and Operation Manual... -
Page 32: Floor Protector
**The floor protector shall extend not less than 200 mm from each side of any ash removal or fuel loading openings unless the floor protector forms an abutment with a wall or heat shield at a lesser distance. Destination 1.6 Installation and Operation Manual... -
Page 33: Reducing Wall And Ceiling Clearances Safely
1- Masonry may be used as a heat shield material. 2- Where heat shields are used to reduce appliance clearance dimensions, additional flue shielding may also be required. Refer to AS/NZS 2918:2001. 3- Non standard installations – Refer to AS/NZS 2918:2001 for guidance. Destination 1.6 Installation and Operation Manual... -
Page 34: The Flue System
Your wood fire will provide optimum efficiency and performance when connected to a 150 mm diameter flue system. The cross-sectional area of the flue shall be within 20 percent of the flue collar opening Destination 1.6 Installation and Operation Manual... -
Page 35: Factory Built Insulated Flue Kits
150 mm unless the flue system is straight and exceeds 8 m in height. When passing through a combustible wall, the use of an insulated listed thimble is required. Destination 1.6 Installation and Operation Manual... -
Page 36: Minimum Flue System Height
There are two guidelines to follow. First, the flue system should be installed up through the heated space of the house, not out and up an outside wall. Second, the flue system should penetrate the top of the building at or near the highest heated space. Destination 1.6 Installation and Operation Manual... -
Page 37: Why Inside Flue Systems Are Preferred
Even the finest wood fire will not work well when connected to this flue system. Destination 1.6 Installation and Operation Manual... -
Page 38: Installing The Flue Connector
They are also more stable and easier to maintain than assemblies with elbows. Horizontal runs of flue should be avoided where possible because they reduce flue system draft. Use 45 degree elbows where possible, instead of 90 degree elbows. Destination 1.6 Installation and Operation Manual... - Page 39 A straight flue offers the least restriction to gas flow and results in stronger draft. Straight assemblies also need less maintenance because there are no corners to collect creosote. The flue must be in good condition. Destination 1.6 Installation and Operation Manual...
-
Page 40: Appendix 1: Installing The Optional Decorative Panels
OTHERWISE IT WILL STICK TO THE PANNEL DURING THE FIRST FIRE AND WON’T BE REMOVABLE. install the decorative panels follow the steps below: 1. Open the door. 2. Unscrew the screw (B) and remove the handle (A). 3. Unscrew and remove the pillars (C) and (D). Destination 1.6 Installation and Operation Manual... - Page 41 4. Install the decorative side panel (E) 5. Reinstall the pillars (C) and (D) Destination 1.6 Installation and Operation Manual...
- Page 42 6. Reinstall the handle (A) with the screw (B) Follow steps 2-3-4 for the left side decorative panel. Destination 1.6 Installation and Operation Manual...
-
Page 43: Appendix 2: Installing The Optional Fresh Air Intake
(B) – AC02090, INSULATED FRESH AIR INTAKE PIPE (1.52 M LENGTH / 127 MM DIAMETER). (1x) (C) – 49028, 127 MM WHITE INTAKE CAP. (1x) You can purchase the above parts through your Enerzone dealer. Destination 1.6 Installation and Operation Manual... -
Page 44: Appendix 3: Installation And Use Of Blower And Thermodisc
CAUTION: ENSURE THAT THE BLOWER’S POWER CORD IS NOT IN CONTACT WITH ANY SURFACE OF THE WOOD FIRE TO PREVENT ELECTRICAL SHOCK OR FIRE DAMAGE. DO NOT RUN THE POWER CORD BENEATH THE WOOD FIRE. Destination 1.6 Installation and Operation Manual... -
Page 45: Appendix 4: Installation Of Secondary Air Tubes And Baffle
Make sure notch reaches the end of the key way. 3- Repeat step 1 and 2 for the other secondary air tubes. 4- To remove the tubes use the above steps in reverse order. Destination 1.6 Installation and Operation Manual... - Page 46 Type of tube Front ► 30 holes of 3.55 mm Destination 1.6 Middle front ► 30 holes of 3.8 mm Middle rear ► 30 holes of 3.8 mm Rear ► 20 holes of 3.25 mm Destination 1.6 Installation and Operation Manual...
-
Page 47: Appendix 5: Exploded Diagram And Parts List
APPENDIX 5: EXPLODED DIAGRAM AND PARTS LIST Destination 1.6 Installation and Operation Manual... - Page 48 Never use substitute materials. Use of non-approved parts can result in poor performance and safety hazards. Item Desciption 23057 ENERZONE REPLACEMENT GLASS 23 3/8'' X 17'' AC06400 3/4" (FLAT) X 6' BLACK SELF-ADHESIVE GLASS GASKET AC06950 WHITE SELF-ADHESIVE GASKET 1'' X 1/8'' X 9'...
- Page 49 3" X 9" X 1 1/4'' REFRACTORY BRICK PL54512 FRONT SECONDARY AIR TUBE PL54728 MIDDLE FRONT SECONDARY AIR TUBE PL54728 MIDDLE REAR SECONDARY AIR TUBE PL54730 REAR SECONDARY AIR TUBE 21396 BAFFLE C-CAST BOARD (17-1/8'' X 9-3/4'' X 1-1/4'') Destination 1.6 Installation and Operation Manual...
-
Page 50: Enerzone Product Warranty
(with each of the below periods commencing on the date the Enerzone product was purchased by you as a brand new product from a retailer located in Australia): WARRANTY APPLICATION... - Page 51 Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. Enerzone products are designed and supplied for normal domestic use. We will not be liable to you under this warranty for business loss or damage of any kind whatsoever.
