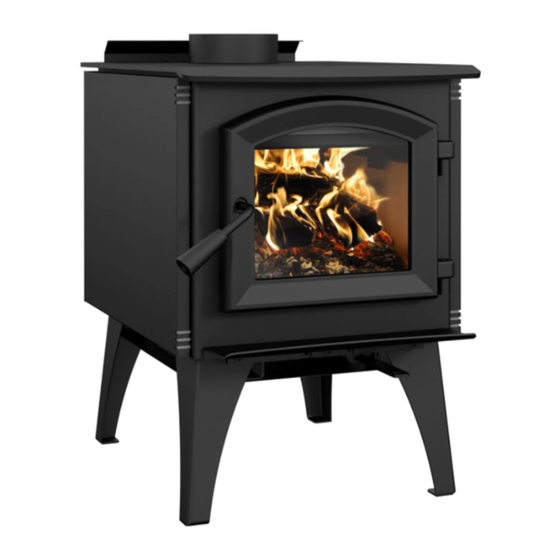

SOLUTION 1.4
(EB00061 model)
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS
IN LOCAL AREA.
READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD STOVE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
READ AND KEEP THIS MANUAL FOR REFERENCE
Printed in Canada
Wood Stove
Owner's Manual
Part 2 of 2
INSTALLATION AND OPERATION
US Environmental Protection Agency
phase II certified wood stove compliant
with 2020 cord wood standard
Safety tested according to ULC S627,
UL 1482 and UL 737 standards by an
REQUIREMENTS
accredited laboratory.
MOBILE
HOME
46263_IA
2022-09-07
Advertisement
Table of Contents
Related Manuals for Enerzone SOLUTION 1.4
Summary of Contents for Enerzone SOLUTION 1.4
- Page 1 Wood Stove Owner's Manual Part 2 of 2 INSTALLATION AND OPERATION SOLUTION 1.4 REQUIREMENTS (EB00061 model) US Environmental Protection Agency phase II certified wood stove compliant with 2020 cord wood standard Safety tested according to ULC S627, UL 1482 and UL 737 standards by an accredited laboratory.
- Page 2 If it can not be provided, the warranty period will be determined by the date of manufacture of the product. It is also highly recommended to register the warranty online at https://www.enerzone-intl.com/en/warranty/warranty-registration/ Registering the warranty will help to quickly find the information needed on the unit.
-
Page 3: Table Of Contents
6.6 Mobile Home Installation ....................28 7. Maintenance/Parts Replacement ..................29 7.1 Replacement ........................29 7.2 Gasket ..........................30 7.3 Door ..........................30 8. Exploded Diagram and Parts List ..................33 ENERZONE LIMITED LIFETIME WARRANTY ................36 Installation and Operation Requirements - Solution 1.4 Page 3... -
Page 4: Certification Plate
1. CERTIFICATION PLATE Page 4 Installation and Operation Requirements - Solution 1.4... -
Page 5: General Information
Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and ASTM E3053-17 based on the ALT-125 sent by EPA on February 28 , 2018. Carbon monoxide. Installation and Operation Requirements - Solution 1.4 Page 5... -
Page 6: Specifications
Z240 MH standard. Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and draft ASTM WK47329-14. Based on ALT-125 sent by EPA on February 28th, 2018. Page 6 Installation and Operation Requirements - Solution 1.4... -
Page 7: Dimensions
153mm Figure 1: Top View 32 1/4" 819mm 27 7/8" 709mm 22 7/8" 580mm 10 1/4" 260mm OPTION 21" 17 7/8" 532mm 454mm Figure 2: Front View Figure 3: Side View Installation and Operation Requirements - Solution 1.4 Page 7... - Page 8 12" 305mm Figure 4: Door Opening 5/16" 3/16" 11 3/4" 298mm 14 1/4" 360mm 19 1/8" 484mm Figure 5: Front View - Combustion Chamber Figure 6: Side View - Combustion Chamber Page 8 Installation and Operation Requirements - Solution 1.4...
-
Page 9: Epa Loading
Leave to burn with the primary air control open for approximately 10 minutes and then close the primary air control completely for the low burn rate and halfway for the medium burn rate. Installation and Operation Requirements - Solution 1.4 Page 9... -
Page 10: Clearances To Combustible Material
12 7/8" (327 mm) 12 7/8" (327 mm) The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Page 10 Installation and Operation Requirements - Solution 1.4... - Page 11 48" Flush 48" 36" 122 cm 92 cm Figure 7: Clearances - Top Figure 8: Clearances - Corner 84" 213 cm Figure 9: Clearances - Side Installation and Operation Requirements - Solution 1.4 Page 11...
- Page 12 6" from combustible materials must be used. Only in this case, the same clearances as a certified double wall pipe connector can be used. The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Page 12 Installation and Operation Requirements - Solution 1.4...
- Page 13 12 7/8" (327 mm) 12 7/8" (327 mm) The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Installation and Operation Requirements - Solution 1.4 Page 13...
- Page 14 The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Page 14 Installation and Operation Requirements - Solution 1.4...
- Page 15 12 7/8" (327 mm) 12 7/8" (327 mm) The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Installation and Operation Requirements - Solution 1.4 Page 15...
- Page 16 Les distances de tuyau listées dans ce tableau se réfèrent aux distances obtenues lorsque le poêle est installé en accord avec les dégagements de l’appareil mentionnés ci-dessus. Page 16 Installation and Operation Requirements - Solution 1.4...
-
Page 17: Floor Protection
The floor protection at the back of the stove is limited to the stove’s required clearance if such clearance is smaller than 8 inches (203 mm). Only required under the horizontal section (Ho) of the connector. Must exceed each side of the connector by at least 2 inches (51 mm). Installation and Operation Requirements - Solution 1.4 Page 17... -
Page 18: Reducing Wall And Ceiling Clearances Safely
Mounting hardware must not be located closer than 8" (200 mm) from the vertical centre line of the appliance. G) Edge clearance for ceiling shields to side and back walls: 3" (75 mm) Shield extension beyond each side of the appliance: 18" (450 mm) Page 18 Installation and Operation Requirements - Solution 1.4... - Page 19 Figure 11: Heat shield clearances Figure 12: Heat shield clearances Figure 13: Heat shield clearances Figure 14: Heat shield clearances Installation and Operation Requirements - Solution 1.4 Page 19...
- Page 20 Brick, with a minimum of 24 gauge (0.61 mm) sheet metal backing, spaced out at least 1" (25 mm)* by non-combustible spacers 12" (305 mm) * In Canada this space can be ⅞" (21 mm) Page 20 Installation and Operation Requirements - Solution 1.4...
-
Page 21: Installation Of Options On Your Product
THE IMAGES SHOWN ARE FOR GUIDANCE ONLY AND MAY BE DIFFERENT FROM YOUR PRODUCT, BUT THE ASSEMBLY REMAINS THE SAME. 1. To remove the decorative panel (A), remove the screws (B) and push forward on the panel to unhook it from the bracket (E). Installation and Operation Requirements - Solution 1.4 Page 21... - Page 22 2. It is now possible to install the U-shaped decorative pieces (C) in the front fold of the decorative panels (A). Page 22 Installation and Operation Requirements - Solution 1.4...
-
Page 23: Optional Fresh Air Intake Kit Installation
(HVAC type, must meet ULC S110 or UL 181 class 0 or class 1) (B), sold separately. Refer to air intake kit installation instructions for more details. Installation and Operation Requirements - Solution 1.4 Page 23... -
Page 24: Optional Fire Screen Installation
Lift the fire screen upwards and push the bottom part towards the stove then let the fire screen rest on the bottom of the door opening. Warning: Never leave the stove unattended while in use with the fire screen. Page 24 Installation and Operation Requirements - Solution 1.4... -
Page 25: Optional Blower And Thermodisc Installation
Ensure that the blower’s power cord is not in contact with any surface of the stove to prevent electrical shock or fire damage. Do not run the power cord beneath the stove. Installation and Operation Requirements - Solution 1.4 Page 25... -
Page 26: Air Tubes And Baffle Installation
Put the baffle in place. Repeat steps 1 and 2 for the three other tubes. To remove the tubes use the above steps in reverse order. Page 26 Installation and Operation Requirements - Solution 1.4... - Page 27 Note that secondary air tubes (B) can be replaced without removing the baffle board (A) and that all tubes are not necessarely identical (look at the part number on the tube). Installation and Operation Requirements - Solution 1.4 Page 27...
-
Page 28: Mobile Home Installation
THE IMAGES SHOWN ARE FOR GUIDANCE ONLY AND MAY BE DIFFERENT FROM YOUR PRODUCT, BUT THE ASSEMBLY REMAINS THE SAME. Screw the legs on the floor with the proper hardware (A). Page 28 Installation and Operation Requirements - Solution 1.4... -
Page 29: Maintenance/Parts Replacement
Reinstall the glass, being careful to centre the glass in the door and not to over-tightening the retaining screw. The two main causes of broken door glass are uneven placement in the door and over-tightening the retaining screws. Installation and Operation Requirements - Solution 1.4 Page 29... -
Page 30: Gasket
Remove the split pin by pulling and turning it using pliers. Turn the handle one counterclockwise turn to increase pressure. Reinstall the split pin with a small hammer. Figure 15: Removing the split pin Figure 16: Installing the split pin Page 30 Installation and Operation Requirements - Solution 1.4... - Page 31 Using a flat screwdriver, turn the adjustable hinge rods in the direction shown to adjust the doors. Tighten all door hinge pressure screws when they are at the desired positions. Configurations 1-2-3-4-5-6, show in which direction these act on the adjustment of the door. Installation and Operation Requirements - Solution 1.4 Page 31...
- Page 32 Leave about ½" long of the gasket when cutting and press the end into the groove. Tuck any loose fibers under the gasket and into the silicone. Close the door. Do not use the stove for 24 hours. Page 32 Installation and Operation Requirements - Solution 1.4...
-
Page 33: Exploded Diagram And Parts List
8. Exploded Diagram and Parts List Installation and Operation Requirements - Solution 1.4 Page 33... - Page 34 16 3/4'' X 9 5/8'' GLASS WITH GASKET AC06400 3/4" X 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 30101 SPRING TENSION PIN 5/32"Ø X 1 1/2"L SE24356 SOLUTION 1.4 DOOR WITH HANDLE AND GASKET AC09185 DOOR LATCH KIT SE65019 REPLACEMENT HANDLE WITH LATCH KIT AC06500 SILICONE AND 5/8"...
- Page 35 BLACK HEX NUT 1/4 - 20 (NON-OILED) PL74341 SOLUTION 1.4 LEG 30141 LEG KIT HARDWARE BAG SE74368 BOTTOM HEAT SHIELD KIT 30060 THREAD-CUTTING SCREW 1/4-20 X 1/2" F HEX STEEL SLOT WASHER C102 ZINC Installation and Operation Requirements - Solution 1.4 Page 35...
-
Page 36: Enerzone Limited Lifetime Warranty
Labour cost and repair work to the account of the manufacturer are based on a predetermined rate schedule and must not exceed the wholesale price of the replacement part. Shall your unit or a components be defective, contact immediately your ENERZONE dealer. To accelerate processing of your warranty claim, make sure to have on hand the following information when calling:... - Page 38 Resale is strictly prohibited. The manufacturer may update St-Augustin-de-Desmaures (Québec) Canada this document from time to time and cannot be responsible G3A 2H3 for problems, injuries, or damages arising out of the use 1-877-356-6663 of information contained in any document obtained from https://www.enerzone-intl.com/en/ unauthorized sources. tech@sbi-international.com...
