INSTALLATION
AND OPERATION
MANUAL
US ENVIRONMENTAL PROTECTION
Solution 1.3
AGENCY PHASE II CERTIFIED WOOD
STOVE

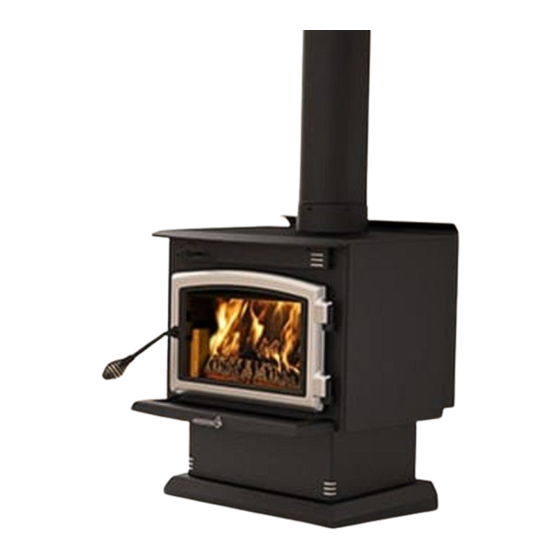

(EB00011 model)
Safety tested according to ULC S627,
UL 737 and UL 1482 Standards
by an accredited laboratory
www.enerzone-intl.com
Stove Builder International Inc.
250, rue de Copenhague,
St-Augustin-de-Desmaures
(Quebec) Canada G3A 2H3
After-sale service: 418-908-8002
E-mail: tech@sbi-international.com
READ AND KEEP THIS MANUAL FOR REFERENCE
This manual is available for free download on the manufacturer's web site. It is a
copyrighted document. Re-sale is strictly prohibited. The manufacturer may update this
manual from time to time and cannot be responsible for problems, injuries, or damages
arising out of the use of information contained in any manual obtained from unauthorized
sources.
45518A
Printed in Canada
29-06-2016

Advertisement

Table of Contents
loading

Summary of Contents for Enerzone EB00011

  • Page 1 AND OPERATION MANUAL US ENVIRONMENTAL PROTECTION Solution 1.3 AGENCY PHASE II CERTIFIED WOOD STOVE (EB00011 model) Safety tested according to ULC S627, UL 737 and UL 1482 Standards by an accredited laboratory www.enerzone-intl.com Stove Builder International Inc. 250, rue de Copenhague,...
  • Page 2 THANK YOU FOR CHOOSING THIS ENERZONE WOOD STOVE As one of North America’s largest and most respected wood stove and fireplace manufacturers, Stove Builder International takes pride in the quality and performance of all its products. We want to help you get maximum satisfaction as you use this product.
  • Page 3: Table Of Contents

    Table of content PART A - OPERATION AND MAINTENANCE ....... 6 Safety Information ..............6 Summary of Operation and Maintenance Cautions and Warnings ........6 General Information on Solution 1.3 (EB00011) ....7 Appliance performance ....................7 General Features ......................8 Zone Heating and How to Make it Work for You ..............
  • Page 4 Maintaining Your Wood Heating System ......23 Stove Maintenance ......................23 5.1.1 Cleaning Door Glass ....................23 5.1.2 Door adjustment ......................24 5.1.3 Replacing the Door Gasket ..................25 5.1.4 Replacing the Glass Gasket and/or the Glass .............. 25 5.1.5 Cleaning and Painting the Stove ..................
  • Page 5 Appendix 5: Installing the Optional Fire Screen (AC01318) ..46 Appendix 6: Installation and Use of Optional Blower and Thermodisc ............. 47 Appendix 7: Exploded Diagram and Parts List ......49 ENERZONE LIMITED LIFETIME WARRANTY ......52 Solution 1.3 Installation and Operation Manual...
  • Page 6: Part A - Operation And Maintenance

    PART A - OPERATION AND MAINTENANCE Please see Part B for installation instructions. 1 Safety Information 1.1 Summary of Operation and Maintenance Cautions and Warnings • HOT WHILE IN OPERATION, KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS. GLOVES MAY BE NEEDED FOR STOVE OPERATION.
  • Page 7: General Information On Solution 1.3 (Eb00011)

    General Information on Solution 1.3 (EB00011) 2.1 Appliance performance Fuel type Dry cordwood Recommended heating area 250 to 1,000 ft (23 to 93 m Firebox volume 1.3 ft (0.037 m Maximum burn time Maximum heat output (dry cordwood) 40,000 BTU/h (11.7 kW) (2)(3) Overall heat output rate (min.
  • Page 8: General Features

    2.2 General Features Maximum log length 17 in ( mm) east-west* Flue outlet diameter 6 in (152 mm) Recommended connector pipe diameter 6 in (152 mm) Type of chimney CAN/ULC S629, UL 103 HT (2100 °F) Baffle material Stainless steel Approved for alcove installation ‡...
  • Page 9 Solution 1.3 Installation and Operation Manual...
  • Page 10 Solution 1.3 Installation and Operation Manual...
  • Page 11: Zone Heating And How To Make It Work For You

    2.3 Zone Heating and How to Make it Work for You Your new Solution 1.3 wood stove is a space heater, which means it is intended to heat the area it is installed in, as well as spaces that connect to that area, although to a lower temperature. This is called zone heating and it is an increasingly popular way to heat homes or spaces within homes.
  • Page 12: Fuel

    3 Fuel 3.1 Materials That Should Not be Burned • GARBAGE OF ANY KIND, • COAL OR CHARCOAL, • TREATED, PAINTED OR COATED WOOD, • PLYWOOD OR PARTICLE BOARD, • FINE PAPER, COLORED PAPER OR CARDBOARD, • SALT WATER DRIFTWOOD, •...
  • Page 13: Log Length

    3.2.3 Log Length Logs should be cut about 1” (25 mm) shorter than the firebox so they fit in easily. Pieces that are even slightly too long make loading the stove very difficult. The most common standard length of firewood is 16” (400 mm). The pieces should be a consistent length, with a maximum of 1”...
  • Page 14: How To Dry Firewood

    3.2.5 How to Dry Firewood Firewood that is not dry enough to burn is the cause of most complaints about wood inserts. Continually burning green or unseasoned wood produces more creosote and involves lack of heat and dirty glass door. See Section 5: Maintaining your wood heating system for concerns about creosote.
  • Page 15: Judging Firewood Moisture Content

    3.2.6 Judging Firewood Moisture Content Judging Firewood Moisture Content You can find out if some firewood is dry enough to burn by using these guidelines: You can find out if some firewood is dry enough to burn by using these guidelines: You can find out if some firewood is dry enough to burn by using these guidelines: •...
  • Page 16: Operating Your Stove

    4 Operating Your Stove 4.1 The use of a fire screen. This stove has been tested for use with an open door in conjunction with a fire screen (AC01318, sold separately). Make sure the fire screen is properly secured on the stove to avoid any risk of fire.
  • Page 17: Conventional Fire Starting

    4.3.1 Conventional Fire Starting The conventional way to build a wood fire is to bunch up 5 to 10 sheets of plain newspaper and place them in the firebox. Next, place 10 or so pieces of fine kindling on the newspaper. This kindling should be very thin;...
  • Page 18: Using Fire Starters

    4.3.4 Using Fire Starters Many people like to use commercial fire starters instead of newspaper. Some of these starters are made of sawdust and wax and others are specialized flammable solid chemicals. Follow the package directions for use. Gel starter may be used but only if there are no hot embers present. Use only in a cold firebox to start a fire.
  • Page 19: Ash Removal

    4.4.2 Ash Removal Ash should be removed from the firebox every two or three days of full time heating. Do not let the ash build up in the firebox because it will interfere with proper fire management. The best time to remove ash is after an overnight fire when the stove is relatively cool, but there is still some chimney draft to draw the ash dust into the stove and prevent it from coming into the room.
  • Page 20: Turning Down The Air Supply

    DO NOT LEAVE THE STOVE UNATTENDED WHILE A NEW LOAD IS BEING FIRED HOT. DO NOT OVERFIRE. When you burn a new load of wood hot to heat up the wood, the stove and the chimney, the result will be a surge of heat from the stove. This heat surge is welcome when the room temperature is a little lower than desirable, but not welcome if the space is already warm.
  • Page 21: Building Different Fires For Different Needs

    4.4.6 Building Different Fires for Different Needs Using the air control is not the only way to match the stove’s heat output to the heat demand. Your house will need far less heat in October than in January to be kept at a comfortable temperature. If you fill the firebox full in fall weather, you will either overheat the space or turn the stove down so much that the fire will be smoky and inefficient.
  • Page 22 4.4.6.4 Maximum Burn Cycle Times The burn cycle time is the period between loading wood on a coal bed and the consumption of that wood back to a coal bed of the same size. The flaming phase of the fire lasts for roughly the first half of the burn cycle and the second half is the coal bed phase during which there is little or no flame.
  • Page 23: Maintaining Your Wood Heating System

    5 Maintaining Your Wood Heating System 5.1 Stove Maintenance Your new stove will give many years of reliable service if you use and maintain it correctly. Some of the internal components of the firebox, such as firebricks, baffles and air tubes, will wear over time under intense heat.
  • Page 24: Door Adjustment

    5.1.2 Door adjustment In order for your stove to burn at its best efficiency, the door must provide a perfect seal with the firebox. Therefore, the gasket should be inspected periodically making sure to obtain an air tight fit. Airtightness can be improved with a simple latch mechanism adjustment. To increase the pressure on the gasket, remove one washer (A).
  • Page 25: Replacing The Door Gasket

    5.1.3 Replacing the Door Gasket It is important to maintain the gasket in good condition. After a year or more of use, the door gasket will compress and become hard, which may allow air to leak past it. You can test the condition of the door gasket by closing and latching the door on a strip of paper.
  • Page 26: Cleaning And Painting The Stove

    5.1.5 Cleaning and Painting the Stove Do not attempt to clean or paint the stove when the unit is hot. Painted surfaces can be wiped down with a damp cloth. Plated surfaces may be scratched by abrasive cleaners. To maintain the finish at its original brilliance, use only a damp soft cloth to clean plated surfaces.
  • Page 27: Cleaning The Chimney

    5.2.3 Cleaning the Chimney Chimney cleaning can be a difficult and dangerous job. don’t have experience cleaning chimneys, you might want to hire a professional chimney sweep to clean and inspect the system for the first time. After having seen the cleaning process, you can decide if it is a job you would like to take on.
  • Page 28: Part B - Installation

    PART B - INSTALLATION 6 Safety Information 6.1 Summary of Installation Cautions and Warnings • THE INFORMATION GIVEN ON THE CERTIFICATION LABEL AFFIXED TO THE APPLIANCE ALWAYS OVERRIDES THE INFORMATION PUBLISHED, IN ANY OTHER MEDIA (OWNER’S MANUAL, CATALOGUES, FLYERS, MAGAZINES AND/OR WEB SITES).
  • Page 29: Clearances To Combustible Material

    7 Clearances to Combustible Material The clearances shown in this section have been determined by test according to procedures set out in safety standards ULC S627 (Canada), UL1482 (U.S.A.) and UL737 (U.S.A.). When the stove is installed so that its surfaces are at or beyond the minimum clearances specified, combustible surfaces will not overheat under normal and even abnormal operating conditions.
  • Page 30 If the above clearances are met, then the distances measured from the flue outlet will be: DISTANCES* FROM PIPE DISTANCES* FROM PIPE CONNECTOR TO THE CONNECTOR TO THE COMBUSTIBLE COMBUSTIBLE MATERIALS MATERIALS CANADA CANADA 18" (457 mm) 17½" (455 mm) 12½"...
  • Page 31 Clearances to combustible materials and floor protection Solution 1.3 Installation and Operation Manual...
  • Page 32: Floor Protector

    7.3 Floor protector If the stove is to be installed on top of a combustible floor, it must be guarded by a non combustible material as shown on figure 1.3 (see the dotted line area). FLOOR PROTECTOR* CANADA 8" (203 mm) – Note 1 N/A (Canada only) 8"...
  • Page 33: Reducing Wall And Ceiling Clearances Safely

    7.4 Reducing Wall and Ceiling Clearances Safely It is often desirable to reduce the minimum installation clearances by placing the stove closer to walls so the installation takes up less floor space. You can safely reduce the minimum clearances permanently installing a shield between stove combustible material.
  • Page 34 Clearances for shield construction Solution 1.3 Installation and Operation Manual...
  • Page 35: Table Of Clearance Reduction Percentages

    7.4.2 Table of Clearance Reduction Percentages Clearances may be reduced by these percentages Sides Top % Type of shield and rear % (ceiling) Can/USA Can/USA min. min. Sheet metal, a minimum of 24 gauge (0.61 mm) in thickness , spaced out at least 25 mm (1 in)*...
  • Page 36: The Venting System

    8 The Venting System The Venting System 8.1 General The venting system, made up of the chimney and the connecting pipe between the stove and the The venting system, made up of the chimney and the connecting pipe between the stove and the The venting system, made up of the chimney and the connecting pipe between the stove and the chimney, acts as the engine that drives your wood heating system.
  • Page 37: Masonry Chimneys

    8.2.2 Masonry Chimneys The stove may also be connected to a The stove may also be connected to a masonry chimney, provided the chimney masonry chimney, provided the chimney complies with the construction rules found rules found in the building code enforced locally. The in the building code enforced locally.
  • Page 38: The Relationship Between The Chimney And The House

    8.4 The Relationship Between the Chimney and the House The Relationship Between the Chimney and the House Because the venting system is the engine that drives the wood heating syst Because the venting system is the engine that drives the wood heating system, it must have the em, it must have the right characteristics.
  • Page 39: Supply Of Combustion Air

    There are two reasons why the chimney in the house at right will cold backdraft when it is cold outside and there is no fire burning in the stove. First, the chimney runs up the outside of the house, so the air in it is colder and denser than the warm air in the house.
  • Page 40: Installing The Chimney Connector

    8.6 Installing the Chimney Connector The chimney connector is the single or double wall pipe installed between the stove flue collar and the chimney breech. Single wall pipe components are available from most hardware and building supply stores. These components are not usually tested to a particular standard and certified as compliant.
  • Page 41 The rules below are based on those found in the CSA B365 installation code. Please carefully follow these installation instruction rules, or those enforced where you live. • Maximum overall length of straight pipe: 3 m (10 ft.) including elbows. •...
  • Page 42: Appendix 1: Installing The Optional Legs Or Pedestal

    Appendix 1: Installing the Optional Legs or Pedestal We suggest assembling the leg kit or pedestal before positioning the stove. See the following installation instructions: PEDESTAL ASSEMBLY Fix the pedestal base using the 4 bolts and washers removed in the previous step. Unscrew the 4 bolts in order to remove the 2 steel supports.
  • Page 43: Appendix 2: Installing The Optional Door Overlay

    Appendix 2: Installing the Optional Door Overlay In order to complete the assembly of your freestanding Enerzone wood stove, you need to install the door overlay. See the following installation instructions: Position the overlay on the door frame and secure it in place from behind using the 4 screws.
  • Page 44: Appendix 3: Installing The Optional Air Mate (Ac01361)

    Appendix 3: Installing the Optional Air Mate (AC01361) Most freestanding Enerzone wood stoves can be equipped with an optional air mate. This device accumulates heat and increases the air flow. See the following installation instructions: Note: Even though it is not necessary, may want to secure the optional air mate to the rear heat deflector using 2 self-drilling screws included with the air mate through the holes provided for this purpose.
  • Page 45: Appendix 4: Installing The Optional Fresh Air Intake Kit (Ac01331)

    Appendix 4: Installing the Optional Fresh Air Intake Kit (AC01331) WHEN INSTALLED WITH A FRESH AIR KIT, THE STOVE MUST BE ANCHORED TO THE FLOOR. The installation instructions are provided with the Fresh Air Intake Kit (AC01331), sold separately. Solution 1.3 Installation and Operation Manual...
  • Page 46: Appendix 5: Installing The Optional Fire Screen (Ac01318)

    Appendix 5: Installing the Optional Fire Screen (AC01318) Open the door. Hold the fire screen by the two handles and bring it close to the door opening. Lean the upper part of the fire screen against the top door opening making sure to insert the top fire screen brackets behind the primary air deflector as in (Detail A).
  • Page 47: Appendix 6: Installation And Use Of Optional Blower And Thermodisc

    2 percent. However, the blower should not be used as a way to gain more output from a stove that is undersized for the space it is intended to heat. You can purchase this option through your ENERZONE dealer. Make sure to specify this part number: AC01000 .
  • Page 48 The blower has a rheostat, see the illustration on the right to identify the different adjustment positions; either from high (HI) to low (LO) or closed (OFF). When using the optional blower manually, allow the stove to reach operating temperature (approximately one hour), before turning it on.
  • Page 49: Appendix 7: Exploded Diagram And Parts List

    Appendix 7: Exploded Diagram and Parts List Solution 1.3 Installation and Operation Manual...
  • Page 50 ASH LIP THREAD-CUTTING SCREW 1/4-20 X 1/2" F HEX STEEL SLOT WASHER 30060 C102 ZINC 30076 STEEL "POP" RIVET 1/8" X 3/8" 30441 ENERZONE LOGO AC01150 BLACK STEEL LEG 1.3 SE63214 RIGHT OR LEFT LEG KIT PL63213 UNDERSIDE HEAT SHIELD AC01135 PEDESTAL AND ASH PAN KIT 1.3...
  • Page 51 ITEM DESCRIPTION 60013 POWER CORD 96" X 18-3 44085 RHEOSTAT KNOB 44087 RHEOSTAT NUT 44080 RHEOSTAT WITH NUT 44070 CROSSFLOW BLOWER 115V-60Hz-56W (B) 29011 4'' X 9" X 1 1/4" REFRACTORY BRICK HD 29020 4 1/2'' X 9'' X 1 1/4'' REFRACTORY BRICK HD PL36046 4 1/2"...
  • Page 52: Enerzone Limited Lifetime Warranty

    Labour cost and repair work to the account of the manufacturer are based on a predetermined rate schedule and must not exceed the wholesale price of the replacement part. Shall your unit or a components be defective, contact immediately your ENERZONE dealer. To accelerate processing of your warranty claim, make sure to have on hand the following information when calling: •...
