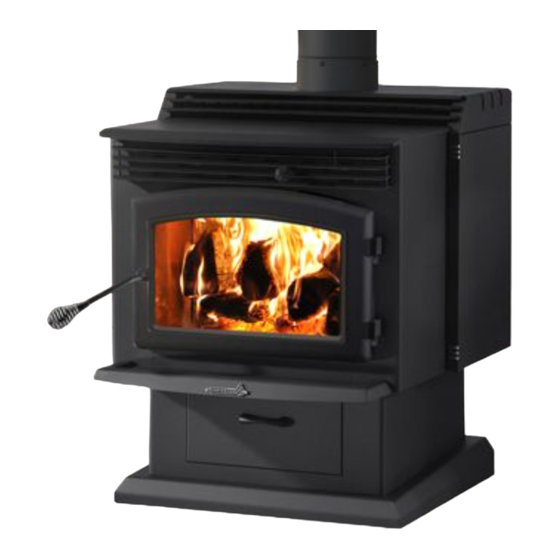

Enerzone SOLUTION 3.4 User Manual

Hide thumbs Also See for SOLUTION 3.4:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual
ENERZONE WOOD STOVE MANUAL
MODEL SOLUTION 3.4
Verified and/or tested
US ENVIRONMENTAL
STOVE BUILDER
following ULC S627 and
INTERNATIONAL INC.
PROTECTION AGENCY
250, de Copenhague,
UL 1482 Standards by:
PHASE II CERTIFIED
Saint-Augustin-de-Desmaures
WOOD STOVE
(Quebec), Canada G3A 2H3
Tel : (418) 878-3040
Fax : (418) 878-3001
www.enerzone-intl.com
READ AND KEEP THIS MANUAL FOR REFERENCE
This manual is available for free download on the manufacturer's web site. It is a copyrighted
document. Re‐sale is strictly prohibited. The manufacturer may update this manual from time
to time and cannot be responsible for problems, injuries, or damages arising out of the use of
information contained in any manual obtained from unauthorized sources.
45285A
Printed in Canada
29-10-2012

Advertisement

Table of Contents
loading

Related Manuals for Enerzone SOLUTION 3.4

Summary of Contents for Enerzone SOLUTION 3.4

  • Page 1 ENERZONE WOOD STOVE MANUAL MODEL SOLUTION 3.4 Verified and/or tested US ENVIRONMENTAL STOVE BUILDER following ULC S627 and INTERNATIONAL INC. PROTECTION AGENCY 250, de Copenhague, UL 1482 Standards by: PHASE II CERTIFIED Saint-Augustin-de-Desmaures WOOD STOVE (Quebec), Canada G3A 2H3 Tel : (418) 878-3040 Fax : (418) 878-3001 www.enerzone-intl.com...
  • Page 2 To receive full warranty coverage, you will need to show evidence of the date you purchased your stove. Keep your sales invoice. We also recommend that you register your warranty online at http://enerzone-intl.com/warranty-registration.aspx Registering your warranty online will help us track rapidly the information we need on your stove.

  • Page 3: Table Of Contents

    BAFFLE INSTALLATION ........................36     4.6.1 Baffle installation and brick layout ........................36     SECONDARY AIR TUBE REPLACEMENT ..................38   SECTION 5.0 SPECIFICATIONS .......................... 39     SOLUTION 3.4 ............................39   ENERZONE LIMITED LIFETIME WARRANTY ....................40...

  • Page 4: Section 1.0 - Installation

    SECTION 1.0 - INSTALLATION When installed and operated as described in these instructions, the E.P.A Enerzone wood stove is suitable for use as a freestanding wood stove in residential installations. The E.P.A Enerzone wood stove is not intended for installation in a bedroom.

  • Page 5: Installation Of The Decorative U-Shaped Inserts

    Table 1.1.1 Installation of the decorative u-shaped inserts 1.1.2 Door overlay installation In order to complete the assembly of your freestanding Enerzone wood stove, you need to install the door overlay. See table 1.1.2 below for installation instructions : 1- Position the overlay on the door frame and fix it in place from behind using the 4 screws supplied with the owner’s manual.

  • Page 6: Positioning The Stove

    POSITIONING THE STOVE It is very important to position the wood stove in an area that will favour the most efficient heat distribution throughout the house. The stove should therefore be installed in the room where the most time is spent, and in the most spacious room possible. Recall that wood stoves produce radiating heat, the heat we feel when we are close to a wood stove.
  • Page 7 FIGURE 1.3 Clearances to combustible materials and floor protection...
  • Page 8 Floor protector If the stove is to be installed on top of a combustible floor, it must be guarded by a non combustible material as shown on figure 1.3 (see the dotted line area). FLOOR PROTECTOR* CANADA 8’’ (205 mm) – Note 1 N/A (Canada only) 8’’...
  • Page 9 Following the installation of such a heat radiation shield, the clearances mentioned on the stove certification plate may be reduced as stated in the following table. Reducing Clearances With Shielding TYPE OF PROTECTION Sides and Rear/Back Sheet metal, a minimum of 0,024" (0,61mm) spaced out at least 1"...
  • Page 10 Graphic 1 A- Minimum clearance required between the appliance and an unshielded combustible ceiling. B- 20 in. (500 mm) minimum; C- 1 in. (25 mm) minimum; D- Between 1 in. and 3 in. (25 mm and 75 mm); E- 3 in.(75 mm) minimum; F- 18 in.
  • Page 11 Graphic 2 A- 1 in.(25 mm) minimum; 1- Combustible wall; 2- Non-combustible spacers; 3- 0.024’’ (0.61mm) sheet metal. Graphic 3 A- 1 in. (25 mm) minimum; 1- Combustible wall; 2- Non-combustible spacers; 3- Non-combustible support; 4- Ceramic tile or non-combustible material. Graphic 4 A- 1 in.
  • Page 12 Graphic 5 A- 1 in. (25 mm) minimum; 1- Combustible wall; 2- Non-combustible spacers; 3- Brick. Graphique 6 A- 1 in. (25 mm) minimum; 1- Combustible wall; 2- Non-combustible spacers; 3- 0.024’’ (0.61 mm) thick sheet metal; 4- Brick.

  • Page 13: Section 2.0 Chimney (Flue System)

    SECTION 2.0 CHIMNEY (FLUE SYSTEM) DEFINITIONS For clarity, the following definitions should be used with respect to these instructions:  A chimney system consists of a connector off the top of the stove, and a chimne , which attaches to the connector and terminates outside the house. ...
  • Page 14 If you are using a masonry chimney, it is important that it be built in compliance with the specifications of the Building Code. It must be lined with fire clay bricks, or clay tiles, sealed together with fire cement, or have a listed solid fuel burning stainless steel liner. Round chimneys are the most efficient.

  • Page 15: Step By Step Installation Of Your Factory-Built Chimney

    FIGURE 2.2 Minimum Height of the Chimney 2.2.1 Step by step installation of your factory-built chimney The way to install your chimney may vary from one chimney manufacturer to another. For installation instructions, we advise you to consult your chimney manufacturer whose products are sold at many North American retailers of wood stoves and related heating accessories.
  • Page 16 Stove pipe  An adequate number of stove pipe sections.  A 90 elbow FIGURE 2.2.1 (A) Typical installation through the wall...
  • Page 17 Typical installation through the ceiling Ceiling support system If your chimney must rise inside the house and go through the ceiling, you need to connect it to your stove at the ceiling level. For this type of installation, the following items are normally required : Chimney ...

  • Page 18: Typical Installation Through An Existing Masonry Chimney

    2.2.2 Typical installation through an existing masonry chimney You can also install your stove using your existing masonry chimney. To do so, follow the guidelines below. You may want to use a factory-built thimble, on construct your own brick thimble. If you are using a masonry chimney, it is important that it be built in compliance with the specifications of the Building Code in your region.
  • Page 19 FIGURE 2.2.2 (B) Factory Built Thimble...
  • Page 20 FIGURE 2.2.2 (C) Brick Thimble...

  • Page 21: Chimney Connector

    CHIMNEY CONNECTOR Your chimney connector (commonly called stove pipe) and chimney must have the same diameter as the stove’s exhaust outlet. The stove pipe must be made of aluminized or cold roll steel with a minimum 24-gauge thickness (0.021" or 0.53 mm). It is strictly forbidden to use galvanized steel.
  • Page 22 FIGURE 2.3 (A) Connecting Sections 1/4" RISE PER FOOT FIGURE 2.3 (B) Minimum Slope...
  • Page 23 We recommend that you use Avoid 90 degree eblows two 45 degree elbows instead...

  • Page 24: Draft

    DRAFT Your E.P.A Enerzone stove’s performance will be optimised if it is installed with a chimney (flue) system that provides an adequate draft. The draft is the force that moves air from the appliance up through the chimney and is predominantly affected by the height and diameter of the chimney, as well as the stack temperatures of the stove.

  • Page 25: The Advantage Of Using A Blower (Fan)

    THE ADVANTAGE OF USING A BLOWER (FAN) A blower is installed at the back of your E.P.A Enerzone stove model Solution 3.4. The blower should be used if you wish to redistribute into a room the heat trapped at the back of your stove. By forcing hot air toward the front, the blower enables you to extend the radiation and convection power of your stove.

  • Page 26: Operation

    SECTION 3.0 OPERATION Keep these instructions for future reference. WARNING:  ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY THE CSA B365 ( ANSI NFPA TESTING AUTHORITY IS CONSIDERED AS BREACHING CANADA 211 (USA).  DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS TO START OR REKINDLE THE FIRE ...

  • Page 27: Safety Information

     Do not abuse the unit, either by over firing or by using wood or combustibles with salt content, or harmful chemicals. Misuse is not covered by warranty.  Even though your E.P.A Enerzone has been specifically designed and tested to prevent smoke spillage, always open the door slowly as this will minimise the likelihood of smoke spillage or a back draft of flame or smoke into the room.

  • Page 28: Fuel

    Fuel for the stove must not be stored closer than the required clearances to combustibles (heat sensitive materials). NEVER STORE WOOD IN THE ASH PAN COMPARTMENT. Your E.P.A Enerzone stove is designed to burn . Do not burn coal, charcoal, or trash in WOOD ONLY the unit.

  • Page 29: The Use Of Manufactured Logs

    Decorative fireplaces generally have larger, cooler, and less air-tight fireboxes. Your E.P.A Enerzone stove, on the other hand, has a smaller, completely sealed firebox which attains much higher temperatures. It is therefore not designed to support excessive heat caused by the addition of chemicals in manufactured logs.

  • Page 30: Simple Wood Moisture Test

    3.2.2 Simple wood moisture test Add one large piece of wood to the top of an established fire. If it starts to burn on three sides within one minute, it is dry and seasoned and right for burning. If it turns black and starts to burn in about three minutes or more, it is damp.

  • Page 31: Maintaining The Fire

    Desired Intensity Draft Setting Push Control completely to end of travel toward the left. Medium Low Pull Control to the right by 3/8” from closed position. Medium High Pull Control by 3/4” to the right from closed position. High Pull Control completely to end of travel toward the right. Table 3.4 Closing the draft control down too soon will lower combustion efficiency, and may result in creosote build-up in the chimney (which could lead to a future chimney fire).

  • Page 32: Fan (Blower) Operation

    Your E.P.A Enerzone stove will work best if a thick bed of hot embers is maintained in the bottom of the firebox, and a minimum of two large pieces of seasoned fuel are added. Combustion efficiency is largely related to establishing a hot ember bed, and hot firebox temperatures.

  • Page 33: Maintenance

    SECTION 4.0 MAINTENANCE CLEANING AND PAINTING YOUR STOVE Clean the stove frequently so that soot, ash, and creosote do not accumulate. Do not attempt to clean the stove when the unit is hot. Special care must be taken with plated surfaces in order to maintain the finish at its original brilliance.

  • Page 34: Gasketing

    Carefully clean the gasket groove, apply a high temperature silicone sold for this purpose, and install the new gasket. Use only the genuine Enerzone gasket. You may light up your stove again approximately 24 hours after having completed this operation.

  • Page 35: Chimney (Flue) Cleaning

    When ignited, this creosote makes an extremely hot fire which could be hazardous. Your E.P.A Enerzone stove has been designed to reduce the amount of creosote produced. Even so, the chimney and any chimney connector should be inspected at least once every two months during the heating season to determine if a creosote build-up has occurred.

  • Page 36: Baffle Installation

    BAFFLE INSTALLATION 4.6.1 Baffle installation and brick layout All firebricks, baffles and ceramic wool insulation must be properly in place for optimum burning efficiency. Have any damaged firebrick, baffle and or insulation replaced. CERAMIC WOOL INSULATION C-CAST BAFFLE 6" X 6" FIREBRICK 6"...
  • Page 37 Step 2: Put a piece of ceramic wool insulation on top of the first baffle the notch facing down (as per the right hand side image), insert the two parts into the stove and over the right and left secondary air channel.

  • Page 38: Secondary Air Tube Replacement

    Step 4: Reinstall the secondary air tubes and cutter pins in their original location and put the four right hand side firebricks back into place. SECONDARY AIR TUBE REPLACEMENT Figure 4.7.1 – Secondary air tube replacement...

  • Page 39: Section 5.0 Specifications

    SECTION 5.0 SPECIFICATIONS SOLUTION 3.4 Fuel Type Cordwood Test Standards ULC S627 (CSA B366.2) & UL 1482 residential. Maximum recommended heating area : 500 to 2,700 square feet Heating capacity* – BTU/hr., EPA test wood : 60,300 Heating capacity* – BTU/hr., seasoned cordwood : 100,000...

  • Page 40: Enerzone Limited Lifetime Warranty

    Proof of purchase (dated bill of sale), model name and serial number must be supplied when making any warranty claim to your ENERZONE dealer. This warranty applies to normal residential use only. Damages caused by misuse, abuse, improper installation, lack of maintenance, over firing, negligence or accident during transportation, power failures, downdrafts, or venting problems are not covered by this warranty.
