NB5Plus4W Antenna Instructions
Before continuing with the Hardware installation, you may need to connect the
Antenna
1. The antenna has a retaining nut which must be screwed into the SMA connector
on the back of the modem. Place the screw retaining nut over the antenna con-
nection on the rear of the NB5Plus4W and turn it clockwise.
Note:
Do not over-tighten the attaching nut - but do make sure that you have
screwed it all the way to its end.
Screw retaining
nut clockwise
over the antenna
connection
2. Bend the antenna to a 90 o angle.
Note:
Please note that you may have to rotate the complete antenna assembly to
do this and have the antenna pointing vertically.
YML754 Rev1
www.netcomm.com.au

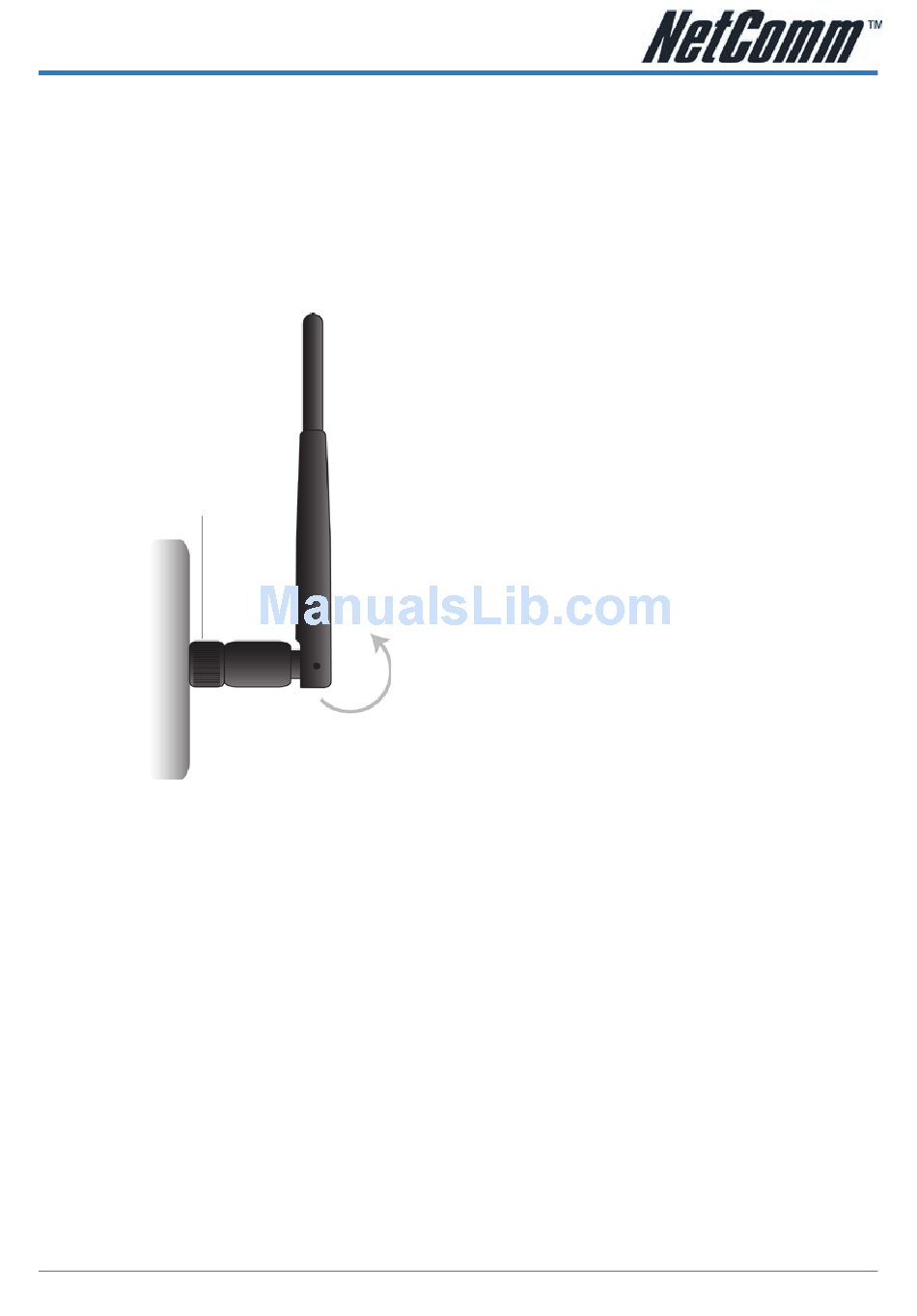

Bend antenna
to a 90
angle
o
NB5Plus4/W User Guide
15
