NetComm NB16WV-02 Setup Manual
N600 dual band wifi gigabit modem router with voice
configuring for usb storage service
Hide thumbs
Also See for NB16WV-02:
- User manual (84 pages) ,
- Quick start manual (4 pages) ,
- User manual (4 pages)
Related Manuals for NetComm NB16WV-02
Summary of Contents for NetComm NB16WV-02

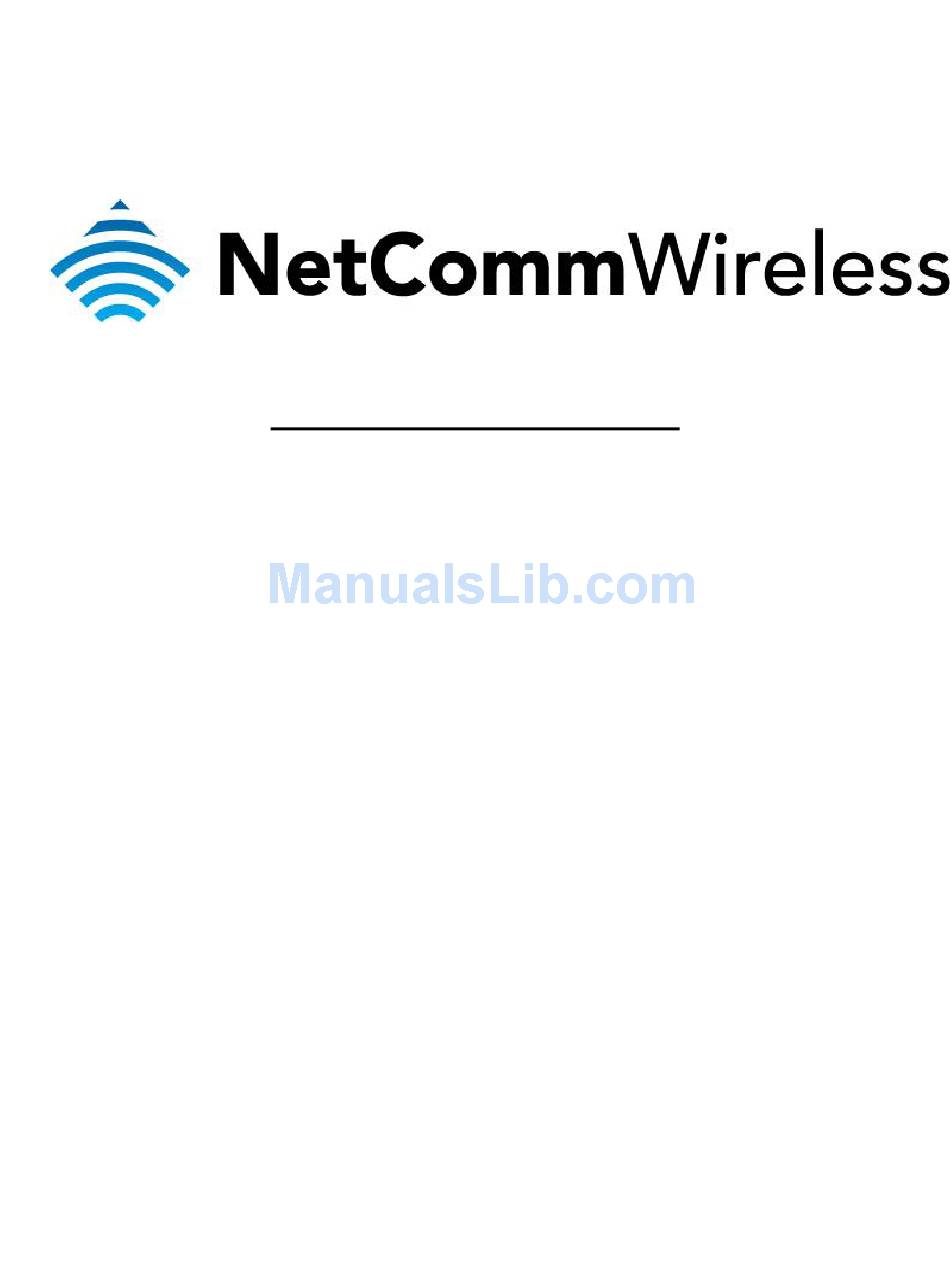

- Page 1 USB Storage Setup Guide (NB16WV-02)
- Page 2 There are two ways of accessing the files stored in the USB storage device that is connected to the modem. The Guest Mode, which is the default mode, allows access to any device connected to the NB16WV-02 without security. The Authorization Mode, allows access to devices after going through security by entering a specific username and password.
- Page 3 2. Click the Switch to Advanced View to open the NAS view of the configuration page. 3. Select the NAS Settings menu then click the Access Control option.
- Page 4 6. Click on the User Configuration button to view and edit the user accounts for the USB storage. 7. Type in a user name and password. (e.g. username is netcomm and the password is a12345) 8. Click the Add button then the user will be created and displayed as shown below.
- Page 5 Guest Mode (Default) Guest Mode is enabled by default. You would only need to follow these steps if you have previously enabled the Authorization Mode: 1. Navigate to http://192.168.20.1 in a web browser using “admin” (without quotes) as both the username and password to login to the router.
- Page 6 3. Select the NAS Settings menu then click the Access Control option. 4. Select the Guest mode option as the Security Level. 5. Click the Save button to enable the Guest mode.
- Page 7 Accessing USB hard drive Connected to NB16WV-02 using a Windows PC 1. Now exit out from the Netcomm router’s WEB Interface page and open up the “Windows Explorer” and type \\192.168.20.1 on the top address bar 2. When prompted for login details type the login details as shown below. (This is only applicable if you have enabled the Authorization Mode) 3.
- Page 8 Accessing USB hard drive Connected to NB16WV using a Mac PC 1. On you Mac click on Go --- Connect to a Server. 2. Enter the path to the network drive you want to map, ie: smb://192.168.20.1 and click ‘Connect’...
- Page 9 3. Enter your login/password as shown below and click Connect to mount the network drive. (This only applicable if you have enabled the Authorization Mode) 4. The drive will now appear on your desktop and in the finder window sidebar...
