Back Panel Ports

Power jack
for AC power
adaptor
Power
1, 2, 3, 4
Reset
USB
Line
Power jack
for AC power
adaptor
NB5Plus4/W User Guide
10
4 x RJ-45
Ports for 10/100
Ethernet LAN

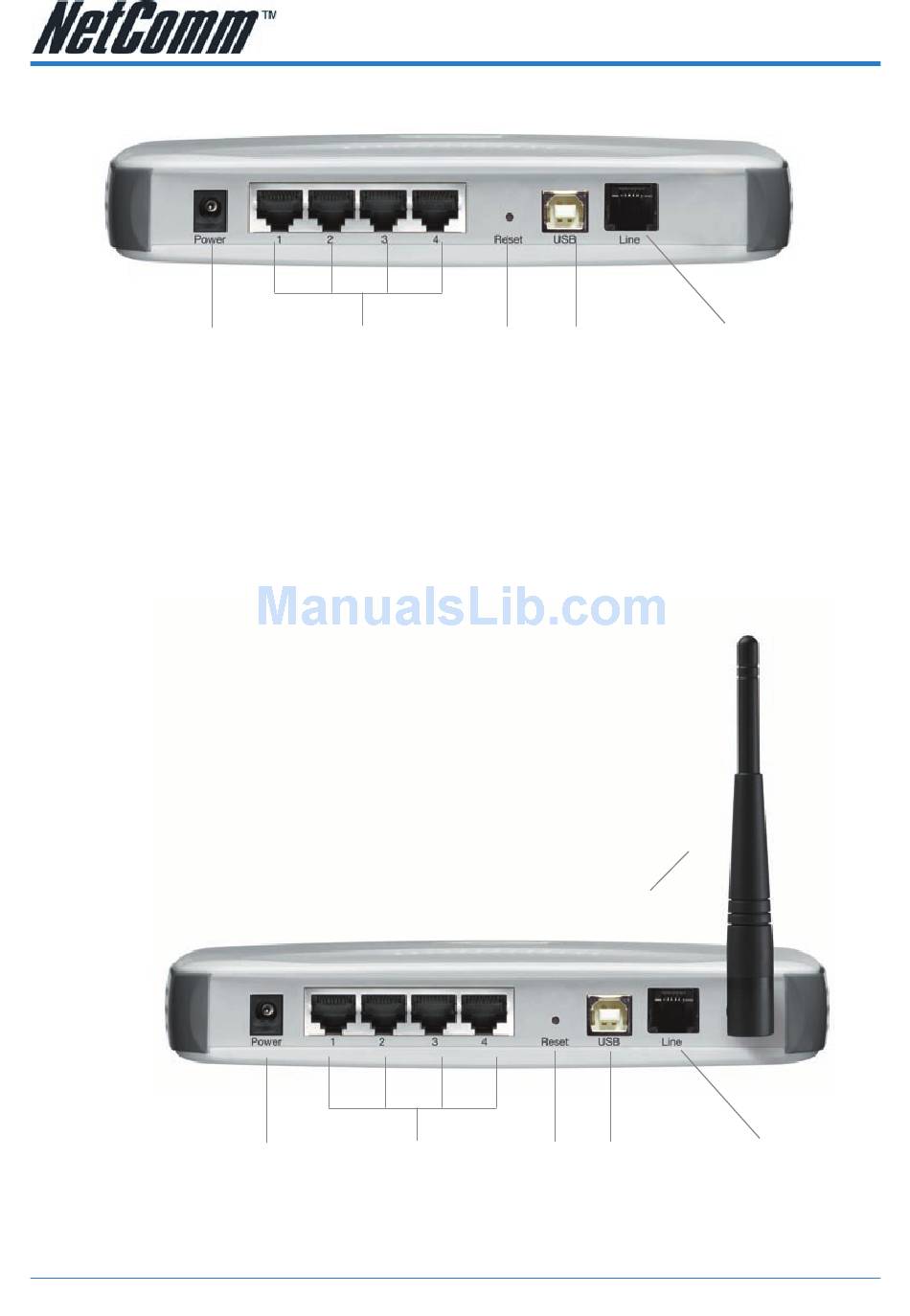

Rear Panel of the NB5Plus4
Connect the Power Adapt0r that comes with your package.
4 x 10/100 Base-T Ethernet jack (RJ-45) to connect to your Ethernet
Network card or Ethernet Hub / Switch.
To reset your ADSL Router to factory default settings. (All custom-
ised settings that you have saved will be lost!)
Please refer to the section below on how to use the
reset function.
USB Port (requires Drivers from accompanying CD).
Telephone jack (RJ-11) to connect to your
Telephone Wall Socket (ADSL line).
4 x RJ-45
Ports for 10/100
Ethernet LAN
Rear Panel of the NB5Plus4W
Reset USB
factory Port
defaults
NB5Plus4W
antenna
Reset USB
factory Port
defaults
RJ11 for ADSL
connection to
telephone line
RJ11 for ADSL
connection to
telephone line
