NetComm NB5580W Configuration Manual

Configuring in layer2 pppoe for windows xp and 2000

Hide thumbs Also See for NB5580W:

1. Network Configuration

2. Restore Router To Factory Defaults

3. Re-configure In Layer2 PPPoE

4. Optional

PLEASE NOTE: Some screen shots may differ due to different versions

of firmware used. Please have your router powered on and connected

directly to your PC via Ethernet cable before you begin

1. NETWORK CONFIGURATION

PPPoE connection does not require you to have an IP address or DNS

settings manually encoded on your network card. PPPoE connection uses

authentication to establish the Internet connection and its after doing this

that your router is assigned an IP and DNS settings from TPG.

To begin, your PC needs to receive a private IP address from the router.

Most ADSL routers have DHCP enabled by default that will take care of

this.

To ensure your Network Card is ready for this please follow the following

steps:

A. Click on Start -> Settings -> Control Panel -> Network Connections

B. Find your Network Card then right click on this and select Properties

C. Double click on Internet Protocol TCP/IP

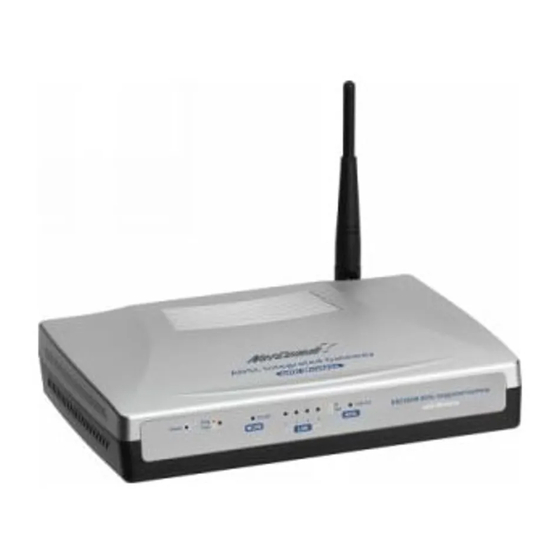

Netcomm NB5580W

Table of Contents
