A safety rope which already hold the strain of a crash or which is defective must not be used again.
Adjust the desired inclination-angle via the mounting-bracket and tighten the fixation screws.
Connect the fixture to the mains with the power-plug.
The occupation of the connection-cables is as follows:
Cable Pin
Brown Live
Blue Neutral
Yellow/Green Earth
The earth has to be connected!
If the device will be directly connected with the local power supply network, a disconnection switch with a
minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
Lighting effects must not be connected to dimming-packs.
Before taking into operation for the first time, the installation has to be approved by an expert!

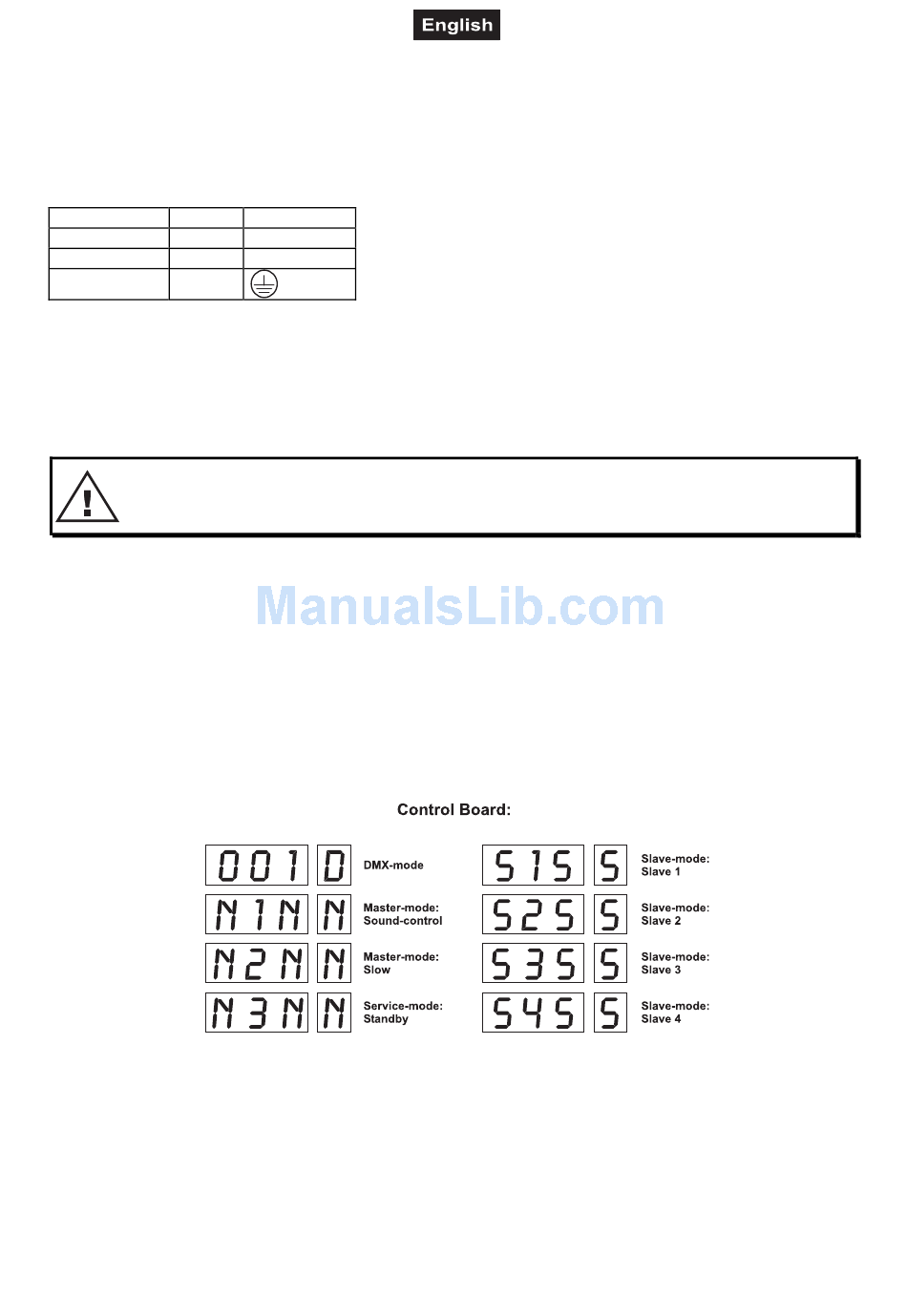

Master/Slave-operation

The master/slave-operation enables that several devices can be synchronized and controlled by one master-
device.
On the rear panel of the DJ-SCAN 200/250 you can find an XLR-jack (DMX Out) and an XLR-plug (DMX In),
which can be used for connecting several devices.
Choose the device which is to control the effects. This device then works as master-device and controls all
other slave-devices, which are to be connected to the master-device via a balanced microphone lead.
Connect the DMX OUT-jack with the DMX IN-plug of the next device.
Set the desired Master-mode for the master-device. Set the respective Slave-mode for all slave-devices.
Please note: The function N3N is only meant for service-purposes. Please do only use this function if you
want to set the unit shortly into standby mode. If the unit remains on N3N, it cannot be controlled by DMX
anymore!

Blackout-socket

If you wish to lock the light output - e.g. via an optional footswitch (Blackout-mode), connect your footswitch
via a mono-jack plug to the Blackout-socket.
International
L
N
DANGER TO LIFE!
28/28 DJ_SCAN_200_250_V_1_2
