To remove:
1.
Remove the front cover (see page 11).
2.
Remove the 7 screws for the printed circuit board F and 2 screws for the printed circuit
board K.
3.
Pull out the connectors of the printed circuit boards F or K, and then remove the printed
circuit boards F or K.
To attach:
1.
Insert the connectors of the printed circuit boards F or K.
2.
Insert the lever into the groove B of speed control lever A as shown below.
3. Attach the printed circuit board K with the 7 screws, and then attach the printed circuit
board F with the 2 screws.
4. Attach the front cover.

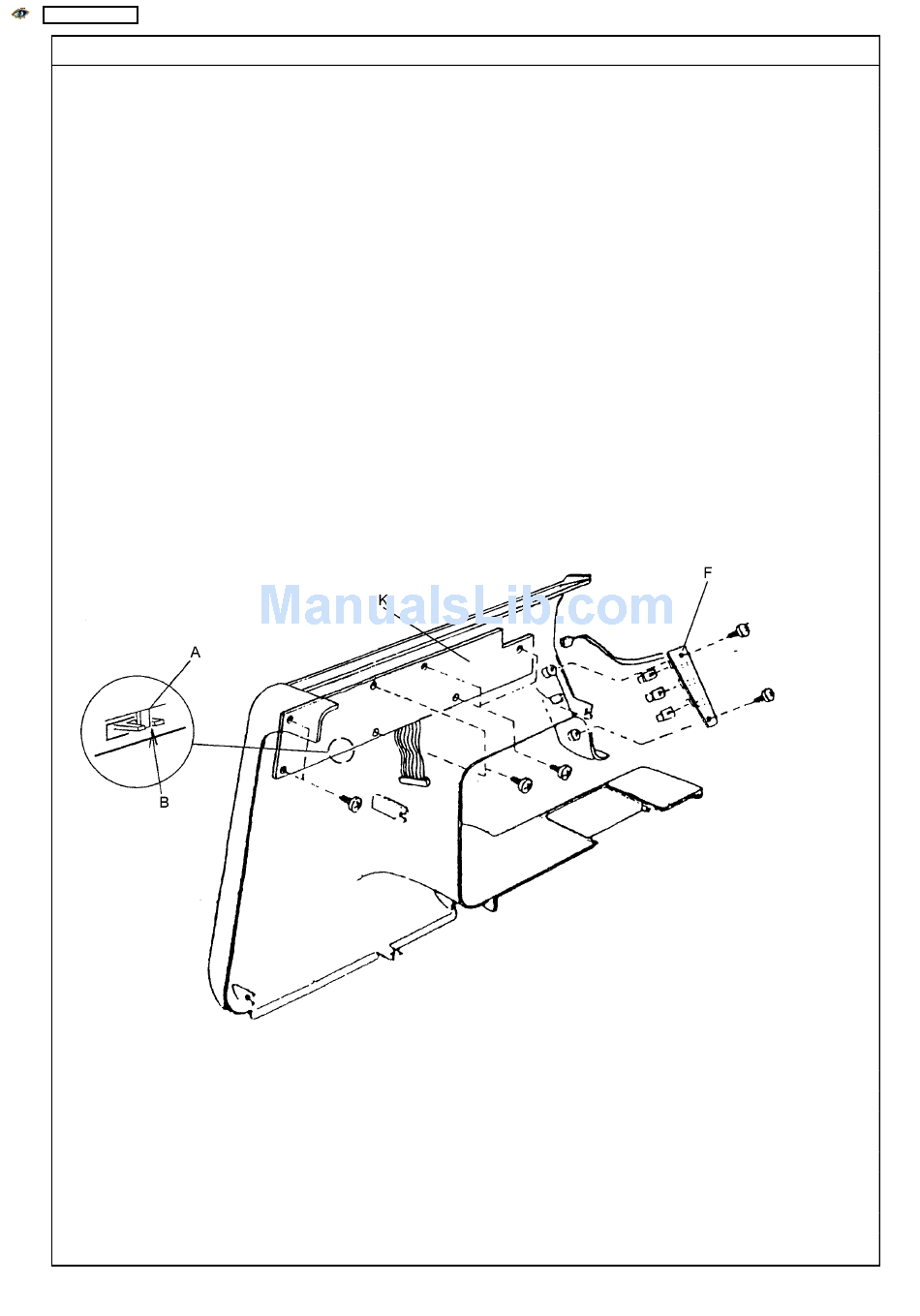

K AND F BOARD
