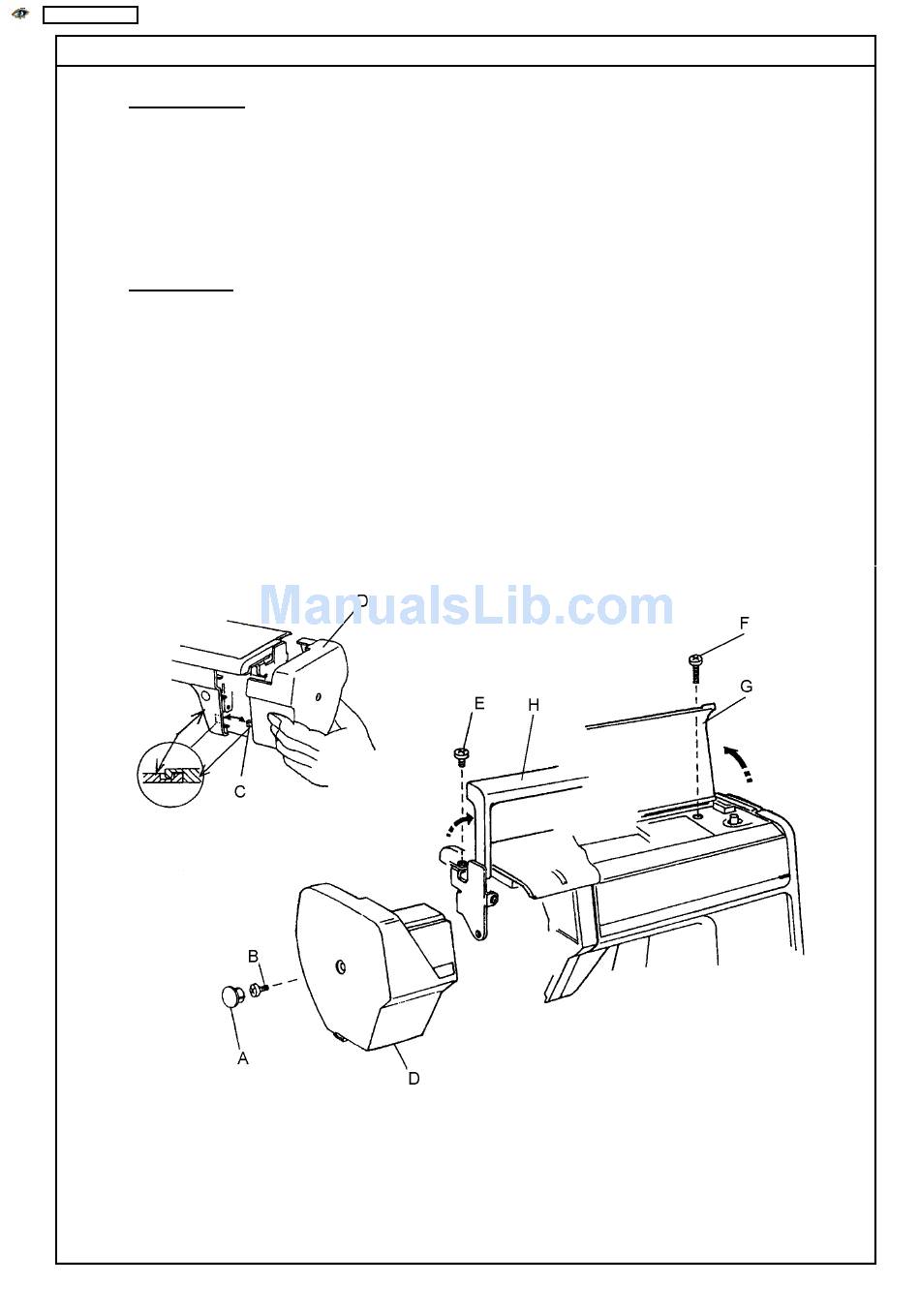

FACE COVER
To remove
1. Remove the cap A and set screw B.
2. Remove the face plate D while pulling it toward you so that face plate hook C is released.
To attach
1. Attach the face plate.
2. Tighten the set screw B and attach the cap A.
TOP COVER
To remove
1. Remove the set screw F.
2. Lift up the handle H and remove the set screw E.
3. Close the top cover lid G and pull the top cover to the back.
To attach
1. Lift up the handle H and insert the top cover G from the back.
2. Tighten the set screws F and G.
FACE AND TOP COVER
