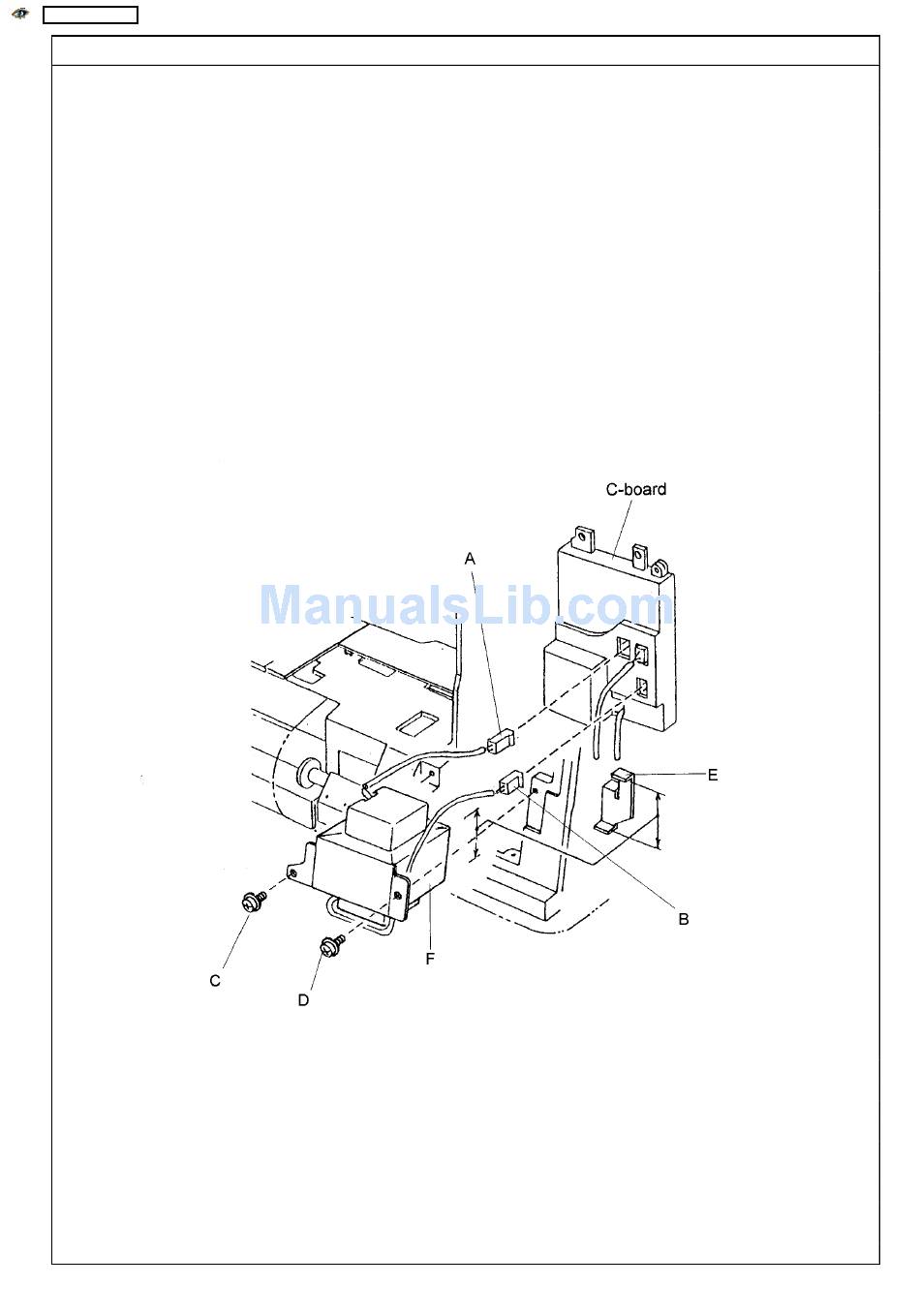

Remove the front cover (see page 11).
2.
Remove the A-board (see page 28).
3.
Remove the C-board case (see page 25).
4.
Detach the connectors A and B.
5.
Remove the screws C and D.
6.
Take out the transformer F.
To attach:
1.
Set the rear side of the transformer F on the supporter E.
2.
Tighten the screws C and D.
3.
Reconnect connectors A and B.
4.
Replace C-board case unit, A-board and the front cover.
TRANSFORMER
26
