To remove:
1.
Remove the front cover (see page 11).
2.
Remove the receptacle unit (see page 27).
3.
Pull out the feed stepping motor connector from the A-circuit board.
4.

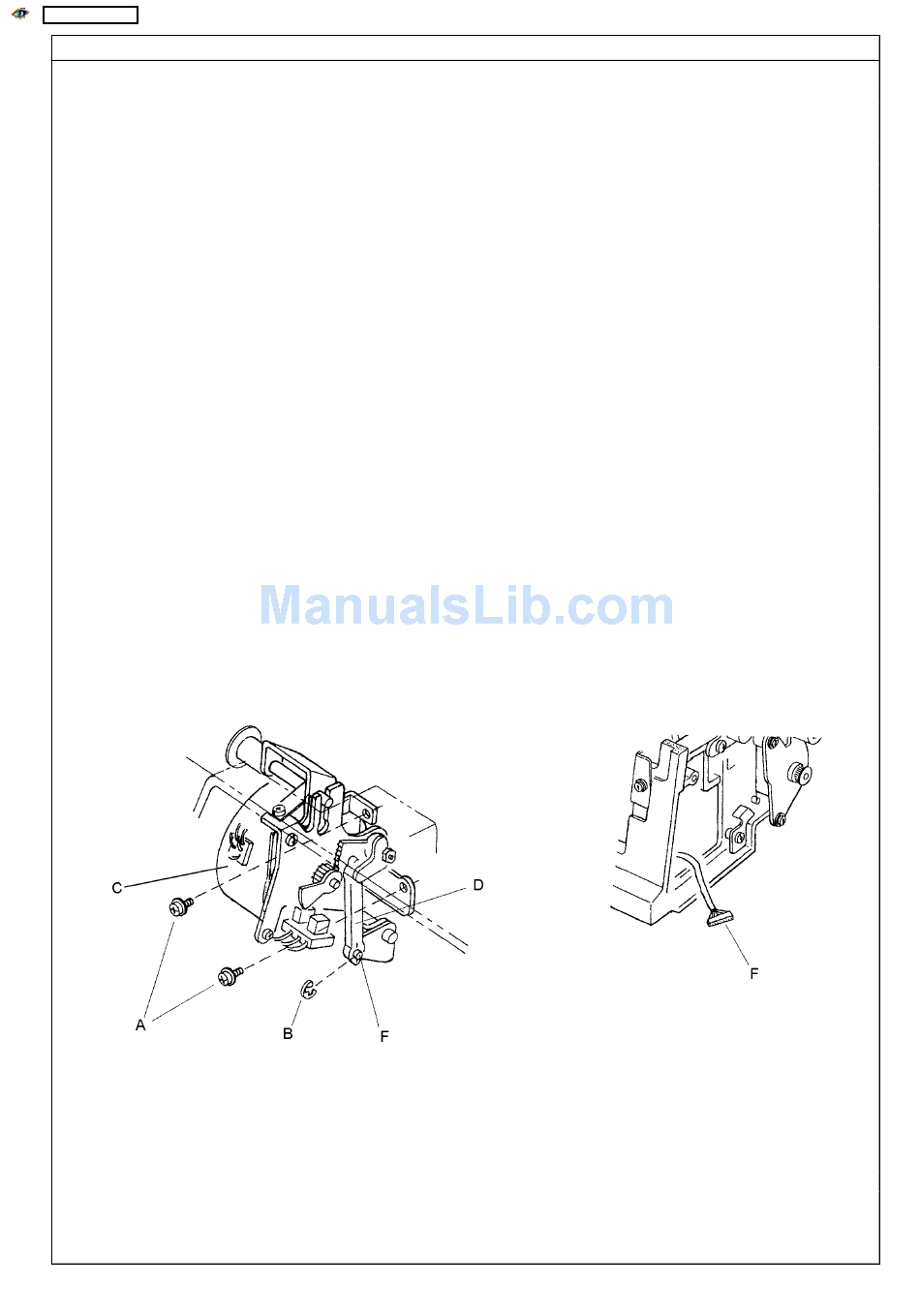

Remove the snap ring B and the 2 screws A.
5.
Remove the feed stepping motor C together with feed rod D.
To attach:
1.
Slide the feed rod D onto the feed arm pin F.
2.
Then attach the feed stepping motor by tightening the 2 screws A, tighten the 2 screws at
the spot that where the feed arm moves smoothly.
3. Attach the snap ring B.
4. Attach the receptacle and the front cover.
5. Adjust the Stretch stitch feed balance (see page 20).
FEED STEPPING MOTOR
34
