Summary of Contents for Victory E3

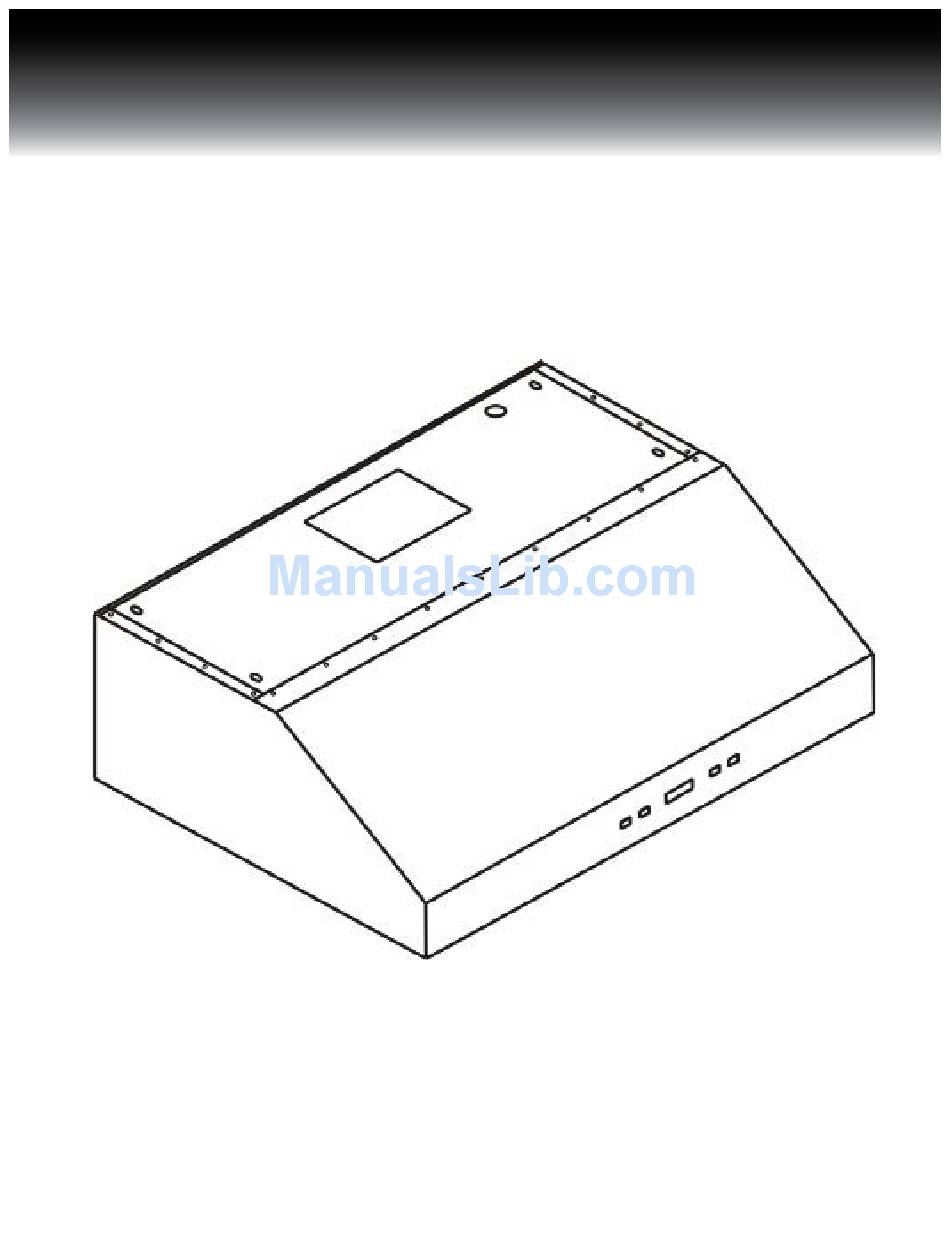

- Page 1 Installation Guide and Users Manual VICTORY Professional Range Hood IMPORTANT: Read and save these instructions. Model number: NOTICE: available sizes: 30”, 36” Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Under Cabinet Range Hood...
-
Page 3: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction. • DO NOT attempt to install this appliance yourself. Injury could result from installing the unit due to lack of appropriate electrical and technical background. • Range hood may have very sharp edges; please wear protective gloves if it is necessary to remove any parts for installing, cleaning or servicing. • Activating any switch ON before completing installation may cause ignition or an explosion. • Due to the size and weight of this range hood, two people installation is recommended. To reduce the risk of fire, electric shock, or injury to persons: • For general ventilating use only. DO NOT use to exhaust hazardous or explosive materials and va- pors. - Page 4 Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: • SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn OFF the burner. BECAREFUL TO PREVENT BURNS. NEVER PICK UP A FLAMING PAN—you may be burned. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames DO NOT go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT or dial your local emergency service immediately.
-
Page 5: Table Of Contents
Table of Contents INSTALLATION USE AND CARE Tools needed............3 Troubleshooting...........13 Parts supplied...........4 Use and care information.......14 Venting requirements........5 Specifications..........14 Mount heights & clearance......5-6 Measurements & Diagrams......15-16 MAINTENANCE Calculating vent system length.......6 Venting methods..........7 Cleaning..........17 Electrical requirements........8 Replacing the filter & light bulb.....17 WARRANTY Preparation............9 Installation..........10-11 Coverage & exceptions........18 Range hood operations........12 Disclaimer & Contact Us.......19 Tools needed: Measuring Marker or tape Utility knife pencil Level Flat-blade Powered and Phillips screwdriver screwdrivers... -
Page 6: Parts Supplied
Parts supplied: Under Cabinet Range Hood Stainless Steel Baffle or Flappers Aluminum Filter(s) Qty: 4 PCS Qty: 4 PCS (For sheet rock only) Round Exhaust Qty: 6 PCS Page 4... -
Page 7: Venting Requirements
Venting Requirements Height & Clearance • Vent system must terminate to the outside (roof or side wall). • DO NOT terminate the vent system in an at- tic or other enclosed area. • DO NOT use 4” (10.2 cm) laundry-type wall caps. Cabinet • Use metal/aluminum vent only. Rigid metal/ Cabinet Height aluminum vent is recommended. • DO NOT use plastic vent. • Always keep the duct clean to ensure proper airflow. -
Page 8: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Flexible 6” round duct provided for convenience, always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. • Please use Duct Run Calculation below to compute the total available duct run when using elbows, transitions and caps. • ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size from 6” to 7” or 8”. If a reducer is used, install a long reducer instead of a pancake reducer. Reducing duct size will restrict airflow and decrease airflow, thus reduce duct size as far away from opening as possible. • If turns or transitions are required: Install as far away from opening and as far apart, between 2, as possible. • Minimum mount height between stove top to hood bottom should be no less than 28-inch*. • Maximum mount height between stove top to hood bottom should be no higher than 31-inch*. • It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will loose its performance and efficiency. • If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood mounting height above range. -
Page 9: Venting Methods
Venting Methods • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. • Use metal/aluminum duct work only. • Fasten all connections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape. • Use caulking to seal exterior wall or roof opening around the cap. Horizontal wall venting Option 1: Option 2: Side wall cap Vertical roof venting Roof cap Page 7... -
Page 10: Electrical Requirements
Electrical Requirements IMPORTANT: Observe all governing codes and ordinances. (Please consult with a qualified electrician for 220-Volt 50 Hz voltage) It is the customer’s responsibility: • To contact a qualified electrical installer. • To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/ NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22. 2 No. 0-M91 - latest edition** and all local codes and ordinances. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. DO NOT ground to a gas pipe. -
Page 11: Preparation
Preparation WARNING Advanced Preparations: • Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 12-13. • Place the range hood on a flat, stable surface. Connect the Excessive Weight range hood to a designated standard outlet (please refer the Require three or more person to move and product label for the suitable voltage of this unit) and turn on install this range hood. Spinal or other bodily the range hood. Verify all operations of the range hood by injuries could occur if it is not followed. referring to Range Hood Operations, Page 12-13. -
Page 12: Installation
Installation Installations (refer to Page 4 for parts): Measure the distance between stove top and the bottom of range hood. A distance of 27” to 30” is recommended*. *Due to different ceiling height configurations, recommended height may not be applicable. 1. You have two ways (A: Vertical Venting, or B: Horizontal Venting) to mount this range hood: Determine venting method as shown on Page 7 and proceed if you would like to vent vertically. Using references in Height & Clearance on Page 5-6, Measurements and Diagrams on Page 17-18, Figure 3 and Figure 4 on next page, determine and clearly mark a centerline on the bottom of the cabinet. -
Page 13: Installation
Installation (Continued) Figure 3 Figure 4 Figure 5 Page 11... -
Page 14: Range Hood Operations
Range Hood Operations Elec. Control Panel Layout and Buttons Power Light Decrease Value Increase Value Blower Power Indicator Power-On Elapsed Digital Timer Blower Speed Indicator Power-Off Delay Digital Timer Light Power Indicator Power-Off Delay Timer Indicator This range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking is completed to clear all smoke and odors from the kitchen. • Button functions: • Power: Power ON/OFF the range hood and activate power-off delay timer. • Decrease Value: Blower (motor) speed decrease, timer value decrease, and enter timer mode. • Increase Value: Blower (motor) speed increase timer value increase, and cumulative timer reset. • Blower Power Indicator: Lights up when blower (motor) is running. • Blower Speed Indicator: Shows current blower (motor) speed (1-6). • Light Power Indicator: Lights up when lights turned on. • Light: Turns ON/OFF and dim halogen lights. • Power-On Elapsed Digital Timer: Indicates the accumulated time the system is running. - Page 15 Range Hood Operations (Continued) Elec. Control Panel Layout and Buttons Power Light Decrease Value Increase Value Blower Power Indicator Power-On Elapsed Digital Timer Blower Speed Indicator Power-Off Delay Digital Timer Light Power Indicator Power-Off Delay Timer Indicator • Controls: • Adjusting the timer function: • While the blower (motor) is not running, press and hold Decrease Value button over 3 seconds to enter timer mode. Adjust to desired period of delay off timer by pressing Increase Value or Decrease Value button (minimum 1 minute to maximum 15 minutes). This setting will be saved immediately. • Activating the timer function: • While the blower (motor) is running, press and hold Power button for over 3 seconds to activate delay off timer. Power-off delay indicator will lit up and power-off delay digital timer will begin to countdown, when it reaches zero, the blower (motor) will shut down.
-
Page 16: Wiring Diagram
Wiring Diagram Six Speed with Type GU10 Bulb Six Speed with Type MR16 Bulb Page 14... -
Page 17: Troubleshooting
Troubleshooting 1. If the range hood or halogen light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected. • Swap out light assembly to working ones to determine whether it is caused by defective bulbs. See Replacing the light bulbs on Page 19. 2. The range hood vibrates when the blower is on: • The range hood might not have been secured prop- erly on to the ceiling or wall. -
Page 18: Use And Care Information
Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. • NEVER dispose cigarette ashes, ignitable substances, or any foreign objects into blowers. • NEVER leave cooking unattended. When frying, oil in the pan can easily overheat and catch fire. The risk of self combustion is higher when the oil has been used several times. • NEVER cook on “open” flames under the range hood. Check deep-fryers during use: Superheated oil may be flammable. Cleaning: • The saturation of greasy residue in the blower and filters may cause increased inflammability. Keep unit clean and free of grease and residue build-up at all times to prevent possible fires. • Filters must be cleaned periodically and free from accumulation of cooking residue (see cleaning instructions on Page 19). Old and worn filters must be replaced immediately. -
Page 19: Measurements & Diagrams
Measurements and Diagrams • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. Overall: Page 17... -
Page 20: Measurements & Diagrams
Measurements and Diagrams (Continued) • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. Rear Knockout Holes: Page 18... - Page 21 Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces: • Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent (e.g. Comet Power Scruv , EZ-Off oven cleaner), or steel wool/scoring pads, which will scratch and damage the stainless steel ® ® surface. For heavier soil use liquid degrease such as “Forumla 409 ” or “Fantastic ” brand cleaner. ®...
- Page 22 Warranty TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty. One Year Parts Warranty: For one year from the date of original purchase, your local reseller will provide free of charge, non-consumable replace- ment parts or components that failed due to manufacturing defects. Subject to the conditions and limitations set forth below, your local reseller will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials. Repaired parts or replacement products will be provided by your local reseller on an exchange basis, and will be either new or refurbished to be functionally equivalent to new. The consumer is re- sponsible for all shipping costs. Consumable parts not covered by this warranty include but not limited to: Light bulbs, metal, aluminum and charcoal filters. Who is Covered: This warranty is extended to the original purchaser for products purchased for ordinary home use. This Warranty Will Be Voided When: Product damaged through negligence, improper installation, accident, abuse, misuse, natural disaster, insufficient or excessive electrical supply, abnormal mechanical or environmental conditions, or any unauthorized disassembly, repair, modification, or failure to follow installation instructions. When product is used commercially or other than its intended purpose. Damaged because of improper connection with equipment of other manufacturers. Repaired or modified by anyone other than your local reseller’s authorized agents. This limited warranty also does not apply to any product on which the original identification information has been altered, obliterated or removed, has not been handled or packaged correctly or has been sold as second-hand. What is Not Covered: Consumable parts such as light bulbs, metal and charcoal filters. The natural wear of finish, and wear due to improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products. Chips, dents or cracks due to abuse, misuse, freight damage, or improper installation. Damage of product caused by accident, fire, floods or act of God. The manufacturer and/or distributor/reseller is not liable for, and does not cover under warranty, any loss of...
- Page 23 Disclaimer Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately. Failure to do so may result in the denial of your claim. The carrier will furnish you with necessary forms for filing a claim. Damages caused during transit are not covered under our warranty. Please contact us to file an insurance claim. Please inspect contents of package(s) carefully upon receiving! We must be notified of any damages and/or missing parts within five (5) days upon your receipt of package(s). Claims will not be accepted after five (5) days. NOTE: Items were thoroughly tested and carefully packed in our factory before shipping. Products must be returned in good working condition with ALL original parts and documentation packed in ALL original cartons, fillers and shipping cartons. A restocking fee of 15% will be charged for all approved return(s). Exchanges or returns may not be accepted if any packaging is missing. Make sure to inspect the hood for damages and defects before installation. Appearance flaws of the hood found after installation and not affecting hood performance is not covered under our warranty for returns or exchang- es. Service visits not covered under warranty will carry a service charge. Before Installation: Return for exchange or refund (please see above for acceptable returns). After Installation: NO exchange or refund. Contact Us If you need any assistance, please contact your Spagna Vetro local reseller. Please have your order number and model of the range hood ready. This information will help them better respond to your request. If you need replacement parts, we recommend that you only use genuine parts. Our accessories and parts are engineered and designed specifically for this series of range hood, each is rigorously tested assuring the utmost in durability and reliability, providing a factory match, factory-installed appearance and functionality tailored to each individual range hood model. Page 21 The information in this document is subject to change without notice, please contact your local reseller for updated details.
- Page 24 VICTORY range hoods for professionals 7272 Buller Ave Burnaby BC V5J4S3 Canada...
