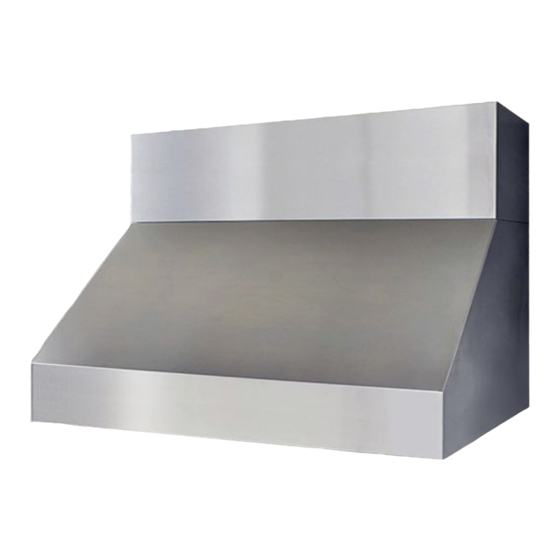

Professional wall-mount range hood

Advertisement

Quick Links

INSTALLATION GUIDE
AND USERS MANUAL
Professional Wall-Mount Range Hood
HURRICANE
Model Name:
Available Sizes:
30", 36", 42", 48", 60"
NOTICE:
For residential use only.
Installer: Leave this guide with the homeowner.
Homeowner: Keep this guide for future reference.
www.victoryrangehoods.com
Rev.20221018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HURRICANE 30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Victory HURRICANE 30

  • Page 1 INSTALLATION GUIDE AND USERS MANUAL Professional Wall-Mount Range Hood HURRICANE Model Name: Available Sizes: 30”, 36”, 42”, 48”, 60” NOTICE: For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference. www.victoryrangehoods.com Rev.20221018...
  • Page 2: Table Of Contents

    Venting Methods................22 Wiring Diagram................. 25 Range Hood Operations..............25 Troubleshooting................26 Do’s and Don’ts for Duct Venting............ 27 Use and Care Information..............27 Maintenance..................28 Bulb Replacement................29 Warranty..................... 31 Disclaimer..................32 Contact Us..................32 VICTORY range hoods | HURRICANE...
  • Page 3: Important Safety Notice

    • Use high settings on cooking range only when necessary. • Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. VICTORY range hoods HURRICANE | 3...
  • Page 4 The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. VICTORY range hoods | HURRICANE...
  • Page 5: Electrical Requirements

    (at the range hood and at the junction box). Copies of the standards listed may be obtained from: * National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575 VICTORY range hoods HURRICANE | 5...
  • Page 6: Venting Requiremens

    If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood mounting height above range. Minimum Duct Size: • Round - 8” minimum • Round - 10” recommended/optional * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods | HURRICANE...
  • Page 7: Calculating Duct System Length

    4 x 35W or 6 x 35w GU10, 120V Dimmable (LED Optional) Venting Size Top or Back, 8 Inches Round or 10” (Optional) Warranty 5 YEARS ( parts warranty ) * Subject to change without notice, please contact Victory Range Hoods for details. VICTORY range hoods HURRICANE | 7...
  • Page 8: Required Tools

    Mounting Brackets (x2 for Models 30, 36, 42, 48) (x3 for Model 60) NOTE: Where necessary, additional screws will be needed for installation and added support, but are NOT included. Please review contents before installation. VICTORY range hoods | HURRICANE...
  • Page 9 (x2 for Models 30,36) (x3 for Models 42,48) Ø - 8” Transition (x4 for Model 60) Filter Handles (x4 for Models 30,36) (x6 for Models 42,48) (x8 for Model 60) HURRICANE Grease Tunnel RangeHood VICTORY range hoods HURRICANE | 9...
  • Page 10: Dimensions

    TOP VIEW Ø 10” Optional Transition Ø 8” ¾ ” 12” FRONT SIDE VIEW VIEW 18” 6” 24” Hood shown: Model-30 Please refer to next pages for available models and their respective dimensions BOTTOM VIEW VICTORY range hoods | HURRICANE...
  • Page 11 18” 6 ” ¾ 24” ” Optional Vent Size 10” 8”- Ø Transition 4” Model 36 Model 42 Model 48 12” 6 ” 18” Available in 35 ¾”, 41 ¾”, and 47 ¾” 24” VICTORY range hoods HURRICANE | 11...
  • Page 12 DIMENSIONS ( continued ) Model 60 10”- Ø Transition 6 ” 12” 18” ¾ ” 24” VICTORY range hoods | HURRICANE...
  • Page 13: Preparation

    2. Set aside the stainless steel baffle filters and grease tunnel until the range hood is properly installed. INSTALLATION OPTIONS OPTION 1: Free Standing OPTION 2: Under Cabinet a l l a l l VICTORY range hoods HURRICANE | 13...
  • Page 14: Option 1: Free Standing

    8”- Ø Transition shown Wall or roof vent may be installed in (10”- Ø optional) these areas but not recommended. HURRICANE Range Hood 30”, 36”, 42”, 48”, 60” Min: 28” Max: 36” Cooking Surface FRONT VIEW VICTORY range hoods | HURRICANE...
  • Page 15 CAUTION: Make certain the range hood is secure before releasing! For safety purpose, pre-drilled mounting holes are provided through the back of the hood. For a more secure installation, use as many mounting holes as needed to secure from the inside of hood. VICTORY range hoods HURRICANE | 15...
  • Page 16 Connect the range hood to a designated standard outlet and check the fan motor and lights are functioning. Be alert of any electrical hazards and refer to the product label for the suitable voltage of this unit. VICTORY range hoods | HURRICANE...
  • Page 17 (12”, 24”, 36”). Use M4-4mm screws to fasten Use 10” round steel pipe when using 10” - Ø cover to range hood. Transition. VICTORY range hoods HURRICANE | 17...
  • Page 18: Option 2: Under Cabinet

    8”- Ø Transition shown Wall or roof vent may be installed in these (10”- Ø optional) areas but not recommended. HURRICANE Range Hood 30”, 36”, 42”, 48” Min: 28” Max: 36” Cooking Surface FRONT VIEW VICTORY range hoods | HURRICANE...
  • Page 19 Connect the range hood to a designated standard outlet and check the fan motor and lights are functioning. Be alert of any electrical hazards and refer to the product label for the suitable voltage of this unit. VICTORY range hoods HURRICANE | 19...
  • Page 20 Use to the roof cut out for exhaust connecting duct. aluminum foil tape to make all joints secure and air tight. Use 10” round steel pipe when using 10” - Ø Transition. VICTORY range hoods | HURRICANE...
  • Page 21 SIDE VIEW Slide toward and into the recess behind the front of hood while raising the filter at the rear. Lower filter while sliding back until it rests onto Grease Tunnel. VICTORY range hoods HURRICANE | 21...
  • Page 22: Venting Methods

    Min height: 96” from bottom of duct to ground when range height to stove is 36” 36” typical Wall Vent Roof Vent * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods | HURRICANE...
  • Page 23 Motor Wall Vent Cap Power Outlet Optional Outdoor Min: 85” from floor Remote Blower Roof Vent Roof Vent with Remote Blower * Due to different ceiling height configurations, recommended height may not be applicable. VICTORY range hoods HURRICANE | 23...
  • Page 24 For best performance, a 10”- Ø transition and round duct must be used for rear- vent installations. Please contact Victory Range Hoods if you have any further questions. VICTORY range hoods | HURRICANE...
  • Page 25: Wiring Diagram

    The switch has 5 positions: OFF, SPEED 1,2,3,4. LIGHT SWITCH: Rotate the switches clockwise to switch the lights ON. The light switch allows you to control the intensity of the light Typical rotary switch via rotary dimmer. VICTORY range hoods HURRICANE | 25...
  • Page 26: Troubleshooting

    NO reducers or plenums in the duct work. • Refer to DO’s and DON’Ts for DUCT VENTING page for illustrative examples. NOTE: For all other inquiries, please contact Victory Range Hoods. VICTORY range hoods | HURRICANE...
  • Page 27: Do's And Don'ts For Duct Venting

    Disassembly is recommended to be performed by qualified personnel only. Read and understand all instructions and warnings in this manual before proceeding. NOTE: For all other inquiries, please contact Victory Range Hoods. VICTORY range hoods HURRICANE | 27...
  • Page 28: Maintenance

    Dry the filters and re-install before using the hood. Replacing Filters: • Should filters wear out due to age and prolonged use, please contact Victory Range Hoods to order replacement filters. VICTORY range hoods...
  • Page 29: Bulb Replacement

    Twist the connector cap off, and dislodge from electrical tether. LED Bulb is model: GU10. Contact Victory Range Hood and place an order, or you may purchase at your nearest hardware store. VICTORY range hoods...
  • Page 30 To re-assemble, simply reverse the steps press the bulb housing carefully and firmly into the recess, until you hear a positive snap. *Observe all safety precautions before you proceed to turn ON breaker and range hood to test for operation. VICTORY range hoods | HURRICANE...
  • Page 31: Warranty

    Victory Range Hoods. The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. VICTORY range hoods...
  • Page 32: Disclaimer

    583 Nicola Avenue, Port Coquitam, BC, Canada Toll Free: 1-800-394-4020 info@victoryrangehoods.com The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. VICTORY range hoods | HURRICANE...
  • Page 33 NOTES VICTORY range hoods HURRICANE | 33...
  • Page 34 583 Nicola Avenue | Port Coquitlam | BC | Canada | V3B 0M3 www.victoryrangehoods.com...
