Annex G - Connector Technology

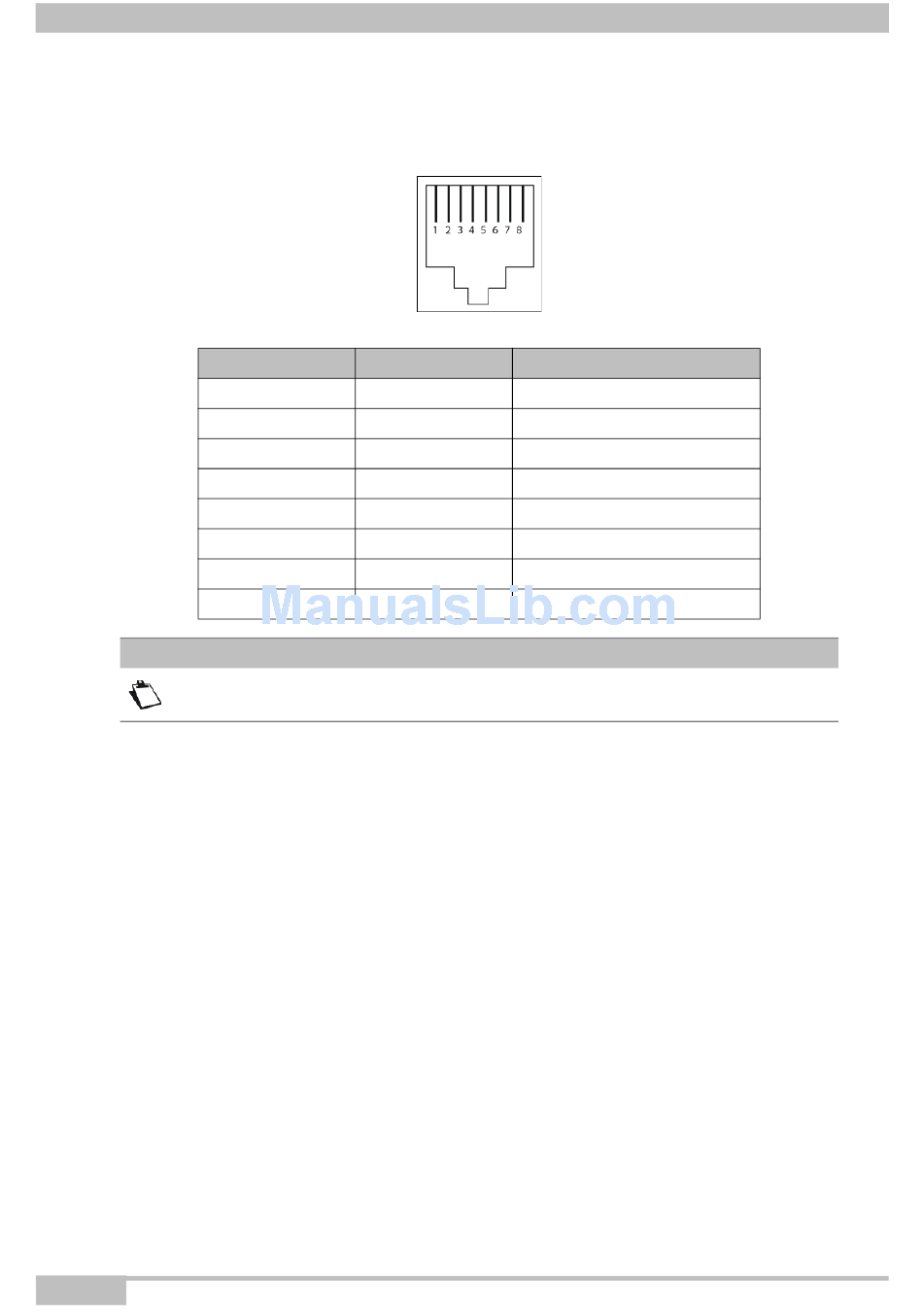

G.3 Pinouts of the LAN1, LAN2, LAN3 and LAN4 connectors
The Ethernet interface is connected to the equipment using a RJ45 fixed connector (8 pins).
Note
The Ethernet port is self-detecting. You can use either straight or crossed cables.
An emission or reception signal is detected automatically.
Page G-4
Contact No
1
2
3
4
5
6
7
8
Sagemcom Broadband SAS document. Reproduction and disclosure prohibited
Signal
TXD+ (+) Emission to terminal
TXD- (-) Emission to terminal
RXD+ (+) Reception of terminal
NC Not connected
NC Not connected
RXD- (-) Reception of terminal
NC Not connected
NC Not connected
Meaning
