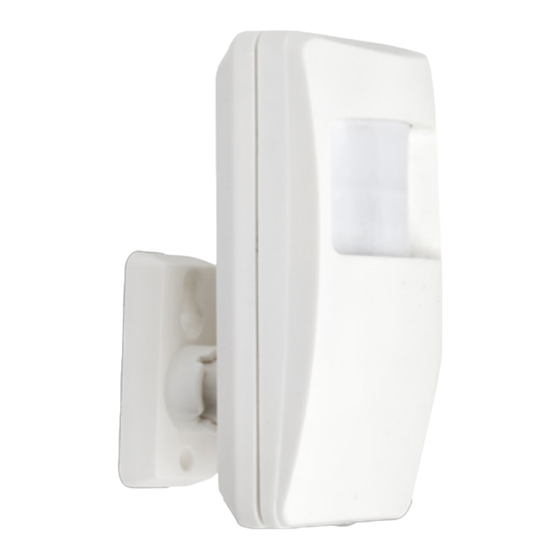

GSM ALARM SYSTEM
EPIR2
CONFIGURATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPIR2 and is the answer not in the manual?

Questions and answers

Related Manuals for Eldes EPIR2

Summary of Contents for Eldes EPIR2

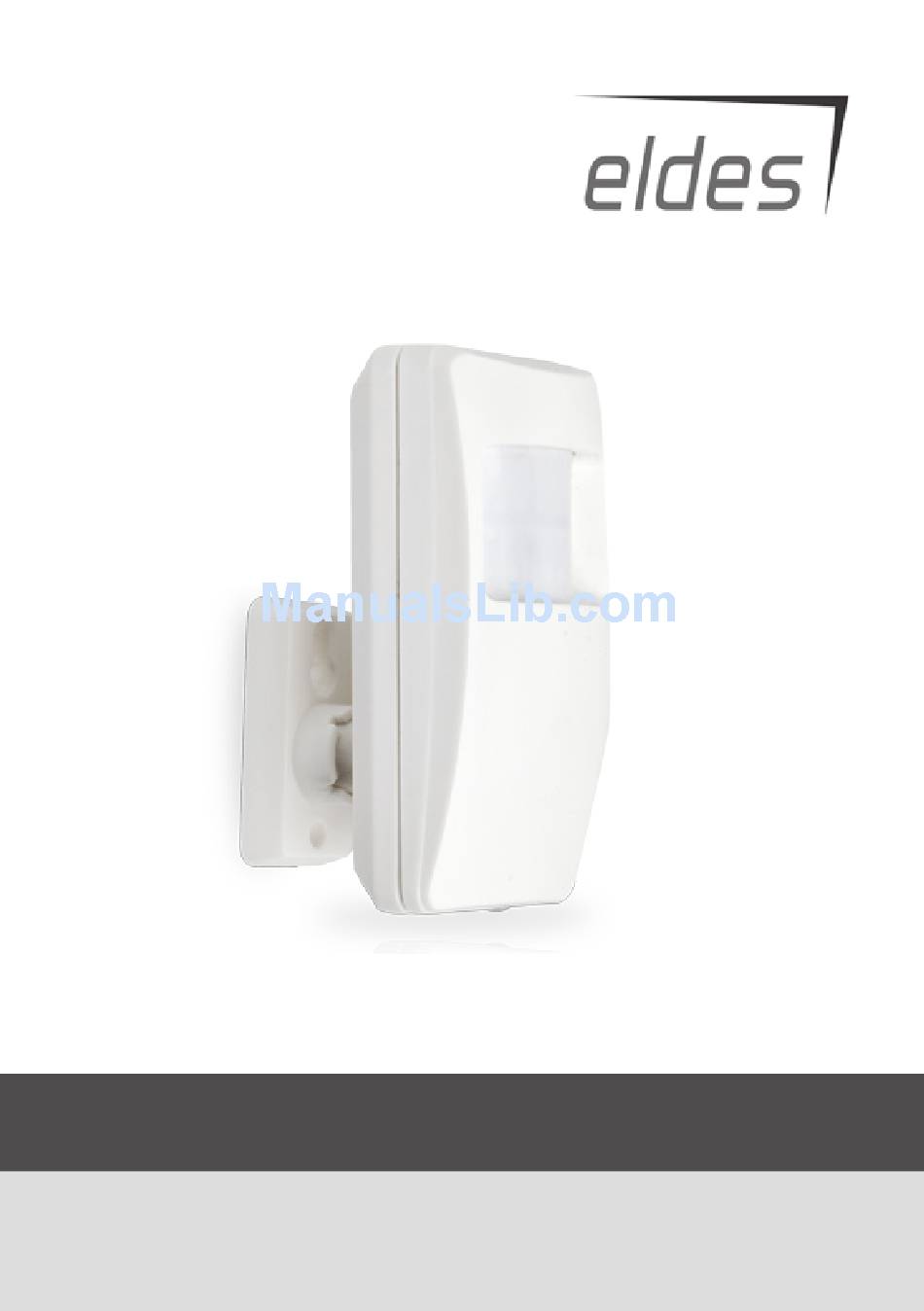

  • Page 1 GSM ALARM SYSTEM EPIR2 CONFIGURATION MANUAL...

  • Page 2: Table Of Contents

    Contents 1. General Information ....................................5 1.1 Protecting your home and property with the EPIR2 alarm system..........................5 1.2 Compatible Device Overview ........................................5 1.3 Default Parameters & Ways of Parameter Configuration ..............................5 2. Technical Specifications .................................7 2.1 Electrical & Mechanical Characteristics ....................................7 2.2 Main Unit Functionality ..........................................
  • Page 3 DO NOT attempt to repair the system yourself - any repairs must be carried out by fully qualified personnel only The EPIR2 comes with its own power supply unit so you can plug it in straight away. The unit is not meant for outdoor use, i.e.
  • Page 4 The buyer agrees that the system will reduce the risk of fire, theft, burglary or other danger but that it does not guarantee against the occurrence of such events. ELDES UAB will not take any responsibility for the loss of personal effects, property or revenue whilst using the system. The liability of ELDES UAB is limited to the value of the system purchased.

  • Page 5: General Information

    The EPIR2 is a convenient, easy to use, remote control security system for houses, cottages, country homes, garages and other buildings. It uses an internal SIM card (not supplied by ELDES) and an infra red sensor, and communicates with your mobile phone so you can: • Protect your property while you are away from home...
  • Page 6 Zones Configurable by: Parameter Default Value Configuration EKB3W Tool EKB3W Zone Status Disabled    Wireless Zone Status Enabled    Virtual Zone Status Disabled   Stay Mode for a Specified Zone Disabled   Tamper Name Box Tamper;...

  • Page 7: Technical Specifications

    Ademco Contact ID, EGR100, Kronos, Cortex SMS BELL+: siren output commuted values Current - 150mA max.; voltage - 15V (EPIR2 on external power supply) / 7V (EPIR2 on backup battery) * - with Smart Security disabled; with wireless transmitter-receiver module disabled...

  • Page 8: Main Unit Functionality

    Security zone terminal BELL+ Siren output positive terminal 1. EPIR2 holder for fixing on the wall 11. Back-up battery in case of mains power supply failure 2. Lens for movement detector and LED 12. Motion detector to sense possible intruders 3.

  • Page 9: Configuration & Control

    XXXX – 4-digit SMS password (the default SMS password is 0000 – four zeros). The system configuration and control can be performed by sending SMS messages to EPIR2 phone number, using EKB3W wireless keyboard, via USB connection locally or GPRS connection remotely using ELDES Configuration Tool software, which is recommended for quick and more convenient system configuration.

  • Page 10: Remote System Configuration Via Gprs Connection

    NOTE: The system can be configured using one keyboard at a time only. Other connected keyboards become inactive in Con- figuration Mode. Software ELDES Configuration Tool is intended to work directly with EPIR2 alarm system, which can be connected to the CONFIGU- computer via USB port or via GPRS connection remotely.

  • Page 11: Connecting To Eldes Configuration Server Using Eldes Configuration Tool Software

    After the system configuration is complete, use one of the following methods to end the con- Connection with figuration process: the Server Press Disconnect button and close ELDES Configuration Tool software; • • Wait for the system to reply with an SMS message confirming the end of the session;...

  • Page 12: Parameter Configuration Set (Sms, Ekb3W)

    - German [358#] - Finnish [359#] - French [3510#] - Spansih [3511#] - Slovak [3512#] - Czech NOTE: In order to change the SMS language in a configured system (after changing the SMS password), please, use ELDES Con- figuration Tool software.

  • Page 13: Passwords

    Replace User Password Enter parameter 63, old user password & new user password: EKB3W [63yyyyxxxx#] Value: yyyy – old user password, range – [0000... 9999]; xxxx – new user pass- word, range – [0000... 9999]. MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...

  • Page 14: User & Security Guard Phone Numbers

    Delete User This command erases a particular user password. It is possible to delete the password assi- gned to the same partition as the keyboard only. Password Enter parameter 65 & user password: [65xxxx#] EKB3W Value: xxxx – 4-digit user password, range - [0000... 9999] Set Administrator The 4-digit administrator password providing access to system configuration.

  • Page 15: Date & Time

    – hours, range – [00... 23], mm – minutes, range – [00... 59]. NOTE: When the alarm system is connected to a monitoring station the date and time are set automatically. The system re- trieves this information from the monitoring station. MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...

  • Page 16: Zones

    Set Zone Alarm Text values: Z1 - Alarm Zone1, Z2 - Alarm Zone2 etc. Alarm text can be edited by SMS or ELDES Configuration Tool software only. The length of zone alarm text for each zone can be up to 24 characters including space characters.
  • Page 17 (except EKB3W zones) are enabled. SMS text: XXXX_Zn:OFF Value: Zn – zone number, range – [Z1... Z34] Example: 1111_Z4:OFF Enter parameter 52 & parameter status value: EKB3W [52xx0#] Value: xx – zone number, range – [01... 34] MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...
  • Page 18 This command enables a particular zone. By default, all keyboard zones and virtual zones are Enable Zone disabled. Virtual zones can be enabled using ELDES Configuration Tool only. SMS text: XXXX_Zn:ON Value: Zn – zone number, range – [Z1... Z34] Example: 1111_Z3:ON Enter parameter 52 &...
  • Page 19 Exit Delay countdown or if none of the zones are configured to operate under Stay mode. By default, this feature is disabled for all zones. Enter parameter 56, zone number & parameter status value: EKB3W 56xx1# Value: xx – zone number, range – [01... 34]. MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...
  • Page 20 Disable Stay Mode Stay mode enables the users to arm and disarm the alarm system while staying inside the se- cured premises. The system goes into Stay mode in case the Delay zone is not violated during Attribute for a the Exit Delay countdown (the user does not leave the secured area) and the zones which are Specified Zone configured as Stay will not be secured.

  • Page 21: Wireless Pgm Outputs

    Wireless PGM Controll3, C4 – Controll4 etc. Output Name Wireless PGM output name can be edited by SMS or ELDES Configuration Tool software only. The length of each PGM output name can be up to 10 characters. SMS text: XXXX_Cn:NewOutputName Value: Cn –...
  • Page 22 Turn ON Wireless To instantly turn ON an individual PGM output for a determined time period and automatically PGM Output for turn it OFF when the time period expires, please refer to the following configuration method. Time Period SMS text: XXXX_Cn:ON:HH.MM.SS Value: Cn –...

  • Page 23: Alarm & Siren

    Bell Squawk feature enables the siren to provide 2 short beeps after the system is armed and 1 Enable Bell Squawk long beep after the system is disarmed. By default, this feature is disabled. Enter parameter 29 & parameter status value: [291#] EKB3W MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...
  • Page 24 This command disables Bell Squawk feature. Disable Bell Squawk Enter parameter 29 & parameter status value: [290#] EKB3W Enable Activate When the system is armed, the siren is activated in case of wireless connection loss between Siren if Wireless the alarm system and any wireless device. By default this feature is disabled. Signal is Lost Enter parameter 76 &...

  • Page 25: Info Sms

    Value: xx – SMS sending in hours, range - [1... 23]; yy - SMS sending frequency in days, range - [1... 99] This command disables Periodic Info SMS message. Disable Periodic Info SMS SMS text: XXXX_INFO:00.00 Example: 1111_INFO:00.00 Enter parameter 11 & parameter status value: [110000#] EKB3W MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...

  • Page 26: Alarm Notifications

    4.4.9 Alarm Notifications Disable Call in In case of alarm, the system makes a phone call to User 1. The phone call is made to the next user in a row in case the previous user was unreachable (was „out of radio coverage“ or provi- Case of Alarm ded engaged signal).
  • Page 27 This command enables alarm notifications for a specified user. Enable Alarm Notification for a Specified User Enter parameter 28 & parameter status value: [28xx0#] EKB3W Value: xx – user number, range – [1... 5] MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...
  • Page 28 Enable SMS In case of alarm, the system simultaneously sends SMS messages to all preset users with Alarm Notification in Case of Alarm for a Specified User feature enabled. By default, this feature to All Users is disabled. Simultaneously in Case of Alarm SMS text: XXXX_SMSALL:ON Example: 1111_SMSALL:ON...

  • Page 29: Arm/Disarm Notifications

    The system simultaneously sends SMS message to all users with Arm/Disarm SMS feature ena- Enable Arm/Disarm bled, after arming and disarming process (by any method). By default, this feature is disabled. SMS to All Users Simultaneously Enter parameter 22 & parameter status value: EKB3W [221#] MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...
  • Page 30 This command disables Arm/Disarm SMS to All Users Simultaneously Disable Arm/Disarm SMS to All Users Simultaneously Enter parameter 22 & parameter status value: [220#] EKB3W This command disables Arm/Disarm SMS message for Security Guard. By default, this feature Disable Arm/ is enabled.

  • Page 31: Main Power Supply & Backup Battery Status Notifications

    Enter parameter 19 & parameter status value: EKB3W [190#] This command enables notifications about main power status. Enable Battery Replacement SMS SMS text: XXXX_BATERPORT:ON Example: 1111_BATREPORT:ON Enter parameter 13 & parameter status value: [130#] EKB3W MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...

  • Page 32: Sms Message Delivery Report

    4.4.12 SMS Message Delivery Report Disable SMS The delivery report of SMS messages is required by the system as a confirmation that a certain Message Delivery SMS message was successfully delivered to the user. After disabling this feature, the system Report will send SMS messages to all preset users simultaneously despite the status of those SMS messages.

  • Page 33: System Control From Any Phone Number

    Enable LED Indication The LED indicator lights up whenever a movement is detected while the system is armed. By for Movement default this feature is disabled. Detection Enter parameter 78 & parameter status value: [781#] EKB3W MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...
  • Page 34 Disable LED This command disables LED indication for motion detection while the system is armed. Indication for Motion Detection Enter parameter 78 & parameter status value: [780#] EKB3W In some cases the system is installed in windy area where the air flow can cause false alarms. Set Motion In such cases sensitivity level can be reduced.
  • Page 35 This command allows to set speaker volume level. Default value is 85.This parameter is used Set Speaker Level for tweaking data transmission to monitoring station via Voice Calls only. Enter parameter 67 & speaker level: EKB3W [67xxx#] Value: xxx – speaker level, range – [00... 100] MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...

  • Page 36: Eldes Wireless Devices

    • EWS1, EWS2: every 7 seconds. ELDES wireless device ID number is necessary in order to add the wireless device to the sys- Add Wireless Device tem. The device ID number is indicated on the outter or inner side of the wireless device en- to the System closure.
  • Page 37 (except EWK1) and the system attempts to exchange data packets every 10 seconds (attempts to keep wireless con- nection alive). This leads to faster battery discharge of battery-po- wered ELDES wireless devices. MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...
  • Page 38 This command allows to retrieve the following information of a particular wireless device: wi- View Wireless reless device battery level, wireless signal level, error rate (number of failed data transmission Device Info attempts in 10-minute period) and firmware version. SMS text: XXXX_RFINFO:Zn XXXX_RFINFO:yyyyyyyy Value: Zn - zone number of wireless device, range –...

  • Page 39: Technical Support

    Zone LED 8 = 18 Zone LED 3 = 3 Zone LED 9 = 24 Zone LED 4 = 4 Zone LED 10 = 30 Zone LED 5 = 5 Zone LED 6 = 6 MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...

  • Page 40: Frequently Asked Questions

    This happens due to wireless connection loss. There might be several reasons: 4. One of wireless devices connected to EPIR system 1. ELDES wireless device is installed too close or too far from EPIR system. sends a tamper alarm from time to time, although 2. Interference of other electronic equipment.

  • Page 41: Troubleshooting

    7. Delete the .bin file located in this drive. 8. Copy and paste in the very same window. 9. After the copying is done, power down EPIR. 10. Unplug USB cable. 11. Power up EPIR. 12. Firmware upgraded. MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...

  • Page 42: Upgrading The Firmware Via Gprs Connection (Fota)

    ATTENTION: Comma character is NOT allowed to use in user name and firmware file name. ATTENTION: “ELDES UAB” does not run a FTP server and does not host the firmware files online. Please, contact ELDES technical support to request the latest firmware file: support@eldes.lt NOTE: It is strongly recommended to restore default parameters after the firmware upgrade.

  • Page 43: Monitoring Station

    ATTENTION: Phone calls to the user phone number in case of alarm and remote listening features are disabled by force when MS mode is enabled. MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...
  • Page 44 SMS/text message to user phone number. For more details on SMS/text message management, please refer to ELDES Configuration Tool software‘s HELP section. The following table provides the CID codes of events supported by EPIR2 alarm system: Seq. No.
  • Page 45 - Fire Zone Alarm/Restore [24101#] - Low Battery [24111#] - Temperature Exceeded [24121#] - Temperature Fallen [24131#] - Wireless Signal Loss/Restore [24141#] - Armed/Disarmed by User (Stay Mode) [24151#] - System Shutdown [24161#] - Armed/Disarmed Automatically [24171#] MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...

  • Page 46: Communication

    7.2 Communication The system supports the following communication methods аnd protocols: • GPRS network – EGR100, Kronos protocol. • Voice calls (GSM audio channel) – Ademco Contact ID protocol. • SMS – Cortex SMS format. Any communication method can be set as primary or backup connection. The user can set up to 2 backup connections in any se- quence order.
  • Page 47 Switches to BACKUP 4 Transmits all queued up data All attempts failed One of the attempts is successful Makes up to 3 or 5 attempts to transmit data Switches to BACKUP 3 All attempts failed MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...
  • Page 48 NOTE: 0 value disables delay after last communication attempt. NOTE: The system is fully compatible with Kronos NET/Kronos LT monitoring station software for communication via GPRS network. When using a different monitoring station software, EGR100 middle-ware is required. EGR100 is freeware and can be downloaded at www.eldes.lt...

  • Page 49: Gprs Network

    Value: addaddaddadd – DNS1 server IP address. Set DNS2 server IP address Enter parameter 42 & DNS2 server IP address: [42 add add add add #] EKB3W Value: addaddaddadd – DNS2 server IP address. MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...
  • Page 50 SMS text message content: Set protocol ssss_SETGPRS:PROTOCOL:ptc Value: ssss – 4-digit SMS password; ptc – protocol, range – [TCP... UDP]. Example: 1111_SETGPRS:PROTOCOL:UDP Enter parameter 43 & protocol number: EKB3W - TCP [430#] - UDP [431#] NOTE: Kronos NET/Kronos LT software communicates via TCP protocol, while EGR100 middle-ware v1.2 and up supports both – TCP and UDP protocols.
  • Page 51 Unit ID before using EGR100. Set unit ID Enter parameter 47 & unit ID number: EKB3W [47unid#] Value: unid – 4-digit unit ID number. View GPRS network SMS text : settings XXXX_SETGPRS? Example: 1111_SETGPRS? EKB3W MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...

  • Page 52: Voice Calls And Sms

    7.4 Voice Calls and SMS The system supports up to 3 monitoring station phone numbers for communication with the alarm system by Voice Calls or SMS communication method. Tel. Number 1 is mandatory, the other two can be used as backup phone numbers and are not necessary. The supported phone number formats are the following: •...
  • Page 53 MANUAL ELDES EPIR2 INSTALLATION MANUAL V1.3...
  • Page 54 Made in Lithuania. Ademco Contact ID is a registered trademark of Pittway Corporation. www.eldes.lt Microsoft, Windows and Vista are registered trademarks of Microsoft Corporation.
