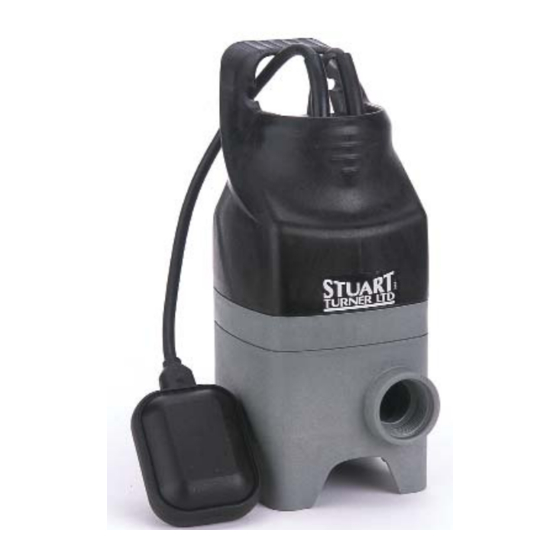

Stuart Turner Supersub 460A Operating Instructions Manual

Stuart Turner Supersub 460A Operating Instructions Manual

Submersible pumps

Advertisement

Submersible Pumps
OPERATING INSTRUCTIONS
Please leave this instruction booklet with the pump as it
contains maintenance and safety information.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Supersub 460A and is the answer not in the manual?

Questions and answers

Faye Magzi
March 7, 2025

Hello. I have just bought one of these pumps thinking that it will be ideal to empty my goldfish pond. Will it do the job ok, or Have i made a bad buy ? F.

1 comments:
Mr. Anderson
May 14, 2025

Yes, the Stuart Turner 460A pump can effectively empty a goldfish pond, provided it is fully submerged, positioned on a flat surface like a paving slab to avoid debris blockage, and no people or animals are in the water during operation. Ensure the float switch (if fitted) functions properly and that the pump is not sucking in air.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Stuart Turner Supersub 460A

  • Page 1 Submersible Pumps OPERATING INSTRUCTIONS Please leave this instruction booklet with the pump as it contains maintenance and safety information.
  • Page 2: Table Of Contents

    APPLICATION This pump set must not be used for any other application without the written consent of Stuart Turner Limited and in particular, must not be connected directly to the mains water supply or used outside the conditions specified in the limits of application.
  • Page 3: Product Description

    Model types within the range which have the suffix ‘A’ incorporate an adjustable float switch assembly which provides automatic pump control. An optional foam pre-filter is available for the Supersub model - contact Stuart Turner Ltd for further details. Supersub Range This model is suitable for clean water, rain water or waste water applications.
  • Page 4: Limits Of Application

    Continuous 155 Diver 3 230/1/50 IP68 Continuous 148 Diver 4 230/1/50 IP68 Continuous 148 Stuart Turner reserve the right to amend the specification in line with its policy of continuous development of its products. Fig. 1 (Dimension Key) - 4 -...
  • Page 5: Connections

    CONNECTIONS Supersub and Supervort pumps are supplied with a stepped hose connector which can be screwed into the pump outlet port. Diver pumps are supplied with a stepped hose connector and a non-return valve which should be screwed into the pump outlet port (Fig. 6). Pump Type Outlet Hose Connector...
  • Page 6: Siting Of The Pump

    SITING OF THE PUMP WARNINGS: Do not run against a closed valve for periods longer than 5 minutes. The water in and around the pump must not be allowed to freeze. This will result in pump damage. Do not under any circumstances use the supply cord fitted, as a means to carry or lower the pump into position on installation.
  • Page 7 The pump must never run dry, needing a minimum water depth of 90 mm on the Supersub model and 100 mm on the Supervort models, at all times. Adjustment of the float switch is achieved by lengthening or shortening the cable through the moulded cable retention slot, which is located in the pump handle (Figs 6 and Note: When inserting cable into slot ensure it is fully engaged.
  • Page 8: Pipework

    PIPEWORK WARNING Ensure pipework from pump is independently supported to prevent forces being transferred to outlet branch. General All models are supplied with a stepped hose connector (see pump connection section for details) which can be screwed directly into the pump discharge connection. The hose connector is suitable for a range of flexible hose sizes and can be cut to suit the selected size.
  • Page 9 Electrical Connection (Supersub & Supervort range) The motor is provided with a factory fitted supply cord and plug. This must be connected to the mains supply via a 13 Amp double pole switched, socket outlet in compliance with BS 1363-2. The socket outlet should be mounted in an easily accessible position and should be labelled if confusion is possible, to allow easy identification of the pump isolating switch.
  • Page 10 The pumps are fitted with a supply cord suitable for outdoor and underwater use. The cord specification is as follows:- Pump Type Cord Type Cord Length (m) Supersub 460A HO5RN-F3 G 0.75 mm² Supervort 550A HO5RN-F3 G 0.75 mm² Supervort 560A HO7RN-F3 G 1 mm²...
  • Page 11: Noise

    For Further Technical Support Note: When pumps are installed in OEM equipment, please contact the OEM manufacturer for advice. Phone the Stuart Turner support line on 01491 572655. Our staff are trained to help and advise you over the phone. MAINTENANCE WARNING The water in and around the pump must not be allowed to freeze.
  • Page 12 Supersub Range 1) Disconnect electrical supply before working on pump. 2) Release system pressure from pipework and remove pump from water (do not use cable to lift pump). 3) Clean integral primary and secondary inlet filter grilles using water pressure from a hose pipe (Fig.
  • Page 13 Diver Range 1) Disconnect electrical supply before working on pump. 2) Release system pressure from pipework and remove pump from water (do not use cable to lift pump). 3) Clean inlet filter grille using water pressure from a hose pipe. 4) Refer to commissioning section for instructions on re-starting pump.
  • Page 14: Trouble Shooting Guide

    Float switch not working Check the float switch by hand (do not (if fitted). attempt to dismantle float switch) for further advice contact Stuart Turner. Pump runs but no Low water level. Ensure the pump is fully submersed water is supplied.
  • Page 15: Environment Protection

    ENVIRONMENT PROTECTION Your appliance contains valuable materials which can be recovered or recycled. At the end of the products’ useful life, please leave it at an appropriate local civic waste collection point. - 15 -...
  • Page 16 This guarantee is in addition to the purchaser's rights under any legislation presently in force. In the event of a claim please telephone Stuart Turner Ltd. on 01491 572655 or return pump with accessories removed. Proof of purchase should accompany the returned unit to avoid delay in action.
