PARKING AID SYSTEM

When the gear selector lever is shifted into
0
system is activated and the sensors in the rear bumper detect the
1
distance to any obstacle. You can figure out the distance from the
obstacle to your vehicle by the alarming sound. The alarm interval
2
becomes faster as your vehicle approaches the object.
3
4
5
6
7
8
9
10
11
12

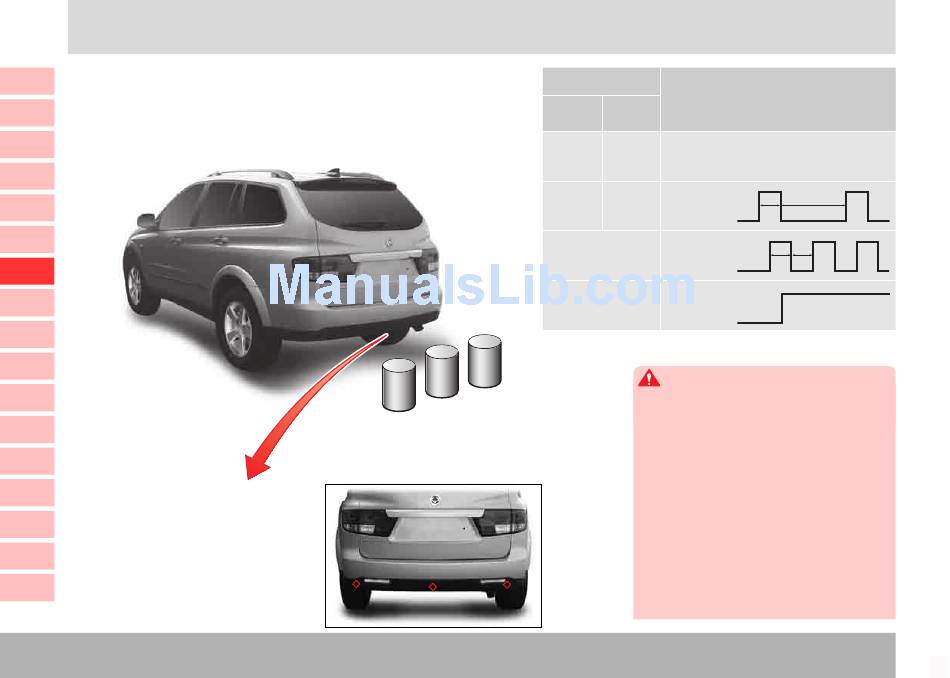

13 Obstacle Detecting Sensor
When you move the gear selector
14
"R"
lever to , the alarm sounds ac-
15 cording to the distance from ob-
stacle to vehicle.
16
6-24
TRANSMISSION AND BRAKE SYSTEM
"R"
, the parking aid
Distance
L/R C
sensor sensor
over over
no alarm
1.0 m 1.2 m
approx.
80 cm ~ 80 cm ~
100 cm 120 cm 0.26 sec
approx.
50 cm ~ 80 cm
0.13 sec
alarm
25 cm ~ 50 cm
stays on
CAUTION
• The alarm does not sound if the distance
between sensor and obstacle is less than
25 cm. However, if the sensor detects
the obvious obstacle, the alarm stays on.
• Do not rely on the parking aid system
while gear selector lever is in "R" position.
Drive backward while checking the rear
side of your vehicle.
• If the buzzer sounds abnormally or
sounds for over 3 seconds when plac-
ing the gear selector lever to "R" position,
the parking aid system is defective. Have
the system checked at Ssangyong Dealer
or Ssangyong Authorized Service center.
Alarm interval
65ms 195ms
65ms 65ms
