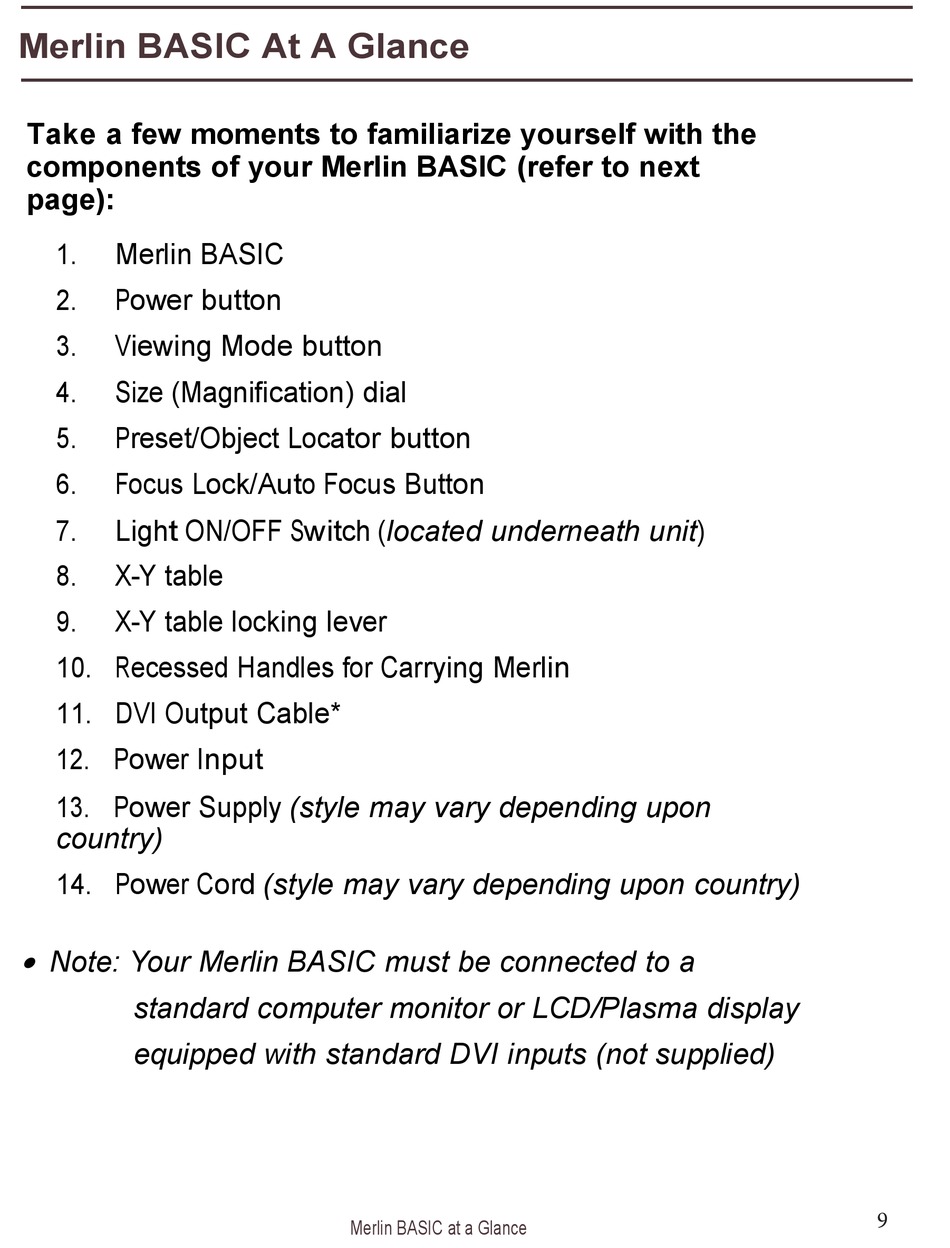

Merlin BASIC At A Glance

Take a few moments to familiarize yourself with the
components of your Merlin BASIC (refer to next
page):
1. Merlin BASIC
2. Power button
3. Viewing Mode button
4. Size (Magnification) dial
5. Preset/Object Locator button
6. Focus Lock/Auto Focus Button
7. Light ON/OFF Switch (located underneath unit)
8. X-Y table
9. X-Y table locking lever
10. Recessed Handles for Carrying Merlin
11. DVI Output Cable*
12. Power Input
13. Power Supply (style may vary depending upon
country)
14. Power Cord (style may vary depending upon country)

Note: Your Merlin BASIC must be connected to a
standard computer monitor or LCD/Plasma display
equipped with standard DVI inputs (not supplied)
