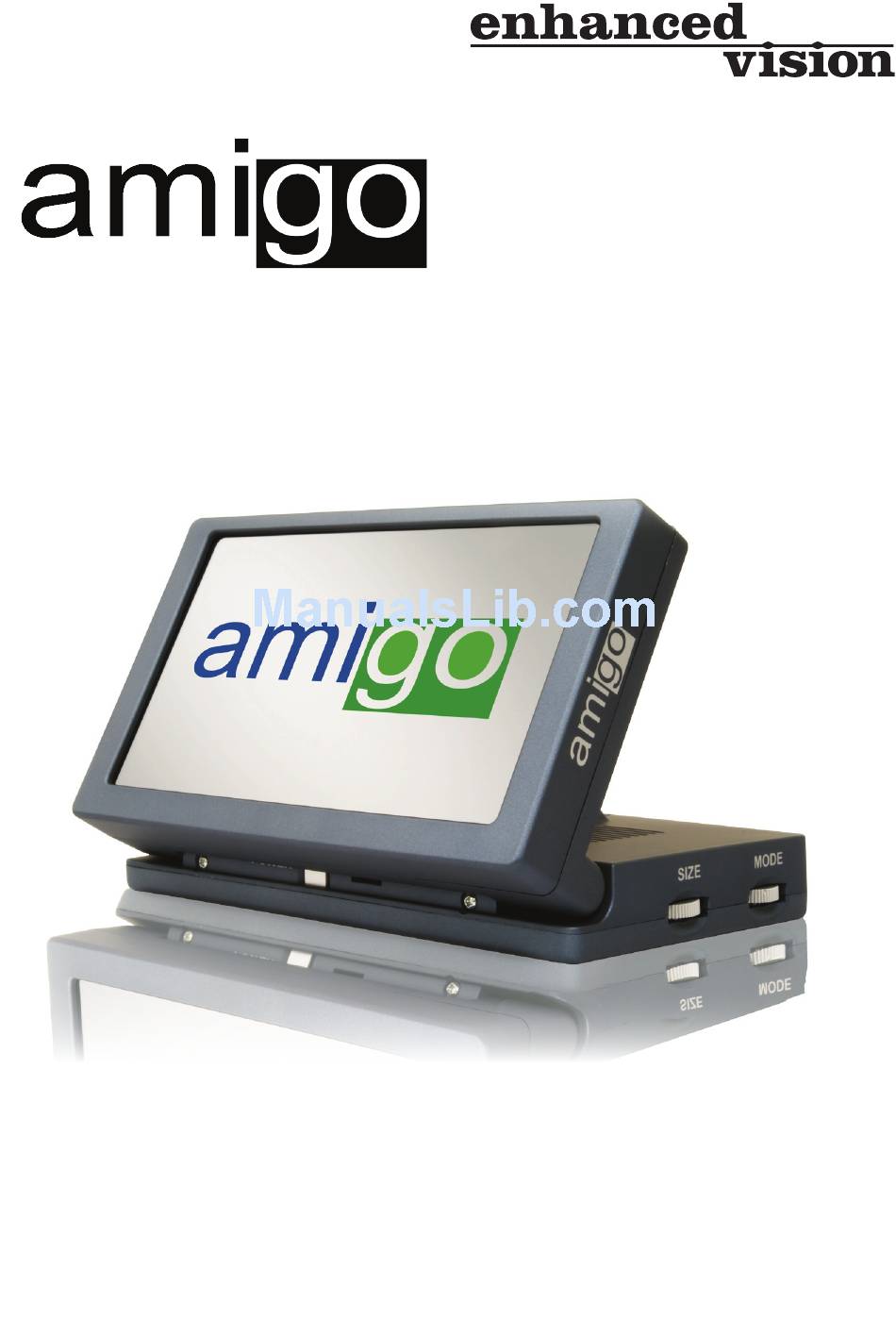

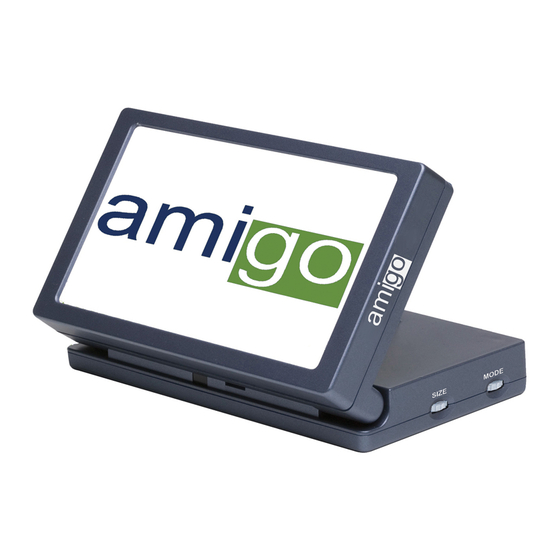

  • Page 1 High-Resolution. Light. Portable. Users Manual...
  • Page 2 Congratulations on your purchase of Amigo from Enhanced Vision. Like all Enhanced Vision products, Amigo is designed to give you the highest quality and convenience available. Amigo enables people with low vision to see objects on-the-go. This battery-operated system incorporates a 6.5”...
  • Page 3 FCC CoMplianCe notiCe This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    Chapter 5: tips for using the amigo Amigo ....... . . 14 Conserving the Battery .
  • Page 5 Warranty ......24-25 Chapter 11: enhanced Vision products Other Enhanced Vision Products ..26-28 Chapter 12: Contact information Contact Information .

  • Page 6: Chapter 1: Important Safety Precautions

    To obtain the maximum benefits from your Amigo, please read these safety precautions carefully. SYSteM WaRninGS The Amigo is designed to help people with low vision read and write. The extent to which Amigo can improve the ability to see images depends on an individual’s condition and level of vision.

  • Page 7: Caring For Amigo

    CaRinG FoR amigo Always turn the power OFF when you are not using the system. Make sure the power is OFF and Amigo is unplugged from the wall outlet before cleaning. Do not use liquid cleaners.

  • Page 8: Amigo Controls

    Content anD ContRol Your Amigo is packaged in a convenient soft case for storage and transport. All required accessories for operation are included inside the box. amigo is comprised of: 1. Power Button: turns the unit ON and OFF.
  • Page 9 Front View Side View Back View & C aCkage ontent ontrol hapter...

  • Page 10: Amigo Contents

    11. Carrying Case with Shoulder Strap 12. Amigo 12 Volt Power Supply 13. Right Angle Power Supply Adaptor Plug (For export versions only. Style depends on country) 14. Video Out Cable 15. Lens Cloth 16. Writing Stand 17. External Battery Charger 18.

  • Page 11: Chapter 2: Package Contents & Controls

    & C aCkage ontents ontrols hapter...

  • Page 12: Chapter 3: Quick Start

    QUiCk StaRt Here are some of the things you can do with Amigo. • Read • Write • Freeze images The following steps will give you a quick start on using the Amigo. 1. turn the power on /oFF Press and hold the Power button for more than 1 second.

  • Page 13: Chapter 4: Using Amigo

    This may take up to three hours. Charging the battery inside amigo: Your amigo will emit a series of short "beep" tones when less than 10 minutes of battery power remain. Follow the steps below in order to charge the battery: 1.

  • Page 14: Adjust Size & Viewing Modes

    Right Angle Power Supply Plug. (see Figure 1 Figure 1) 2. Connect the Power Supply tip to the Amigo as shown. (see Figure 2) 3. Plug the power supply into an AC wall outlet or preferably a power strip.
  • Page 15 Amigo has the following 6 Viewing Modes: Full Color image This mode gives a true color representation of the image that is being displayed. This mode is ideal for looking at pictures and writing. Black & White image Based on your preference, you can choose the Black &...

  • Page 16: Using Freeze Feature

    Using the Freeze Function FREEZE allows you to take a temporary picture of an image. This enables you to move the unit to better view the desired object. Figure 1 1. Hold or place the unit over desired location. 2. Press and hold the “FREEZE” button for 2 seconds. (see Figure 1) to freeze the image 3.

  • Page 17: Tightening Lcd Hinge

    1. Place the writing stand over the desired material. The tallest portion of the stand should face you. 2. Turn the Amigo ON. Gently set the Amigo into the stand with Power Button facing you. Tilt the LCD toward you.

  • Page 18: Chapter 5: Tips For Using The Amigo

    Note: Never allow the battery to completely drain. tips for Using amigo Amigo works best when placed directly on desired material. This allows you to change viewing modes and magnification with ease. Tilting the Amigo allows you to view images at a comfortable angle.

  • Page 19: Replacing & Recharging The Battery

    ReplaCinG tHe BatteRY ReMoVinG anD inStallinG tHe BatteRY Removing the Battery from the amigo: The battery is located in the battery compartment. To remove, push down on the small tab of the battery compartment and slide the battery out. (see Figure 1)

  • Page 20: Charging The Battery

    CHaRGinG tHe BatteRY to Charge the Battery on the external Charger: 1. Remove the battery from the Amigo. (see page 15) 2. Plug the external battery charger (see page 7, items 17 & 18) into an available AC outlet. 3. Place the battery on the...

  • Page 21: Chapter 7: Connecting To Tv

    ConneCtinG to tV Connecting amigo to a tV To connect the Amigo to a TV you will need to use the included Video Cable (see item #14 on page 7). 1) Plug one end of the Video Cable into the “VIDEO OUT”...

  • Page 22: Chapter 8: Troubleshooting

    4. If the power does not turn on when using the battery, try using the Amigo with the power supply (see Using Amigo with Power Supply on page 10). In this case, it is most likely that the battery needs to be charged.
  • Page 23 2. Hold or place Amigo directly on the target material that is to be read. Amigo is designed to be in focus when positioned on the target material. 3. If using the Writing Stand, some level of blurriness is unavoidable.
  • Page 24 A distinct click feeling should be felt. The Battery does not charge inside the Amigo: Make sure the Amigo Power Supply is used with the unit. Verify that the battery is properly inserted. The LED on the Amigo should be blinking if the battery is not full. amigo will recharge batteries which are either fully or partially depleted.

  • Page 25: Troubleshooting

    If this ever happens, use a small Phillips screwdriver to adjust the swivel tension (see page 13). Unit is warm: Amigo integrates a battery charger and a powerful camera processing unit. It is normal for the unit to become warm during use. This does not pose a safety risk.

  • Page 26: Specifications

    SpeCiFiCationS Horizontal Field of view: - 37mm (maximum) Magnification levels: - 3.5X, 5.3X, 7X, 10.X, 14X (using built-in 6.5" LCD) - 10X, 15X, 20X, 30X, 40X (using external 20" TV) native lCD Resolution: - 800x480 (384,000 pixels) lCD Brightness: lCD Contrast Ratio: - 500 cd/m2 - 400:1 image aspect Ratio:...

  • Page 27: Specifications

    ~1.75 hours per battery Video output: NTSC (or PAL, depending on model) Battery: Enhanced Vision Removable Li-Ion 7.2V L-series battery. Nominal capacity is 2200mAh. Note: Do not use a Sony NPF-550 battery or any battery that is lower than 2200mAh provided. For more information, please call Enhanced Vision.

  • Page 28: Chapter 10: Warranty

    Damage due to operation of Amigo with equipment not supplied by Enhanced Vision. f) Up to 3 dark or bright pixels that may appear on the Amigo LCD. All products manufactured by Enhanced Vision meet industry standard TFT LCD technology requirements.
  • Page 29 Enhanced Vision for detailed information. Service process In the event that technical support or repair service is needed, please contact your local Enhanced Vision representative or the Enhanced Vision warranty service center. If warranty service is required, please contact Enhanced Vision at (800) 440-9476 Monday through Friday, between 8 a.m.
  • Page 30 ViSion pRoDUCtS Merlin lCD – Easy to use! Merlin LCD is a video magnifier that pivots and swivels to the most comfortable viewing position. This product includes all the same features as the Merlin but with a sleek ergonomic design.

  • Page 31: Other Enhanced Vision Products

    ViSion pRoDUCtS acrobat – Low Cost Meets Versatility! The Acrobat’s innovative rotating camera design enables people with low vision to perform daily tasks more effectively. By rotating the camera, the user can read, write, self-view, and magnify images at any distance.

  • Page 32: Contact Information

    Magnification: 16X – 28X* *Maximum limit depends upon display size accessories: lithium Battery (aCC-0038-00) Additional batteries are available for your Enhanced Vision products (USB Bridge, Amigo and Jordy) Carrying Cases Convenient cases for storage and transport of all Enhanced Vision products.

  • Page 33: Chapter 13: Notes

    noteS otes hapter...
  • Page 34 noteS hapter otes...
  • Page 35 noteS otes hapter...
  • Page 36 The Amigo video magnifier is designed to enlarge and enhance images to improve the lives of people who have low vision. The extent to which Amigo can improve the ability to see images and text depends on a person's individual condition and level of visual impairment.
