Summary of Contents for ENHANCED VISION Merlin Basic

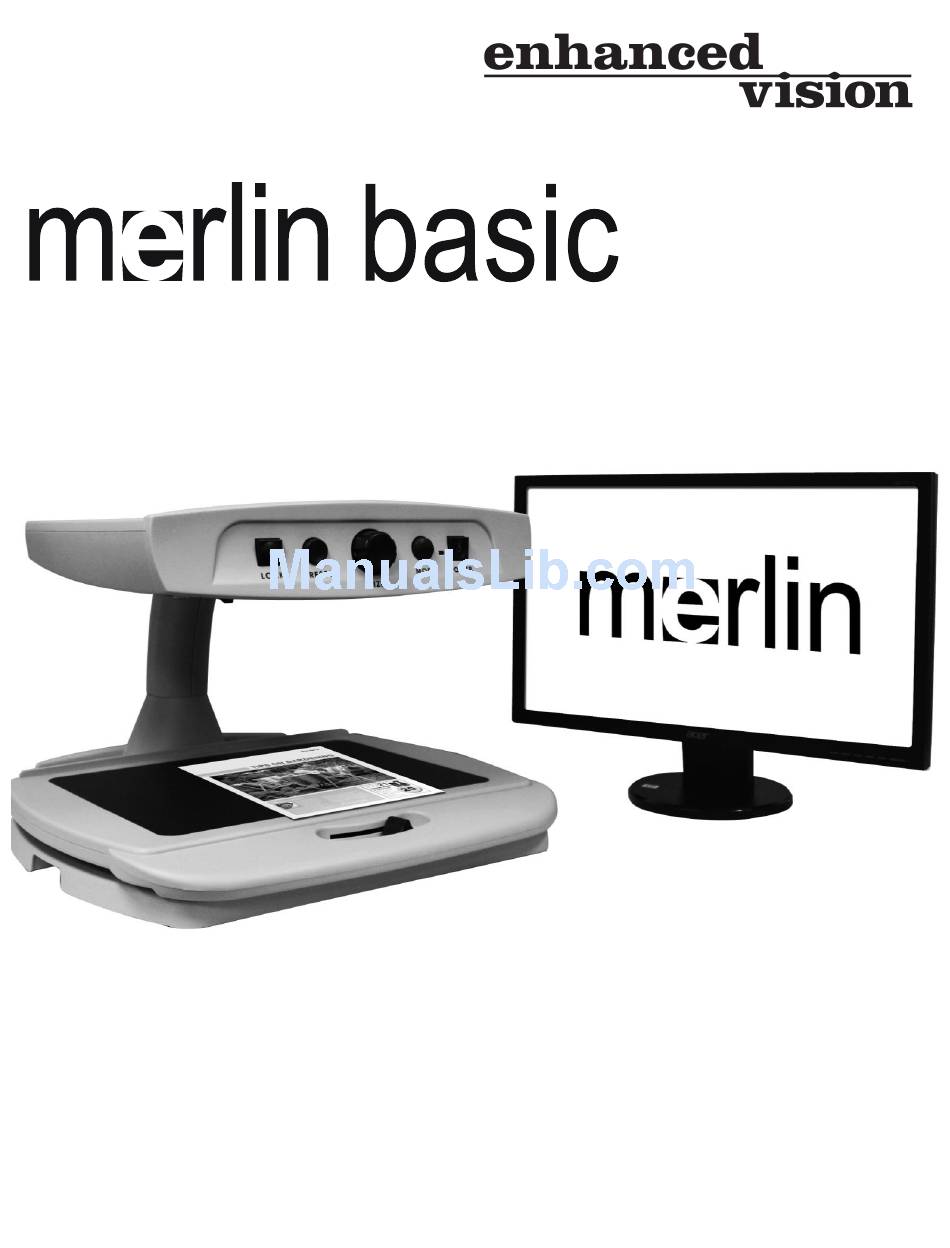

  • Page 1 BASIC User Manual Users Manual...
  • Page 2 Please read this booklet and familiarize yourself with Merlin BASIC features and operation before using this system. Your Merlin BASIC is ready to use once properly connected to a standard computer monitor equipped with a DVI input. By reviewing Merlin BASIC features and controls before using it and following the directions carefully, you’ll be able to enjoy all the...
  • Page 3 FCC COMPLIANCE NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Table Of Contents

    Setting Up Merlin BASIC ........

  • Page 5: Safety And Care

    • Follow all warnings, cautions, and instructions marked on the product. • Use the Merlin BASIC on a stable, level surface such as a solid desk or table, according to its intended design specifications. • Enhanced Vision does not recommend placing an LCD or...
  • Page 6 • Do not use the Merlin BASIC in, near or around water. The Merlin DVI is not designed to offer protection against contact with liquids of any kind.
  • Page 7 • Disconnect and secure all power and DVI cables and lock the X-Y table before moving the unit. • Carry Merlin BASIC only by the two recessed handles located on either side of its base. Do not carry it by the LCD monitor arm.

  • Page 8: Symbol Definitions

    • Always turn the power OFF for the Merlin BASIC and the monitor when the system is not in use. • At least once per week, clean the Merlin BASIC with a soft dry cloth or an electrostatic dusting wipe. DO NOT use liquid cleaners on its plastic surfaces.

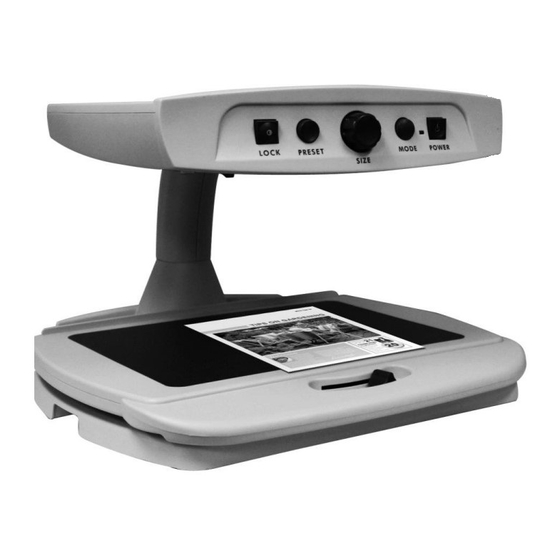

  • Page 9: Merlin Basic At A Glance

    13. Power Supply (style may vary depending upon country) 14. Power Cord (style may vary depending upon country)  Note: Your Merlin BASIC must be connected to a standard computer monitor or LCD/Plasma display equipped with standard DVI inputs (not supplied) Merlin BASIC at a Glance...
  • Page 10 Merlin BASIC at a Glance...

  • Page 11: Setting Up Merlin Basic

    Figure 1 2. Connect the DVI output cable of the Merlin BASIC to the DVI input on your external DVI monitor (see Figure 1). Connect the AC power plug of your monitor to an available wall outlet.

  • Page 12: Turning On Merlin Basic

    TURNING ON MERLIN BASIC Merlin BASIC power Button The Power button on your Merlin BASIC is located on the far right of the control panel (item #1 above). • Press the Power button. Notice the green light will illuminate on the Control Panel, indicating that the power is "ON"...

  • Page 13: Changing Viewing Mode

    CHANGING VIEWING MODES You can choose a viewing option by pressing the MODE button on the control panel. Each press will cycle through all 7 viewing options. The available viewing options are: • Full Color Image crisp, clear • Black and White Image text images! •...
  • Page 14 Enhanced Positive Image This mode provides a white background with black text. This mode increases the contrast to offer crisp text images for reading. Enhanced Negative Image This mode provides a black background with white text. This mode increases the contrast to offer crisp text images for reading. Color Select 1 This mode provides a blue background with yellow text.

  • Page 15: Using Color Select

    How to Program a Color Select Mode With Merlin BASIC turned ON, place a piece of reading material on the X-Y table so that it appears on your monitor at a magnification size that is comfortable for viewing. Follow these...
  • Page 16 Step 2: Rotate the SIZE dial to scroll through the available menu options. Choose COLOR SELECT (see the photo at right) and press COLOR SELECT the MODE button again. Step 3: Rotate the SIZE dial to choose the Color Step 2 Select number (1-5) you wish to program.
  • Page 17 Using the procedure outlined on pages 14-15, the following 28 color combinations can be programmed into any of the 5 color select programs, based on your personal preferences. Color Mode: Background color: Text color: notes: Black Green Black Yellow *Default color Select 3 Black Black Blue...

  • Page 18: Changing Magnification

    CHANGING MAGNIFICATION Figure 1 You can increase or decrease the size (magnification) of the image by using the SIZE dial located at the center of the Merlin BASIC control panel (see Figure 1). There are sixteen levels of magnification available on the Merlin BASIC.

  • Page 19: Focus Lock

    The words “Focus Locked” will appear and remain in the upper left corner of the monitor. In this mode, the Merlin BASIC will now keep your writing in focus, rather than your hand when it comes into the camera’s frame.

  • Page 20: Using The X-Y Table

    USING THE X-Y TABLE USING THE X-Y TABLE Locking the X-Y Table Locking the X-Y Table To lock the X-Y table, slide the lever all the way to the right until it To lock the X-Y table, slide the lever all the way to the right until it clicks and locks (A).

  • Page 21: Tips For Reading And Writing

    TIPS FOR READING AND WRITING TIPS FOR READING AND WRITING Reading with Merlin BASIC Reading with Merlin BASIC • New users of video magnifier systems have a tendency to over- • New users of video magnifier systems have a tendency to over- magnify their reading material.

  • Page 22: Programming Set-Up Options

    PROGRAMMING AND SETUP OPTIONS The Merlin BASIC can be programmed in its set-up mode. This allows you to customize your experience when using the Merlin BASIC. There are 5 options you can select within the programming set-up mode: • Exit •...
  • Page 23 Merlin BASIC will skip the availability of the Black & White Color Modes. From factory default, Black & White Mode is set to “ON” Color Select (on/off): If Color Select is set to OFF, the Merlin BASIC will skip the availability of the Color Select Modes. From factory default, Color Select Mode is set to “ON”...

  • Page 24: Using The Object Locator

    USING THE OBJECT LOCATOR Merlin BASIC's object Locator feature can help you quickly locate something you’re looking for on a page, or a specific part of an object you want to view more closely. To locate the desired object: 1. Press and hold the [PRESET] button. Merlin will automatically zoom out to the widest field of view, and a locator “target”...

  • Page 25: Programming Reference

    PROGRAMMING REFERENCE The Merlin BASIC has advanced capabilities for modifying the default language used within the setup menus. These settings are completely optional and should not be changed under normal circumstances. The chart listed below is for reference purposes only. Please see your Enhanced Vision representative or call our toll-free technical support should it be necessary for you to modify these settings.

  • Page 26: Programming Reference

    PROGRAMMING REFERENCE Merlin BASIC Programming Reference Programming Reference...

  • Page 27: Troubleshooting

    TROUBLESHOOTING 1. No power to Merlin BASIC • Press the Power button on the Merlin BASIC’s. A light next to the Power button should turn illuminate, indicating the power is on. • Make sure the power supply cord for the Merlin BASIC is completely plugged into the AC outlet.
  • Page 28 Replacement LED lights The lighting for your Merlin BASIC is provided by two 100,000- hour LED lights, designed to provide years of trouble-free service. However, in the unlikely event that the LED lights need replacement, please contact your place of purchase or Enhanced Vision at (800) 440-9476 for replacement information.

  • Page 29: Specifications

    SPECIFICATIONS General (Dimensions & Weight): Dimensions (base): 14.5"(H) x 19"(W) x 20.5"(D) (36cm x 48cm x 52cm) Weight: 23lbs. (10.4kg) Operating temperature range: 50-104°F / 10-40°C Storage temperature range: 32-122°F / 0-50°C Controls: Light Switch On/Off, Auto Focus/Focus Lock, Preset, Magnification, Mode, Power On/Off Magnification (based upon usage of a 19"...
  • Page 30 SPECIFICATIONS Color Modes: - 4 Default Modes (True Color, Black & White, Enhanced Positive, Enhanced Negative) - 5 Color Select Modes 3 Default Modes: (Yellow on Blue, Black on Yellow, Yellow on Black) 2 Programmable* Modes *Up to 28 Programmable Color Select Mode Combinations are available XY Table: XY table size: 16”...

  • Page 31: Other Products From Enhanced Vision

    OTHER PRODUCTS FROM ENHANCED VISION Amigo HD Amigo HD is a truly portable desktop magnifier. Optimal viewing is achieved with a tilting 7 inch viewing screen. Amigo HD provides 1.4x to 14x digital magnification and the lightest weight in its class. Amigo HD has an integrated battery and can be taken anywhere.

  • Page 32: Other Products From Enhanced Vision

    Transformer’s unique design is perfect for work, home or school. Weighing less than 3 pounds. Battery operated up to 4 hours. 28 custom color select modes. Magnification: 2..4X – 30X (based on 17” screen) Other Products From Enhanced Vision...

  • Page 33: Contact Information

    CONTACT INFORMATION Enhanced Vision manufacturers many different types of products tailored to meet the needs of our low vision customers. If you have questions about any of our products, please don't hesitate to give us a call. Contact information: (US office) phone: (714)465-3400...

  • Page 34: Warranty Statement

    Enhanced Vision warrants Merlin BASIC base against defects in materials and workmanship under normal use for three years from the date of original purchase. Enhanced Vision, at its option, will at no charge either repair the product or replace it during the warranty period.
  • Page 35 There are no other expressed or implied warranties accompanying this product. Service process We don’t expect that you will need to have repairs on the Merlin BASIC but if you do, you will need to send the unit to our warranty service center.
  • Page 36 The Merlin BASIC video magnifier is designed to enlarge and enhance images to improve the lives of people who have low vision. The extent to which Merlin BASIC can improve the ability to see images and text depends on a person’s individual condition and level of visual impairment.
