Summary of Contents for ENHANCED VISION Amigo HD

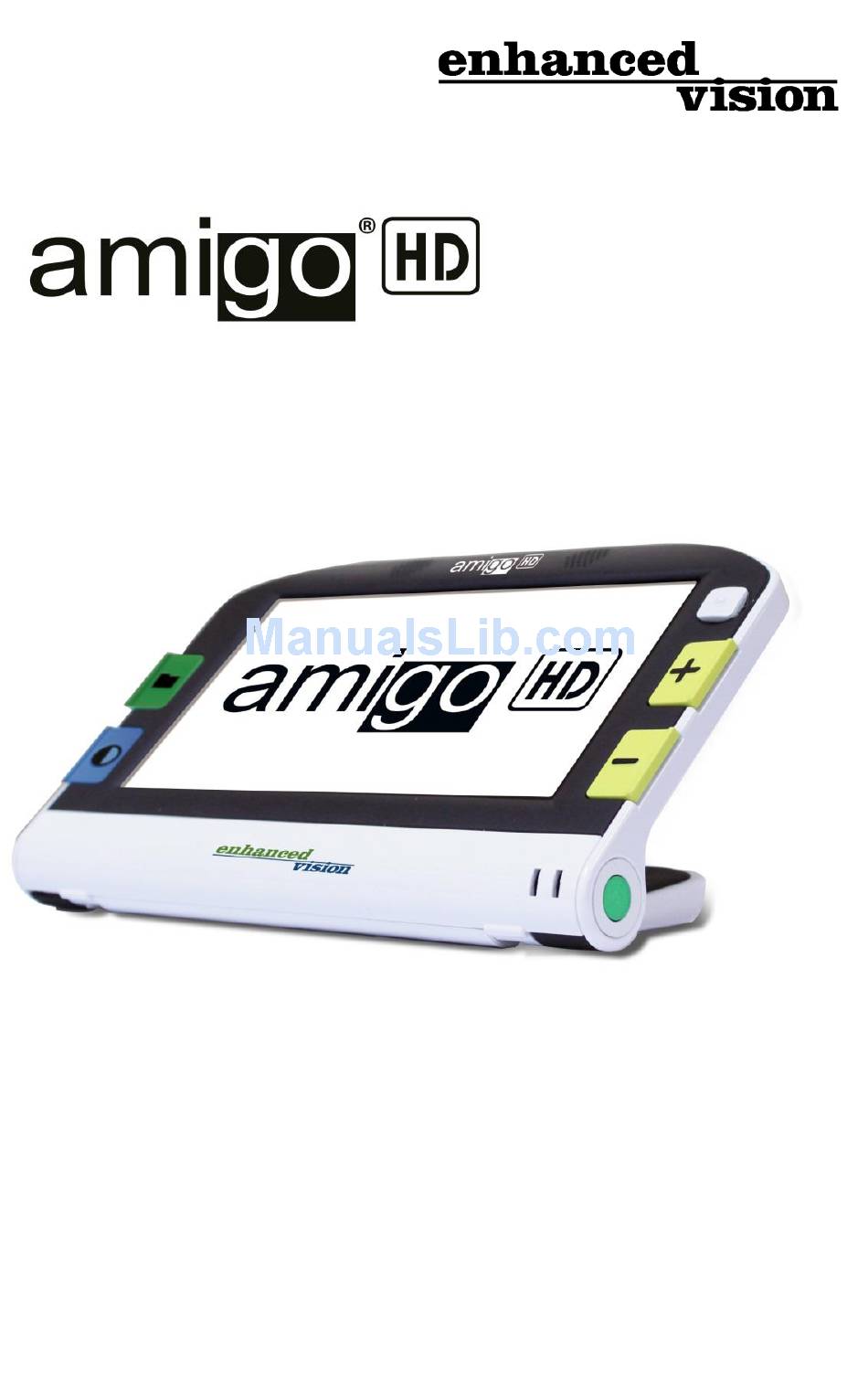

  • Page 1 User Manual...
  • Page 2 Weighing 1.3 pounds, Amigo HD features a uniquely- designed folding stand and has available Reading, Hobby and Distance Viewing modes. Small enough to fit on your lap or a table, the Amigo HD is the ideal companion to provide magnification, on the go or at home.
  • Page 3 FCC COMPLIANCE NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    Packaging Contents & Controls ..9-10 Chapter 3: Using the Amigo HD Using the Power Supply ....11-12 Charging the Battery .
  • Page 5 Display Time/Date ..... . 17 Using the Carrying Case ....18 Viewing Position .
  • Page 6 Warranty Information ....31-32 Chapter 8: Other Enhanced Vision Products Other Enhanced Vision Products ..33-35 Table of Contents...

  • Page 7: Chapter 1: Safety Precautions

    Please refer all service to an authorized repair facility.  Do not use the Amigo HD in, near, or around water. The Amigo HD is not designed to offer protection against contact with liquids of any kind.

  • Page 8: Transportation

    Please use care when connecting/ disconnecting cables and accessories. Care & Maintenance:  Always turn the power OFF on the Amigo HD when the system is not in use.  If needed, clean the surface of the Amigo HD with a soft damp cloth or an electrostatic dusting wipe.

  • Page 9: Chapter 2: Package Contents & Controls

    PACKAGE CONTENTS & CONTROLS Please refer to the illustrations on the next page to identify the package contents and controls of your Amigo HD. In addition to this users guide, you’ll find the following items inside the box: 1. Amigo HD 2.
  • Page 10 Chapter 2 Package Contents & Controls...

  • Page 11: Chapter 3: Using The Amigo Hd

     The included AC adaptor/power supply  Integrated rechargeable battery (included) Your Amigo HD is packaged with the integrated battery partially charged. We highly recommend that you charge the Amigo HD prior to using the device for the first time. (See Page 13 for charging indicator light status) ...
  • Page 12 POWER SUPPLY Included within your Amigo HD box (International orders ONLY) are multiple inserts for the outlets of various countries. 1. To install choose the correct insert for your country (See figure 1). 2. Find the tab that is located at the top of your insert,...

  • Page 13: Charging The Battery

    AC adaptor when the unit is not in use to maintain a continuous charge on the battery. This way, your Amigo HD will always be ready for portable use. It is not possible to overcharge the included battery.

  • Page 14: Battery Charge Indicators

    15 minutes before shutoff, a ‘chime’ will sound, with a battery icon displayed for 2 seconds. Battery Charge Indicator Once the Amigo HD powers on a Battery Charge Status indicator will appear for 2 seconds (during this time all button functions are disabled).

  • Page 15: Turning The Power On/Off

    (See Figure 1) 2. ‘Press and hold’ the GREEN [Power] button for 1 second or more to turn the Amigo HD on. After the Amigo HD ‘chime’ sound is heard and an image will appear on the LCD display. [Power] 3.

  • Page 16: Adjust The Viewing & Color Modes

    (See color modes below) Color Modes: The Amigo HD offers 28 possible color select modes available to users and allows selection of up to 6 favorite modes including Full Color Image (Aka “Normal Color”) for quick access by pressing the Mode button.

  • Page 17: Adjusting The Lcd Brightness

    Adjusting LCD Brightness: Your Amigo HD is set to the brightness level 3 on the LCD display when shipped from the factory. If desired, use the Joystick (toggle left to decrease right to increase) to adjust the brightness of the LCD display. Also located under ‘User Settings’...

  • Page 18: Using The Carrying Case

    (see Figure 1).This helps to protect your Amigo HD from accidental damage when “on- the-go”. When not using the Amigo HD, return it to the case for added protection. The carrying case is designed to be carried around your neck or shoulder.

  • Page 19: Auto Focus & Manual Focus

    Manual Focus is recommended when viewing materials at various distances. It is activated by moving the “MF/AF” switch toward the “MF” side and using the One-Touch Focus Button allowing the Amigo HD to adjust to the image (see Figure 5-B). Chapter 3 Using the Amigo HD...

  • Page 20: Chapter 4: Using The Menu

    USING THE MENU Menu Operation (Lights are off by default in this mode) The Menu options of the Amigo HD are as follows:  User Settings  Product Settings  Factory Settings  Image Gallery To enter the Amigo HD Menu press and hold the GREEN [Gallery] button and the [Save/ Manual Focus] buttons on the back right.

  • Page 21: User Settings

     Time & Date Clock, Time and Date Setting the Clock Time/Date The Amigo HD can maintain, and display, the current Time & Date once it is set. To set the current Time/Date: 1. Enter the Menu by pressing the GREEN [Gallery] button and the [Save/ Manual Focus] buttons (on the back right side) together.

  • Page 22: Product Settings

    **Note: While you are setting the time and date the item that is ready to be ‘set’ will be highlighted** 7. Using the [+/-] SIZE change the highlighted value 8. Use the [Joystick] button to set the current item and advance to the next item 9.

  • Page 23: Factory Settings

    3. Factory Settings The Factory Settings submenu is designed to provide access to product and system information as well as reset the device to factory settings when needed.  Product Information Product SN: Software RN: Boot RN: Board SN: Language Group-x ...

  • Page 24: Freezing An Image

    Saving a Snapshot You can also save a ‘snapshot’ image (approximately 300) on the Amigo HD to view at a later time. After freezing the image, press and hold the [Save/ Manual Focus] button (on the back right) for 2-3 seconds.

  • Page 25: Recalling An Image

    Recalling a Saved Snapshot Once you have a saved snapshot image you can ‘recall’ it and view it from the Image Gallery (See Figure 1). To recall a saved snapshot image: 1. Press and hold the GREEN [Gallery] for 3 seconds – the last saved snapshot will be displayed (in this mode LED lights are off).

  • Page 26: Connecting To You Pc

    (see Pages 9-10) follow the steps below to use a TV as an alternate display: 1. Connect the HDMI cable to the HDMI port on the Amigo HD 2. Attach the opposite end of the HDMI cable to the TV’s HDMI port.

  • Page 27: Chapter 5 Troubleshooting

    Check your Manual Focus/ Auto Focus.(Page 19) Video image on LCD display is too bright/dark  The Amigo HD is designed to be used in moderate lighting conditions, preferably indoors. Bright lighting (or direct sunlight) may produce shadows and/or reduce visibility.
  • Page 28 If the battery is nearly empty, and ready to shutoff, the battery icon will be displayed with a partial ‘Red’ bar. At this point if the Amigo HD is not plugged in within 1-2 minutes it will turn off. (Page 13)

  • Page 29: Chapter 6 Specifications

    SPECIFICATIONS Features:  Lightweight, portable design  30˚ adjustable Stand  31 selectable viewing modes  Continuous levels of magnification for Amigo HD  Image “Freeze” mode  Integrated battery charger  Power save mode after minutes Display:  Type: 7” diagonal TFT display, 16-bit ...
  • Page 30 Battery: 1x 7.6V Li-Ion rechargeable battery, 2950mAh (included in Amigo HD) Estimated Charge times: ~4 hours (with battery fully depleted) Estimated Usage Times: (Fully charged battery)** ~ 3 to 5 hour battery life (depending on Mode and Brightness level settings) Wall adapter: ...

  • Page 31: Chapter 7 Warranty Information

    All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal use; e) Damage due to operation of the Amigo HD with equipment not supplied or designed by Enhanced Vision.  You must provide proof of purchase, bearing the date of purchase, in order to receive warranty service.

  • Page 32: Warranty Information

    Enhanced Vision for detailed information. Service Process In the event that technical support or repair service is needed, please contact your local Enhanced Vision representative or the Enhanced Vision warranty service center. If warranty service is required, please contact Enhanced Vision at (800) 440-9476 Monday through Friday, between 8 a.m.

  • Page 33: Chapter 8 Other Enhanced Vision Products

    OTHER ENHANCED VISION PRODUCTS Pebble HD Pebble-mini Transformer Chapter 8 Other Enhanced Vision Products...
  • Page 34 Merlin elite Acrobat HD Ultra DaVinci Chapter 8 Other Enhanced Vision Products...
  • Page 35 Fax: +44 (0)115 9440720 (German Office) Phone: +49 (0) 6078 969827-0 Fax: +49 (0) 6078 969827-33 www.enhancedvision.com Technical Support: Main Toll Free (800) 440-9476 ext. 3 Local Phone: (714) 465-3400 ext. 3 E-mail: evsupport@enhancedvision.com Chapter 8 Other Enhanced Vision Products...
  • Page 36 The Amigo HD video magnifier is designed to enlarge and enhance images to improve the lives of people who have low vision. The extent to which Amigo HD can improve the ability to see images and text depends on a person’s individual condition and level of visual...
