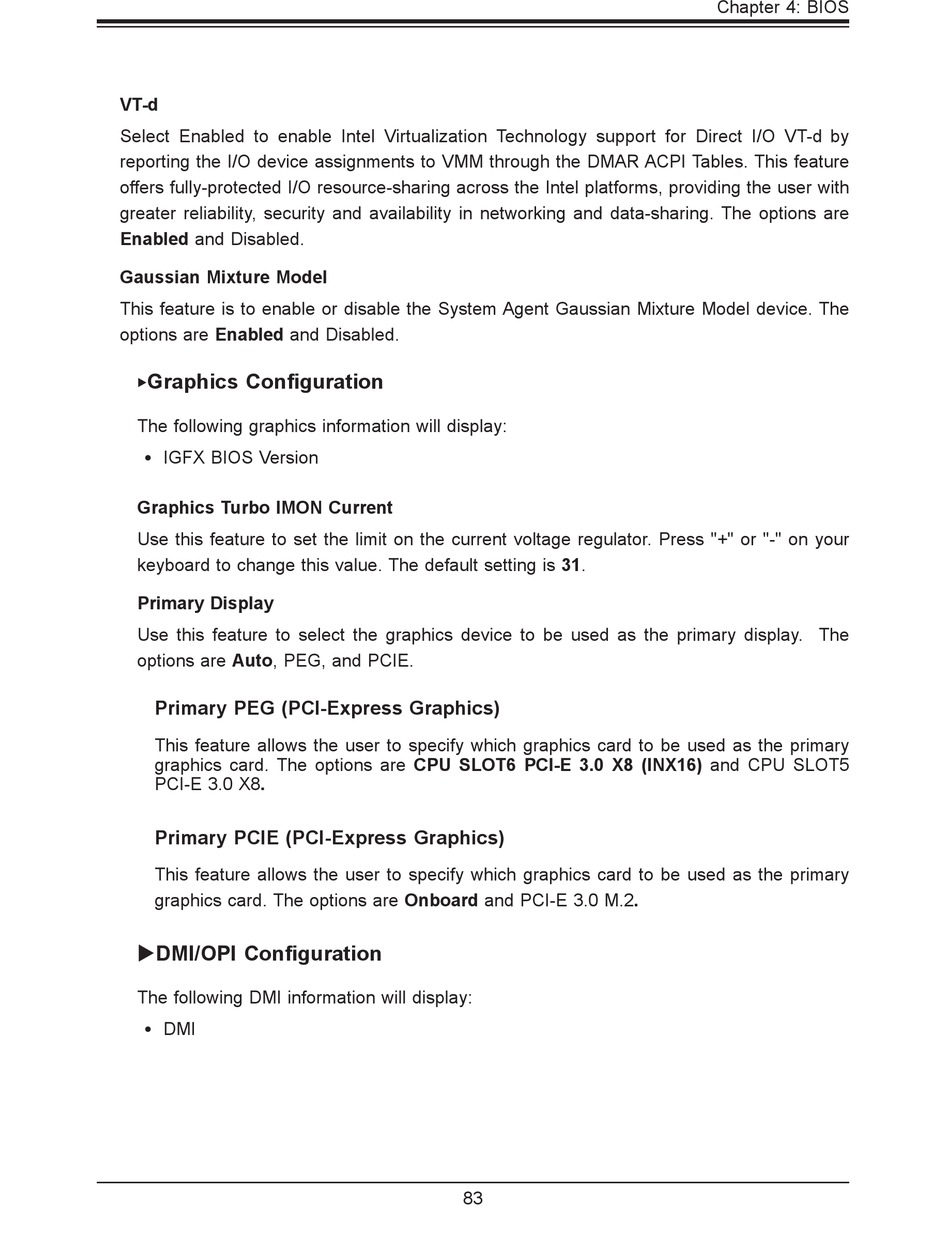

Graphics Configuration - Supermicro X11SSH-F User Manual

VT-d
Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by
reporting the I/O device assignments to VMM through the DMAR ACPI Tables. This feature
offers fully-protected I/O resource-sharing across the Intel platforms, providing the user with
greater reliability, security and availability in networking and data-sharing. The options are
Enabled and Disabled.
Gaussian Mixture Model
This feature is to enable or disable the System Agent Gaussian Mixture Model device. The
options are Enabled and Disabled.

Graphics Configuration


The following graphics information will display:
•
IGFX BIOS Version
Graphics Turbo IMON Current
Use this feature to set the limit on the current voltage regulator. Press "+" or "-" on your
keyboard to change this value. The default setting is 31.
Primary Display
Use this feature to select the graphics device to be used as the primary display. The
options are Auto, PEG, and PCIE.
Primary PEG (PCI-Express Graphics)
This feature allows the user to specify which graphics card to be used as the primary
graphics card. The options are CPU SLOT6 PCI-E 3.0 X8 (INX16) and CPU SLOT5
PCI-E 3.0 X8.
Primary PCIE (PCI-Express Graphics)
This feature allows the user to specify which graphics card to be used as the primary
graphics card. The options are Onboard and PCI-E 3.0 M.2.
DMI/OPI Configuration
The following DMI information will display:
•
DMI
83
Chapter 4: BIOS
