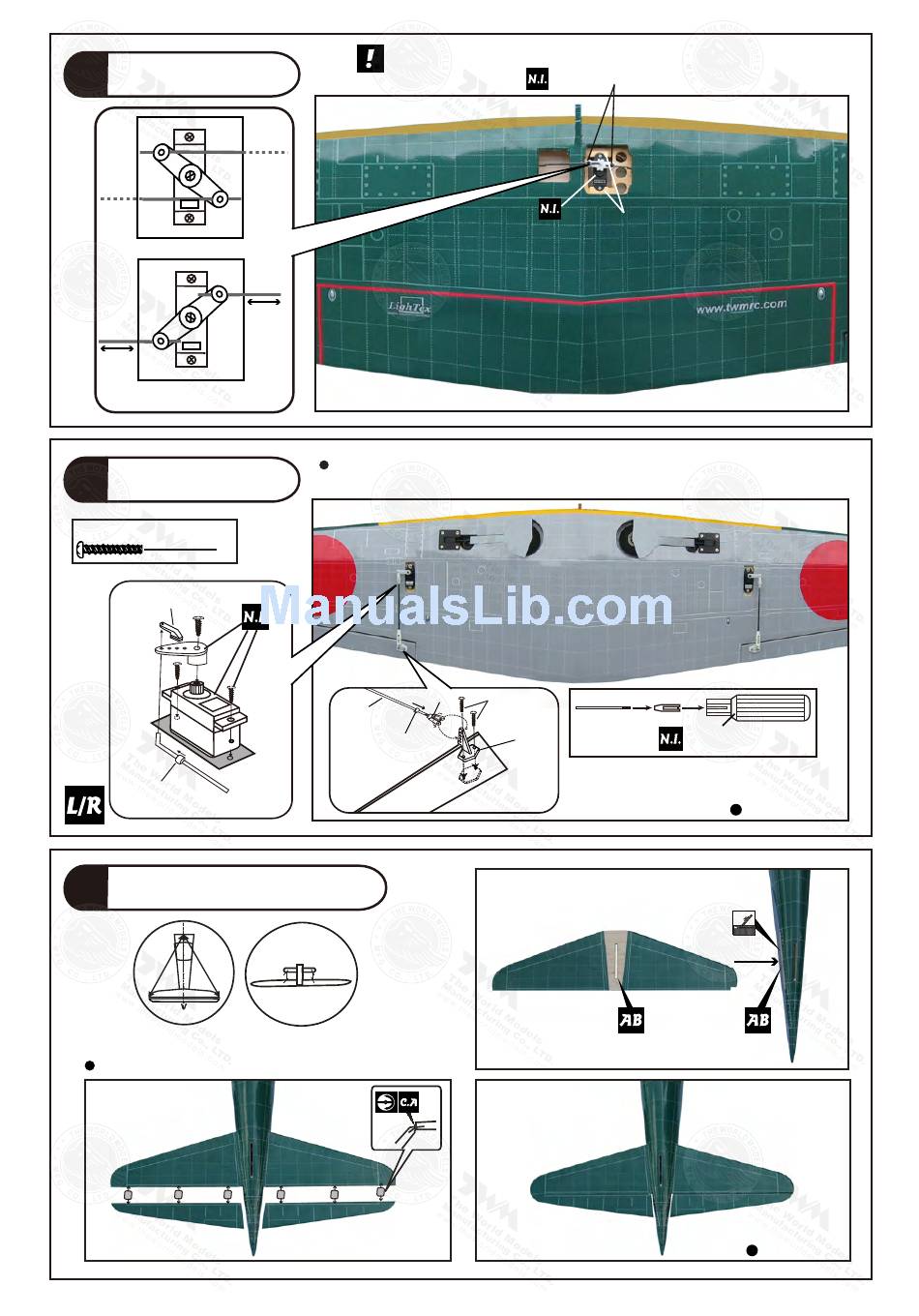

Retract Servo; Aileron Servo; Stabilizer & Elevator - THE WORLD MODELS ZERO FIGHTER EP Instruction Manual

3

Retract Servo

To L-Side
Wheels Down Position
16mm
Travel
Wheels Up Position
4

Aileron Servo

PB2x12mm Screw
Straper
Fuel Tube
d2xD4x4mm
5
Stabilizer & Elevator
A
A=A'
Temporary install the main wing, adjust leveling of the stabilizer
to make it as parallel to the main wing as possible
Apply instant type CA glue to both sides of each hinge.
E216XMPO23721004
To R-Side
16mm
Travel
Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole
marks at under side of control surfaces.
4
Pushrod
Ø1.4x82mm
d2xD4x4mm
(Stabi l i zer)
A'
B B'
(Mai n Wi ng)
B=B'
Please refer to attached sheet for linkage connector installation.
Linkage connector
Clevis
PB2x12mm
Fuel Tube
Horn
P.4
Plywood
2x7x21mm
TWM PL8210010
CLEVIS WRENCH
Bottom View
Completed
