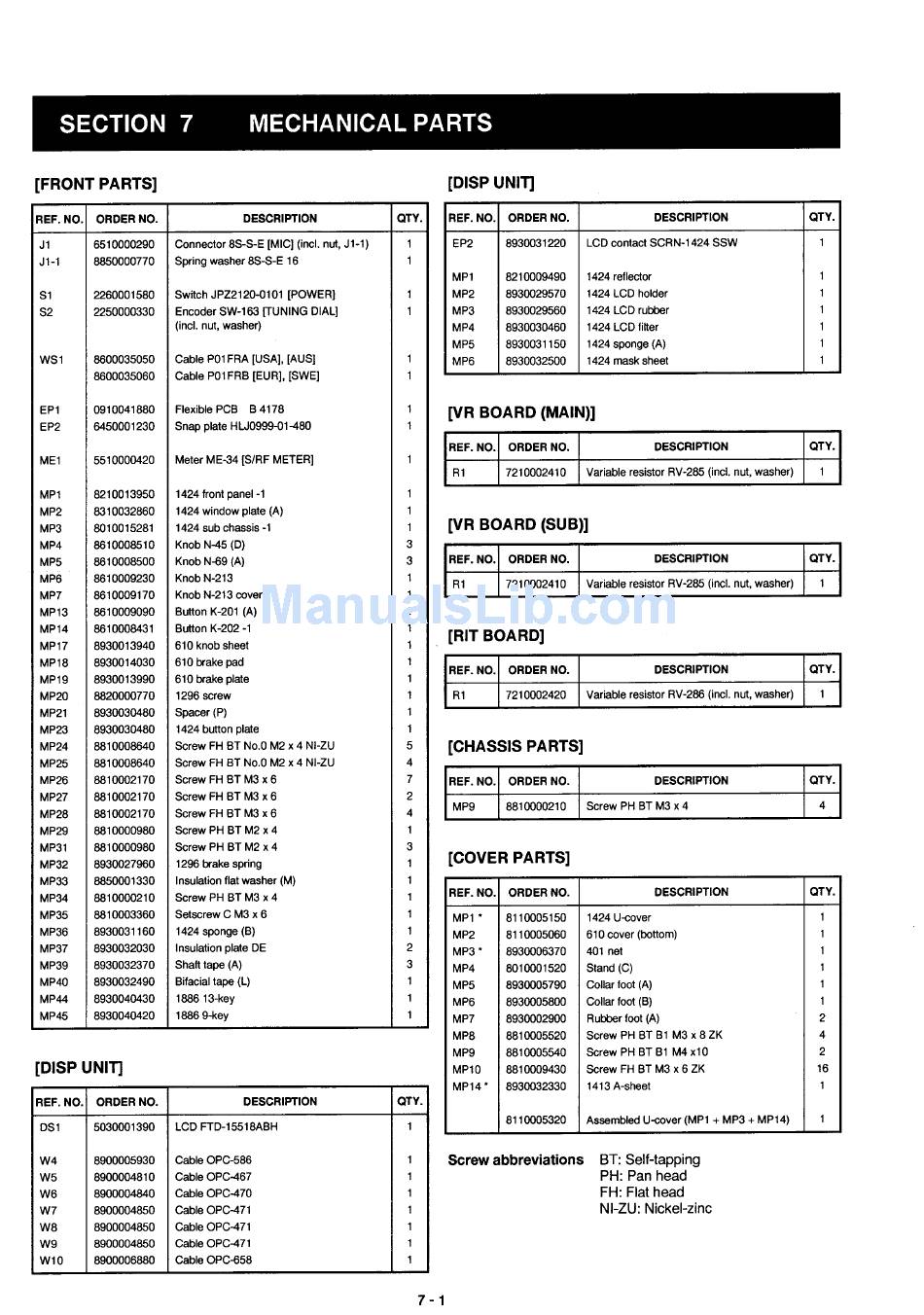

SECTION 7 MECHANICAL PARTS
[FRONT PARTS]
REF. NO.
ORDER NO. DESCRIPTION
Jl
6510000290 Connector 8S-S-E [MIG] (incl. nut, Jl-l)
Jl-l 8850000770
Spring washer 8S-S-E 16
Sl
2260001580 Switch JPZ2120-0101 [POWER)
S2 2250000330
Encoder SW-l63 [TUNING DIAL)
(incl. nut, washer)
WSl
8600035050 Cable POl FRA [USA), [AUS)
8600035060
Cable P01FRB [EUR), [SWE)
EPl 0910041880 Flexible PCB B 4178
EP2
6450001230 Snap plate HLJ0999-D1480
MEl 5510000420 Meter ME-34 [S/RF METER)
MPl 8210013950 1424 front panel -1
MP2 6310032860
1424 window plate (A)
MP3 8010015281
1424 sub chassis -1
MP4 8610008510 Knob N45 (D)
MP5
8610008500 Knob N-69 (A)
MP6
8610009230 Knob N-213
MP7 8610009170
Knob N-213 cover
MP13 8610009090
Button K-201 (A)
MP14 8610008431 Button K-202 -1
MP17 8930013940
610 knob sheet
MP18 8930014030
610 brake pad
MP19 8930013990
610 brake plate
MP20 8820000770 1296 screw
MP21
8930030480
Spacer (P)
MP23
8930030480 1424 button plate
MP24 8810008640
Screw FH BT No.O M2 x 4 NI-ZU
MP25 8810008640
Screw FH BT No.O M2 x 4 NI-ZU
MP26 8810002170 Screw FH BT M3 x 6
MP27 8810002170
Screw FH BT M3 x 6
MP28
8810002170
Screw FH BT M3 x 6
MP29
8810000980 Screw PH BT M2 x 4
MP31 8810000980
Screw PH BT M2 x 4
MP32 8930027960
1296 brake spring
MP33 8850001330
Insulation flat washer (M)
MP34
8810000210 Screw PH BT M3 x 4
MP35 8810003360
Setscrew C M3 x 6
MP36 8930031160
1424 sponge (B)
MP37 8930032030 Insulation plate DE
MP39
8930032370 Shaft tape (Al
MP40
8930032490 Bifacial tape (L)
MP44 8930040430 188613-key
MP45
8930040420 1886 9-key
[DISP UNIT]
REF. NO. ORDER NO.
DESCRIPTION
DSl 5030001390
LCD FTD-15518ABH
W4 8900005930 Cable OPC-586
W5
8900004810 Cable OPC467
W6
8900004840 Cable OPC470
W7
8900004850 Cable OPC471
W8 8900004850
Cable OPC471
W9
8900004850 Cable OPC471
Wl0 8900008880
Cable OPC-658
QTV.
1
1
1
1
1
1
1
1
1
1
1
1
3
3
1
1
1
1
1
1
1
1
1
1
5
4
7
2
4
1
3
1
1
1
1
1
2
3
1
1
1
QTV.
1
1
1
1
1
1
1
1
7 - 1
[DISP UNIT]
REF. NO.
ORDER NO.
DESCRIPTION
EP2 8930031220 LCD contact SCAN-1424 SSW
MPl 8210009490
1424 reflector
MP2 8930029570
1424 LCD holder
MP3 8930029560 1424 LCD rubber
MP4 8930030460
1424 LCD fitter
MP5 8930031150
1424 sponge (A)
MP6 8930032500 1424 mask sheet
[VR BOARD (MAIN)]
REF. NO. ORDER NO.
DESCRIPTION
Rl
7210002410 Variable resistor RV-285 (incl. nut, washer)
[VR BOARD (SUB))
REF. NO.
ORDER NO. DESCRIPTION
Rl 7210002410
Variable resistor RV-285 (incl. nut, washer)
[RIT BOARD]
REF. NO. ORDER NO.
DESCRIPTION
Al 7210002420
Variable resistor RV-286 (incl. nut, washer)
[CHASSIS PARTS]
REF. NO. ORDER NO.
DESCRIPTION
MP9
8810000210 Screw PH BT M3 x 4
[COVER PARTS]
REF. NO. ORDER NO.
DESCRIPTION
MP1·
8110005150
1424 U-cover
MP2 8110005060 610 cover (bottom)
MP3· 8930006370 401 net
MP4
8010001520 Stand (C)
MP5 8930005790
Collar foot (A)
MP6 8930005800 Collar foot (B)
MP7
8930002900 Aubber foot (A)
MP8 8810005520
Screw PH BT Bl M3 x 8 ZK
MP9 8810005540 Screw PH BT Bl M4 xl0
MP10 8810009430
Screw FH BT M3 x 6 ZK
MP14·
8930032330
1413 A-sheet
8110005320 Assembled U-cover (MPl
+
MP3
+
MP14l
Screw abbreviations 8T: Self-tapping
PH: Pan head
FH: Flat head
NI-ZU: Nickel-zinc
QTV.
1
1
1
1
1
1
1
QTV.
1
QTV.
1
QTV.
1
QTV.
4
QTV.
1
1
1
1
1
1
2
4
2
16
1
1
