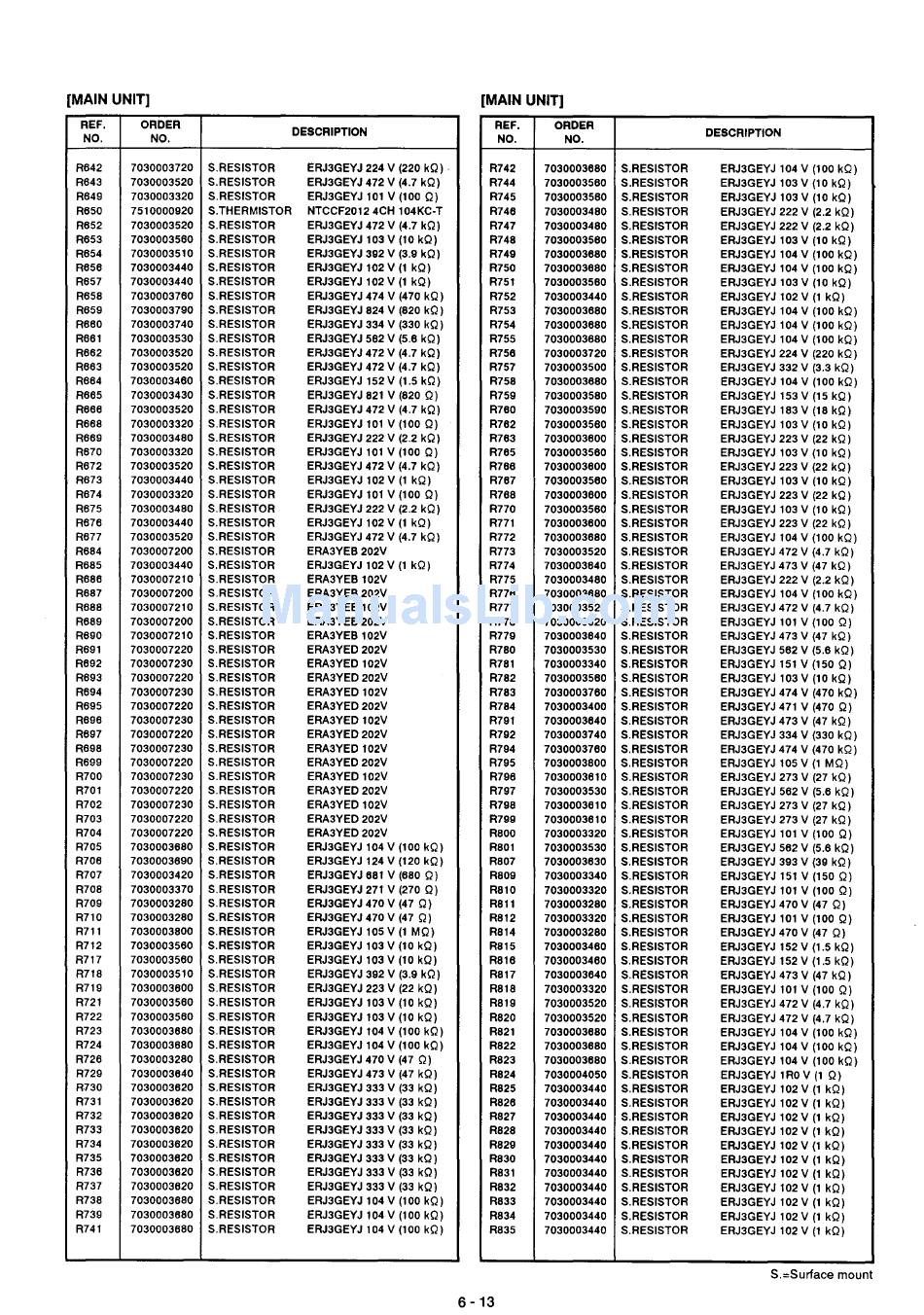

Icom IC-821H Service Manual page 42

[MAIN UNIT] [MAIN UNIT]
REF. ORDER
DESCRIPTION
NO. NO.
REF.
ORDER
DESCRIPTION
NO. NO.
R642 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kQ) . R742 7030003680
S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R643 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ) R744 7030003560
S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R649 7030003320 S.RESISTOR
ERJ3GEYJ 101 V (100 Q) R745 7030003560 S.RESISTOR
ERJ3GEYJ 103 V (10 kQ)
R650 7510000920 S.THERMISTOR NTCCF2012 4CH 104KC-T
R746 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R652 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ) R747 7030003480
S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R653 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ) R748 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R654 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kQ) R749 7030003680
S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R656 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R750 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R657
7030003440
S.RESISTOR ERJ3GEYJ 102 V (1 kQ) R751 7030003560
S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R658
7030003760
S.RESISTOR ERJ3GEYJ 474 V (470 kQ) R752 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R659 7030003790 S.RESISTOR ERJ3GEYJ 824 V (820 kQ)
R753 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R660 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kQ) R754 7030003680 S.RESISTOR
ERJ3GEYJ 104 V (100 kQ)
R661 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kQ)
R755 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R662 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ) R756 7030003720
S.RESISTOR ERJ3GEYJ 224 V (220 kQ)
R663 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
R757 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kQ)
R664 7030003460 S.RESISTOR ERJ3GEYJ 152V (1.5 kQ) R758 7030003680
S.RESISTOR ERJ3GEY J 104 V (100 kQ)
R665
7030003430
S.RESISTOR ERJ3GEYJ 821 V (820 Q) R759 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kQ)
R666 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ) R760 7030003590
S.RESISTOR ERJ3GEYJ 183 V (18 kQ)
R668 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Q) R762 7030003560
S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R669 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R763 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
R670
7030003320
S.RESISTOR ERJ3GEYJ 101 V (100 Q) R765 7030003560
S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R672 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
R766 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
R673 7030003440
S.RESISTOR ERJ3GEYJ 102 V (1 kQ) R767 7030003560 S.RESISTOR
ERJ3GEYJ 103 V (10 kQ)
R674 7030003320 S.RESISTOR
ERJ3GEYJ 101 V (100 Q) R768 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
R675 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ) R770 7030003560
S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R676 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R771 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
R677 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ) R772 7030003680
S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R684 7030007200 S.RESISTOR ERA3YEB 202V R773 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
R685 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R774 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R686 7030007210
S.RESISTOR ERA3YEB 102V R775 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R687 7030007200 S.RESISTOR ERA3YEB 202V R776 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R688 7030007210 S.RESISTOR ERA3YEB 102V
R777 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
R689 7030007200 S.RESISTOR ERA3YEB 202V R778 7030003320 S.RESISTOR
ERJ3GEYJ 101 V (100 Q)
R690 7030007210 S.RESISTOR ERA3YEB 102V
R779 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R691 7030007220 S.RESISTOR ERA3YED 202V R780 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kQ)
R692 7030007230 S.RESISTOR ERA3YED 102V R781 7030003340
S.RESISTOR ERJ3GEYJ 151 V (150 Q)
R693
7030007220
S.RESISTOR ERA3YED 202V R782 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R694 7030007230 S.RESISTOR
ERA3YED 102V R783 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kQ)
R695 7030007220 S.RESISTOR ERA3YED 202V R784 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Q)
R696 7030007230 S.RESISTOR
ERA3YED 102V R791 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R697 7030007220 S.RESISTOR ERA3YED 202V R792 7030003740 S.RESISTOR
ERJ3GEYJ 334 V (330 kQ)
R698 7030007230 S.RESISTOR ERA3YED 102V
R794 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kQ)
R699 7030007220 S.RESISTOR ERA3YED 202V R795 7030003800 S.RESISTOR
ERJ3GEYJ 105 V (1 MQ)
R700 7030007230 S.RESISTOR ERA3YED 102V
R796 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kQ)
R701 7030007220 S.RESISTOR ERA3YED 202V
R797 7030003530 S.RESISTOR
ERJ3GEYJ 562 V (5.6 kQ)
R702 7030007230 S.RESISTOR ERA3YED 102V
R798 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kQ)
R703 7030007220 S.RESISTOR ERA3YED 202V R799 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kQ)
R704 7030007220 S.RESISTOR ERA3YED 202V
R800 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Q)
R705 7030003680 S.RESISTOR
ERJ3GEYJ 104 V (100 kQ) R801 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kQ)
R706 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kQ) R807 7030003630
S.RESISTOR ERJ3GEYJ 393 V (39 kQ)
R707 7030003420 S.RESISTOR
ERJ3GEYJ 681 V (680 Q) R809 7030003340 S.RESISTOR
ERJ3GEYJ 151 V (150 Q)
R708 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Q)
R810 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Q)
R709 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Q)
R811 7030003280 S.RESISTOR
ERJ3GEYJ 470 V (47 Q)
R710
7030003280
S.RESISTOR ERJ3GEYJ 470 V (47 Q) R812
7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Q)
R711 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MQ)
R814 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Q)
R712 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R815 7030003460 S.RESISTOR ERJ3GEY J 152 V (1.5 kQ)
R717 7030003560 S.RESISTOR
ERJ3GEYJ 103 V (10 kQ) R818 7030003480 S.RESISTOR
ERJ3GEYJ 152 V (1.5 kQ)
R718 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kQ) R8H
7030003840 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R719 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kQ) R818 7030003320
S.RESISTOR ERJ3GEYJ 101 V (100 Q)
R721 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R819 7030003520
S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
R722 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R820 7030003520 S.RESISTOR
ERJ3GEYJ 472 V (4.7 kQ)
R723 7030003680
S.RESISTOR ERJ3GEYJ 104 V (100 kQ) R821 7030003680
S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R724 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R822 7030003680 S.RESISTOR
ERJ3GEYJ 104 V (100 kQ)
R726 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Q) R823 7030003880
S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R729 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R824 7030004050
S.RESISTOR ERJ3GEYJ lRO V (1 Q)
R130 7030003620
S.RESISTOR ERJ3GEYJ 333 V (33 kQ)
R825 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R731 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kQ)
R828 7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kQ)
R732 7030003620 S.RESISTOR
ERJ3GEYJ 333 V (33 kQ) R827
7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R733 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kQ)
R828 7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kQ)
R734
7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kQ) R829
7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R735 7030003620 S.RESISTOR ERJ3GEY J 333 V (33 kQ)
R830 7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kQ)
R736 7030003620
S.RESISTOR ERJ3GEYJ 333 V (33 kQ) R831 7030003440
S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R737 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kQ)
R832 7030003440
S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R738 7030003680 S.RESISTOR
ERJ3GEYJ 104 V (100 kQ)
R833 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R739 7030003680 S.RESISTOR
ERJ3GEYJ 104 V (100 kQ) R834 7030003440
S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R741 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R835 7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kQ)
S.=Surface mount
6 -13
