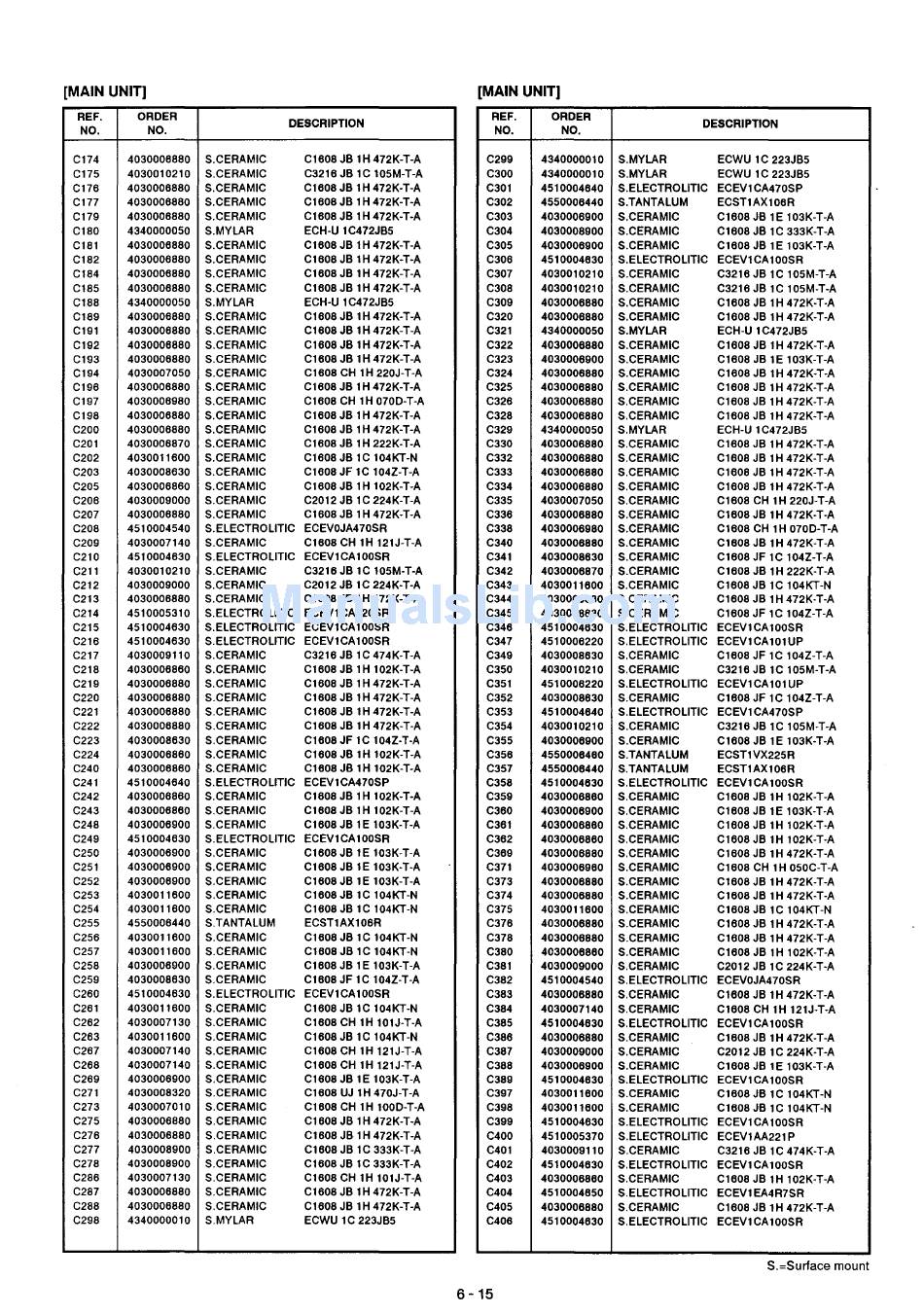

Icom IC-821H Service Manual page 44

[MAIN UNIT] [MAIN UNIT]
REF.
ORDER
DESCRIPTION
NO.
NO.
REF. ORDER
DESCRIPTION
NO.
NO.
C174 4030006680 S.CERAMIC C1608 JB lH 472K-T-A C299 4340000010 S.MYLAR ECWU 1 C 223JB5
C175 4030010210 S.CERAMIC C3216 JB lC 105M-T-A C300 4340000010 S.MYLAR ECWU 1 C 223JB5
C176
4030006880
S.CERAMIC
C1608 JB lH 472K-T-A
C301 4510004640 S.ElECTROLITIC ECEVl CA470SP
Cl77 4030006880 S.CERAMIC C1608JB lH472K-T-A C302 4550006440
S.TANTAlUM
ECST1AX106R
C179 4030006880 S.CERAMIC C1608 JB 1 H 472K-T-A C303 4030006900 S.CERAMIC C1608 JB lE 103K-T-A
C180 4340000050 S.MYlAR ECH-U lC472JB5 C304 4030008900 S.CERAMIC C1608 JB lC 333K-T-A
C181
4030006880 S.CERAMIC C1608 JB 1 H 472K-T-A
C305 4030006900 S.CERAMIC C1608 JB 1 E 103K-T-A
C182 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C306 4510004630 S.ElECTROLITIC ECEV1CA100SR
C184 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C307 4030010210 S.CERAMIC C3216 JB lC 105M-T-A
C185
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C308 4030010210 S.CERAMIC C3216 JB lC 105M-T-A
C188 4340000050 S.MYlAR ECH-U lC472JB5 C309 4030006880
S.CERAMIC C1608 JB 1 H 472K-T-A
C189 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C320 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C191
4030006880 S.CERAMIC C1608 JB lH 472K-T-A C321 4340000050
S.MYLAR ECH-U lC472JB5
C192 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C322 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C193 4030006880 S.CERAMIC
C1608 JB 1 H 472K-T-A
C323 4030006900 S.CERAMIC C1608 JB lE 103K-T-A
C194 4030007050 S.CERAMIC C1608 CH lH 220J-T-A C324 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C196 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C325 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C197
4030006980
S.CERAMIC
C1608 CH 1 H 070D-T-A
C326 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C198
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C328 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C200 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C329 4340000050
S.MYLAR
ECH-U 1 C472JB5
C201
4030006870 S.CERAMIC C1608 JB lH 222K-T-A
C330 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C202 4030011600 S.CERAMIC C1608 JB lC 104KT-N C332 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C203 4030008630 S.CERAMIC C1608 JF lC 104Z-T-A C333 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C205 4030006860 S.CERAMIC C1608 JB lH 102K-T-A C334 4030006880
S.CERAMIC C1608 JB lH 472K-T-A
C206 4030009000 S.CERAMIC C2012 JB lC 224K-T-A C335 4030007050 S.CERAMIC C1608 CH lH 220J-T-A
C207 4030006880 S.CERAMIC C1608 JB 1 H 472K-T-A C336 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C208
4510004540 S.ElECTROLITIC ECEVOJA470SR
C338 4030006980 S.CERAMIC C1608 CH lH 070D-T-A
C209
4030007140
S.CERAMIC
C1608 CH lH 121J-T-A
C340 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C210 4510004630 S.ElECTROLITIC ECEV1CA100SR C341 4030008630 S.CERAMIC C1608 JF lC 104Z-T-A
C211 4030010210 S.CERAMIC C3216 JB lC 105M-T-A C342 4030006870 S.CERAMIC C1608 JB lH 222K-T-A
C212 4030009000 S.CERAMIC C2012 JB lC 224K-T-A C343 4030011600 S.CERAMIC C1608 JB lC 104KT-N
C213 4030006880 S.CERAMIC C1608 JB 1 H 472K-T-A C344 4030006880 S.CERAMIC C1608 JB 1 H 472K-T-A
C214
4510005310
S.ElECTROLITIC ECEV1CA220SR C345 4030008830 S.CERAMIC C1608 JF lC 104Z-T-A
C215 4510004630 S.ElECTROLITIC ECEVl CA 1 OOSR C346 4510004830 S.ELECTROLITIC ECEV1CA100SR
C216
4510004630 S.ElECTROLITIC ECEV1CA100SR
C347 4510006220 S.ElECTROLITIC ECEV1CA10lUP
C217 4030009110 S.CERAMIC C3216 JB lC 474K-T-A C349 4030008630 S.CERAMIC C1608 JF lC 104Z-T-A
C218
4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C350 4030010210 S.CERAMIC C3216 JB lC 105M-T-A
C219 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C351 4510006220 S.ElECTROLITIC ECEV1CA10lUP
C220 4030008880 S.CERAMIC C1608 JB lH 472K-T-A C352 4030008630 S.CERAMIC C1608 JF lC 104Z-T-A
C221 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C353 4510004640 S.ElECTROLITIC ECEV1CA470SP
C222
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C354 4030010210 S.CERAMIC C3216 JB lC 105M-T-A
C223
4030008630
S.CERAMIC
C1608 JF lC 104Z-T-A
C355 4030006900 S.CERAMIC C1608 JB 1 E 103K-T-A
C224 4030006860 S.CERAMIC C1608 JB lH 102K-T-A C356 4550006460 S.TANTALUM ECST1VX225R
C240
4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C357 4550006440 S.TANTALUM ECST1AX106R
C241 4510004640 S.ElECTROLITIC ECEV1CA470SP C358 4510004630 S.ElECTROLITIC ECEV1CA100SR
C242 4030006860 S.CERAMIC C1808 JB 1 H 102K-T-A C359 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C243 4030006860 S.CERAMIC C1608 JB 1 H 102K-T-A C360 4030006900 S.CERAMIC C1608 JB lE 103K-T-A
C248 4030006900 S.CERAMIC C1608JB lE 103K-T-A C361 4030008860 S.CERAMIC
C1608 JB lH 102K-T-A
C249
4510004630 S.ELECTROLITIC ECEVl CA 100SR
C362 4030008860 S.CERAMIC C1608 JB lH 102K-T-A
C250 4030006900 S.CERAMIC C1608 JB lE 103K-T-A C369 4030006880
S.CERAMIC C1608 JB lH 472K-T-A
C251
4030006900
S.CERAMIC
C1608 JB lE 103K-T-A
C371 4030006960 S.CERAMIC C1608 CH lH 050C-T-A
C252 4030006900 S.CERAMIC C1608 JB lE 103K-T-A
C373 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C253 4030011600 S.CERAMIC C1608 JB lC 104KT-N
C374 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C254 4030011600 S.CERAMIC C1608 JB lC 104KT-N C375 4030011600 S.CERAMIC C1608 JB lC 104KT-N
C255 4550006440 S.TANTALUM ECST1AX106R
C376 4030006880 S.CERAMIC C1608 JB 1 H 472K-T-A
C256 4030011600 S.CERAMIC C1608 JB lC 104KT-N C378 4030006880
S.CERAMIC C1608 JB 1 H 472K-T-A
C257 4030011600 S.CERAMIC C1608 JB lC 104KT-N
C380 4030006860 S.CERAMIC C1608JB lH 102K-T-A
C258 4030006900 S.CERAMIC C1608JB lE 103K-T-A C381 4030009000
S.CERAMIC C2012 JB lC 224K-T-A
C259 4030008630 S.CERAMIC C1608 JF lC 104Z-T-A
C382 4510004540 S.ElECTROLITIC ECEVOJA470SR
C260 4510004630 S.ElECTROLITIC ECEV1CA100SR C383
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C261 4030011600 S.CERAMIC C1608 JB lC 104KT-N C384 4030007140
S.CERAMIC C1608 CH lH 121J-T-A
C262 4030007130 S.CERAMIC C1608 CH lH 10lJ-T-A
C385 4510004630
S.ElECTROLITIC ECEV1CA100SR
C263 4030011600 S.CERAMIC C1608 JB lC 104KT-N
C386 4030008880 S.CERAMIC C1608 JB lH 472K-T-A
C267 4030007140 S.CERAMIC
C1608 CH lH 121J-T-A C387 4030009000
S.CERAMIC C2012 JB lC 224K-T-A
C268 4030007140 S.CERAMIC C1608 CH lH 121J-T-A
C388 4030006900 S.CERAMIC C1608 JB lE 103K-T-A
C269
4030006900 S.CERAMIC
C1608 JB lE 103K-T-A C389 4510004630 S.ElECTROLITIC ECEV1CA100SR
C271
4030008320
S.CERAMIC C1608 UJ lH 470J-T-A C397 4030011600 S.CERAMIC
C1608 JB lC 104KT-N
C273 4030007010 S.CERAMIC C1608 CH lH 100D-T-A
C398 4030011600 S.CERAMIC C1608 JB lC 104KT-N
C275 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C399 4510004830
S.ElECTROLITIC ECEV1CA100SR
C276 4030006880 S.CERAMIC
C1608 JB lH 472K-T-A C400 4510005370
S.ELECTROLITIC ECEV1AA221P
C277 4030008900 S.CERAMIC C1608 JB lC 333K-T-A
C401 4030009110 S.CERAMIC C3216 JB lC 474K-T-A
C278
4030008900 S.CERAMIC
C1608 JB lC 333K-T-A C402 4510004630
S.ELECTROLITIC ECEV1CA100SR
C286 4030007130 S.CERAMIC C1608 CH lH 10lJ-T-A
C403 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C287 4030006880
S.CERAMIC C1608 JB lH 472K-T-A C404 4510004650
S.ElECTROLITIC ECEV1EA4R7SR
C288 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C405 4030006880
S.CERAMIC C1608 JB lH 472K-T-A
C298 4340000010 S.MYlAR ECWU 1 C 223JB5 C406
4510004630 S.ElECTROLITIC ECEV1CA100SR
S.=Surface mount
6 -15
