Icom IC-821H Service Manual page 19

Vhf/uhf all mode
Hide thumbs Also See for IC-821H:
Table of Contents

Advertisement

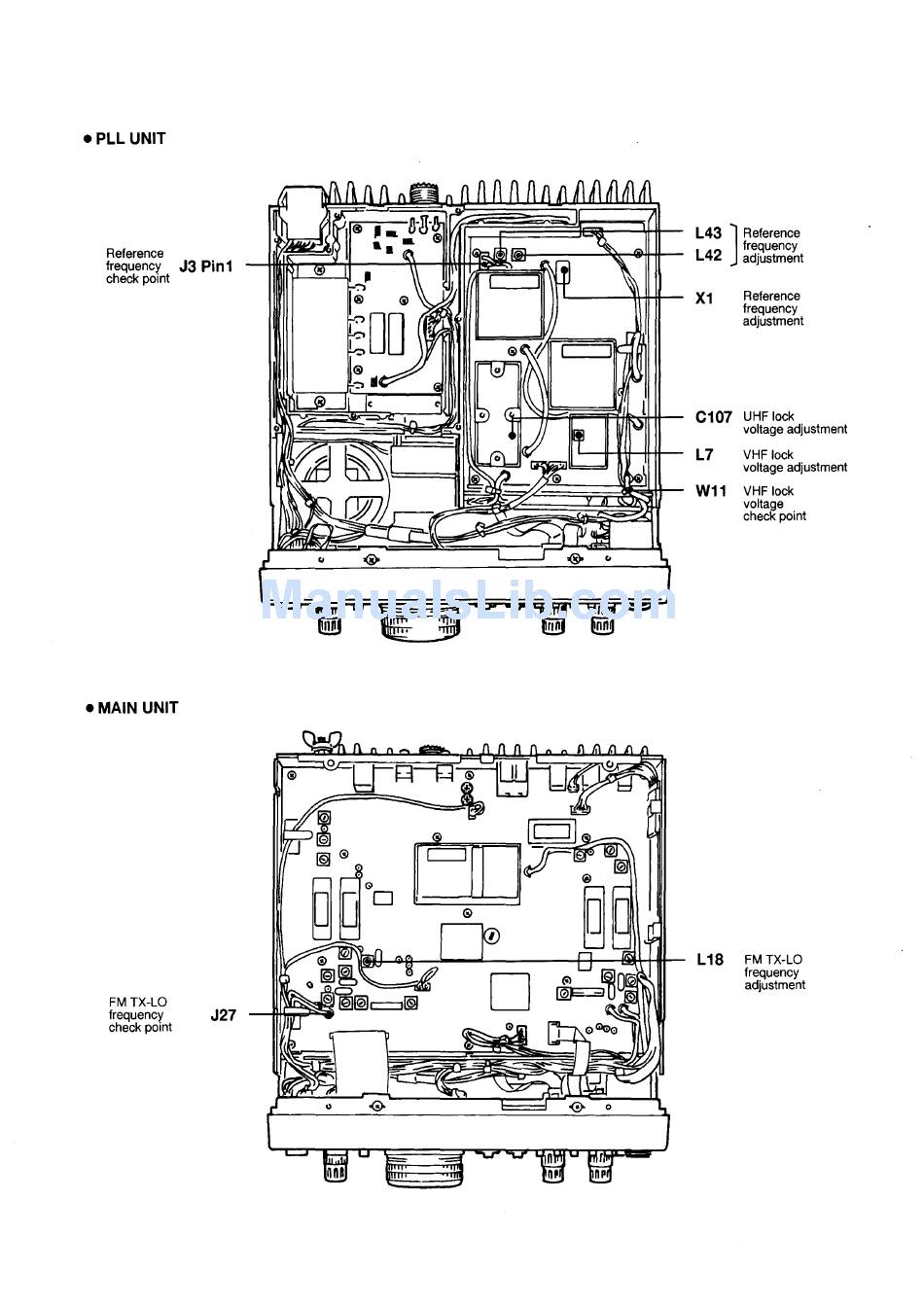

-PLL UNIT
Reference
frequency
J3 Pin1
check point
-MAIN UNIT
FM TX-LO
frequency
check point
J27
L43 ]
Reference
frequency
L42
adjustment
X1
Reference
frequency
adjustment
C107
UHF lock
voltage adjustment
L7
VHF lock
voltage adjustment
W11
VHF lock
voltage
check point
L 18
FM TX-LO
frequency
adjustment
