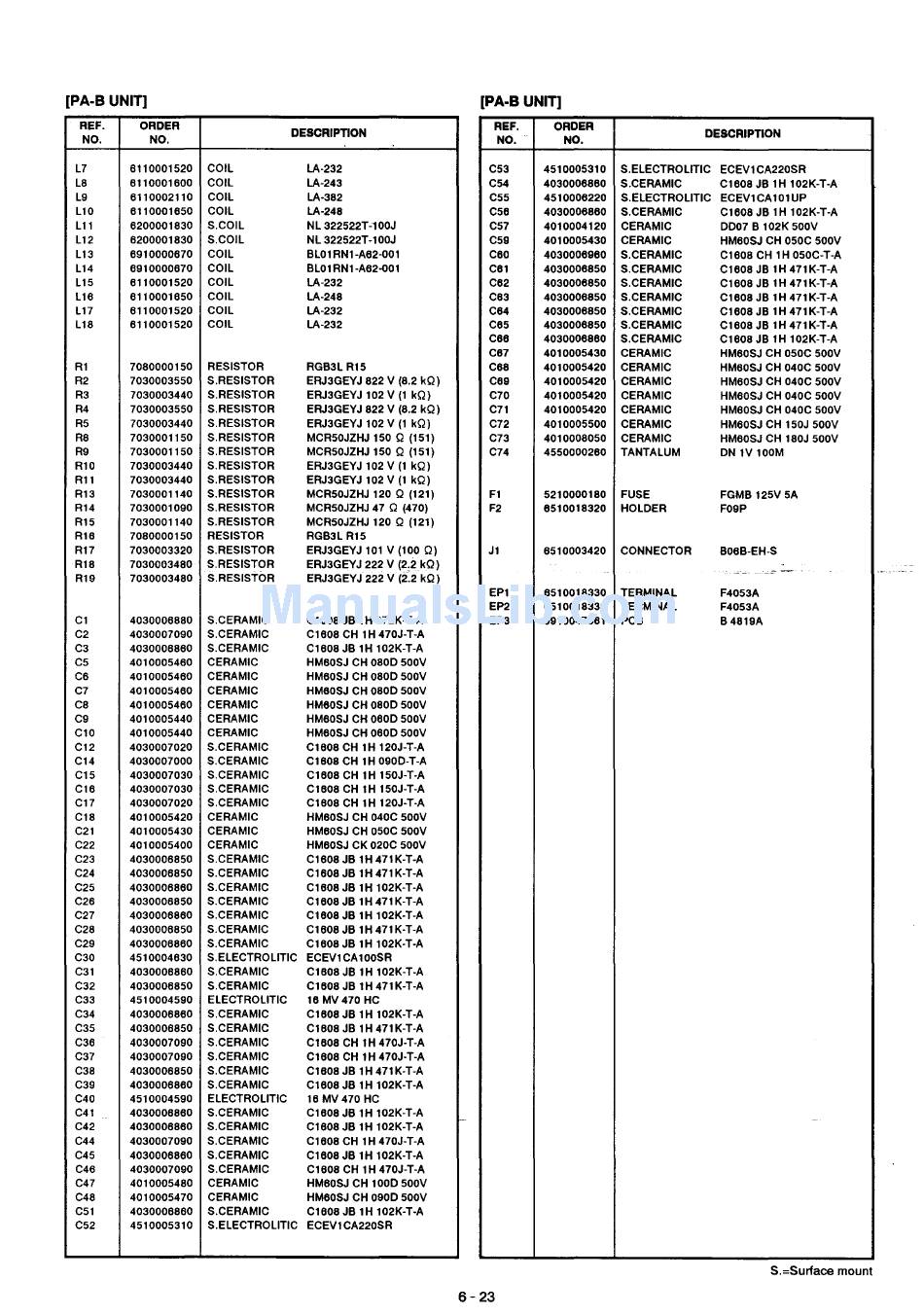

Icom IC-821H Service Manual page 52

[PA-B UNIT]
[PA-B UNIT]
REF. ORDER
DESCRIPTION
NO. NO.
REF.
ORDER
DESCRIPTION
NO. NO.
L7
6110001520 COIL
LA·232 C53 4510005310
S.ELECTROLITIC ECEV1CA220SR
L8
6110001600 COIL LA-243
C54 4030006860 S.CERAMIC C1608 JB 1 H 102K-T-A
L9 6110002110 COIL LA-382
C55 4510006220 S.ELECTROLITIC ECEV1CA10lUP
L10 6110001650 COIL LA-248 C56 4030006860 S.CERAMIC C1608 JB 1 H 1 02K-T-A
L11 6200001830 S.COIL NL 322522T c l00J
C57 4010004120 CERAMIC 0007 B 1 02K 500V
L12 6200001830 S.COIL NL 322522T-l00J
C59 4010005430 CERAMIC HM60SJ CH 050C 500V
L13
6910000670 COIL
BLOl RN1-A62-001 C60 4030006960 S.CERAMIC C1608 CH 1 H 050C-T-A
L14
6910000670 COIL BLOl RN1-A62-001
C61 4030006850 S.CERAMIC C1608 JB lH 471K-T-A
L15 6110001520 COIL LA-232 C62 4030006850 S.CERAMIC C1608 JB lH 471K-T-A
L16 6110001650 COIL LA-248
C63 4030006850 S.CERAMIC C1608 JB lH 471K-T-A
L17 6110001520 COIL LA-232 C64 4030006850 S.CERAMIC C1608 JB lH 471K-T-A
L18 6110001520 COIL LA-232 C65 4030006850 S.CERAMIC
C1608 JB lH 471K-T-A
C66 4030006860
S.CERAMIC C1608 JB lH 102K-T-A
C67 4010005430
CERAMIC HM60SJ CH 050C 500V
Rl 7080000150 RESISTOR RGB3L R15
C68 4010005420 CERAMIC HM60SJ CH 040C 500V
R2 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kQ) C69 4010005420
CERAMIC HM60SJ CH 040C 500V
R3
7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
C70 4010005420 CERAMIC HM60SJ CH 040C 500V
R4 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kQ) C71 4010005420 CERAMIC
HM60SJ CH 040C 500V
R5 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ) C72 4010005500 CERAMIC
HM60SJ CH 150J 500V
R8 7030001150 S.RESISTOR MCR50JZHJ 150 Q (151)
C73 4010008050 CERAMIC HM60SJ CH 180J 500V
R9
7030001150 S.RESISTOR
MCR50JZHJ 150 Q (151) C74 4550000260 TANTALUM
ON lV 100M
Rl0 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
Rll
7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kQ)
R13 7030001140 S.RESISTOR MCR50JZHJ 120 Q (121)
Fl 5210000180 FUSE FGMB 125V 5A
R14 7030001090 S.RESISTOR MCR50JZHJ 47 Q (470)
F2 6510018320 HOLDER F09P
R15 7030001140 S.RESISTOR MCR50JZHJ 120 Q (121)
R16 7080000150 RESISTOR
RGB3L R15
R17 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Q) Jl 6510003420
CONNECTOR B06B-EH-S
R18 7030003480 S.RESISTOR
ERJ3GEYJ 222 V (2,2kQ)
R19
7030003480 S.RESISTOR
ERJ3GEY J 222 V (2.2 kQ)
- -
EPl 6510018330
TERMINAL F4053A
EP2 6510018330 TERMINAL F4053A
Cl 4030006880 S.CERAMIC C1608 JB lH 472K-T-A EP3 0910047561
PCB B4819A
C2 4030007090 S.CERAMIC C1608 CH 1 H 470J-T-A
C3 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C5 4010005460 CERAMIC HM60SJ CH 0800 500V
C6 4010005460 CERAMIC HM60SJ CH 0800 500V
C7 4010005460 CERAMIC HM60SJ CH 0800 500V
C8 4010005460 CERAMIC HM60SJ CH 0800 500V
C9 4010005440 CERAMIC HM60SJ CH 0600 500V
Cl0
4010005440 CERAMIC
HM60SJ CH 0600 500V
C12 4030007020 S.CERAMIC C1608 CH lH 120J-T-A
C14
4030007000
S.CERAMIC C1608 CH lH 0900-T-A
C15 4030007030 S.CERAMIC C1608 CH lH 150J-T-A
C16 4030007030 S.CERAMIC C1608 CH lH 150J-T-A
C17 4030007020 S.CERAMIC C1608 CH lH 120J-T-A
C18
4010005420 CERAMIC HM60SJ CH 040C 500V
C21 4010005430
CERAMIC
HM60SJ CH 050C 500V
C22 4010005400 CERAMIC HM60SJ CK 020C 500V
C23 4030006850 S.CERAMIC
C1608JB lH471K-T-A
C24 4030006850 S.CERAMIC C1608 JB lH 471 K-T-A
C25
4030006860 S.CERAMIC
C1608 JB lH 102K-T-A
C26 4030006850 S.CERAMIC C1608 JB lH 471 K-T-A
C27 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C28
4030006850 S.CERAMIC
C1608 JB lH 471K-T-A
C29 4030006860 S.CERAMIC
C1608 JB lH 102K-T-A
C30 4510004630 S.ELECTROLITIC ECEV1CA100SR
C31 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C32 4030006850 S.CERAMIC C1608JB lH471K-T-A
C33 4510004590 ELECTROLITIC 16 MV 470 HC
C34
4030006860 S.CERAMIC
C1608 JB lH 102K-T-A
C35 4030006850 S.CERAMIC
C1608 JB 1 H 471 K-T-A
C36 4030007090 S.CERAMIC C1608 CH lH 470J-T-A
C37
4030007090 S.CERAMIC
C1608 CH lH 470J-T-A
C38 4030006850 S.CERAMIC C1608 JB lH 471K-T-A
C39 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C40 4510004590 ELECTROLITIC 16 MV 470 HC
C41 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
-
C42 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C44 4030007090 S.CERAMIC C1608 CH lH 470J-T-A
C45 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C46 4030007090 S.CERAMIC
C1608 CH lH 470J-T-A
C47 4010005480
CERAMIC
HM60SJ CH 1000 500V
C48 4010005470 CERAMIC HM60SJ CH 0900 500V
C51 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C52 4510005310 S.ELECTROLITIC ECEV1CA220SR
S.=Suriace mount
