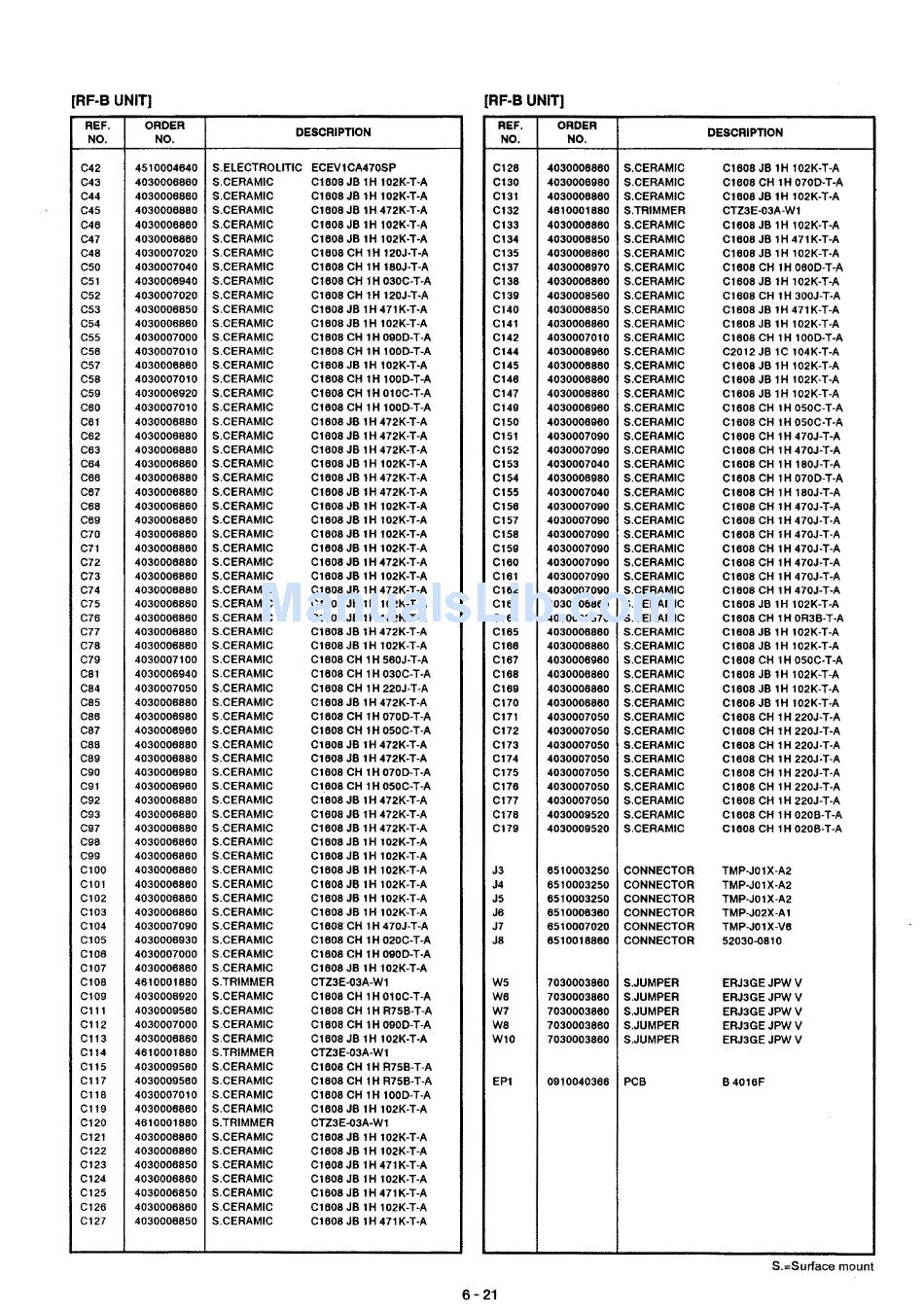

Icom IC-821H Service Manual page 50

[RF-B UNIT] (RF-B UNIT]
REF.
ORDER
DESCRIPTION
NO. NO.
REF.
ORDER
DESCRIPTION
NO. NO.
C42 4510004640 S.ElECTROLITIC ECEV1CA470SP C128 4030006860 S.CERAMIC C1608 JB lH 102K·T-A
C43 4030006860 S.CERAMIC C1608 JB 1 H 102K-T-A C130 4030006980 S.CERAMIC C1608 CH lH 0700-T-A
C44 4030008880 S.CERAMIC C1608 JB lH 102K-T-A C131 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C45
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C132
4610001880
S.TRIMMER CTZ3E-03A-Wl
C46 4030006860 S.CERAMIC C1608 JB lH 102K-T-A C133 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C47 4030006860
S.CERAMIC
C1608 JB lH 102K-T-A C134 4030006850 S.CERAMIC C1608 JB lH 471K-T-A
C48 4030007020 S.CERAMtC C1608 CH lH 120J-T-A C135 4030006860 S.CERAMIC C1608 JB 1 H 102K-T·A
C50 4030007040 S.CERAMtC C1608 CH lH 180J·T-A
C137
4030006970
S.CERAMIC C1608 CH lH 060D-T·A
C51 4030006940 S.CERAMIC C1608 CH 1 H 030C-T·A C136 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C52
4030007020 S.CERAMIC
C1608 CH lH 120J·T·A C139 4030008560 S.CERAMIC C1608 CH lH 300J-T-A
C53 4030006850 S.CERAMIC C1608 JB lH 471K·T·A C140 4030006850 S.CERAMIC C1608 JB lH 471K-T-A
C54
4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C141 4030008860 S.CERAMIC C1608 JB lH 102K-T-A
C55 4030007000
S.CERAMIC
C1608 CH lH 090D·T-A C142 4030007010 S.CERAMIC C1608 CH lH 100D-T·A
C56 4030007010 S.CERAMtC C1608 CH lH 100D-T-A
C144
4030008960 S.CERAMIC
C2012 JB lC 104K-T-A
C57 4030006860 S.CERAMIC C1608 JB lH 102K-T·A C145 4030006860 S.CERAMIC
C1608JB lH 102K·T-A
C58
4030007010 S.CERAMIC C1608 CH lH 100D-T-A
C146 4030006860 S.CERAMIC C1608 JB 1 H 102K-T·A
C59 4030006920 S.CERAMIC C1608 CH lH 010C·T-A
C147
4030006860
S.CERAMIC C1608 JB lH 102K-T-A
C60 4030007010 S.CERAMIC C1608 CH lH 100D-T-A C149 4030006960 S.CERAMIC C1608 CH lH 050C-T-A
C61
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C150 4030006960 S.CERAMIC C1608 CH lH 050C-T·A
C62 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C151 4030007090 S.CERAMIC C1608 CH lH 470J-T-A
C63
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C152 4030007090 S.CERAMIC C1608 CH lH 470J-T-A
C64 4030006860 S.CERAMIC C1608JB lH 102K·T·A C153 4030007040 S.CERAMIC C1608 CH lH 180J-T·A
C66 4030006880 S.CERAMIC C1608 JB lH 472K·T-A C154 4030006980 S.CERAMIC C1608 CH lH 070D-T-A
C67 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C155 4030007040 S.CERAMIC C1608 CH lH 180J-T-A
C68 4030006860 S.CERAMIC C1608 JB lH 102K-T-A C156 4030007090 S.CERAMIC C1608 CH lH 470J-T-A
C69 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C157
4030007090
S.CERAMIC C1608 CH lH 470J-T-A
C70 4030006660 S.CERAMIC C1608 JB lH 102K-T-A C158 4030007090 S.CERAMIC C1608 CH lH 470J-T-A
C71 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C159 4030007090 S.CERAMIC C1608 CH lH470J-T-A
C72 4030006880 S.CERAMIC C1608 JB lH 472K·T-A C160 4030007090 S.CERAMIC C1608 CH lH 470J-T-A
C73 4030006860 S.CERAMIC C1608 JB lH 102K-T-A C161 4030007090 S.CERAMIC C1608 CH lH 470J-T-A
C74 4030006880 S.CERAMtC C1608 JB 1 H 472K-T-A C162 4030007090 S.CERAMIC
C1608 CH lH 470J·T·A
C75 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C163
4030006860 S.CERAMtC
C1608 JB lH 102K-T-A
C76 4030006860 S.CERAMIC C1608JB lH 102K-T-A Cl64 4030009570 S.CERAMIC C1608 CH lH OR3B-T-A
C77 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C165 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C78 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C166
4030006860 S.CERAMIC
C1608 JB 1 H 102K-T·A
C79 40:30007100 S.CERAMIC C1608 CH lH 560J-T-A C167 4030006960 S.CERAMIC
C1608 CH lH 050C-T·A
C81 4030006940
S.CERAMIC C1608 CH 1 H 030C-T-A
C168 4030006660 S.CERAMIC C1608 JB lH 102K-T·A
C84 4030007050 S.CERAMIC C1608 CH lH 220J-T-A
C169 4030006860 S.CERAMIC C1608JB lH 102K-T·A
C85 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C170 4030006860 S.CERAMIC CI608 JB lH 102K-T-A
C86 4030006980 S.CERAMIC C1608 CH lH 070D-T-A C171 4030007050 S.CERAMIC
C1608 CH lH 220J-T-A
C87 4030006960 S.CERAMIC C1608 CH lH 050C-T-A
C172 4030007050 S.CERAMIC C1608 CH lH 220J-T-A
C88 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C173
4030007050 S.CERAMIC
CI608 CH lH 220J-T-A
C89 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C174 4030007050 S.CERAMIC C1608 CH lH 220J-T-A
C90 4030006980 S.CERAMIC C1608 CH lH 070D-T-A
C175 4030007050 S.CERAMIC C1608 CH lH 220J-T-A
C91 4030006960 S.CERAMIC C1608 CH lH 050C-T-A C176 4030007050 S.CERAMIC C1608 CH lH 220J-T-A
C92 4030006880 S.CERAMIC C1608 JB lH 472K-T-A CI77 4030007050 S.CERAMIC
C1608 CH lH 220J-T-A
C93
4030006880 S.CERAMtC
C1608 JB 1 H 472K-T-A C178 4030009520 S.CERAMIC C1608 CH lH 020B-T-A
C97 4030006880 S.CERAMIC C1608 JB lH 472K-T-A C179 4030009520 S.CERAMIC C1608 CH lH 020B-T-A
C98 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C99 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
Cl00 4030006860 S.CERAMIC C1608 JB lH 102K-T-A J3 6510003250 CONNECTOR
TMP-J01X-A2
Cl01 4030006860 S.CERAMIC
C1608 JB lH 102K-T-A J4 6510003250 CONNECTOR TMP-JOI X-A2
Cl02 4030006860 S.CERAMIC C1608 JB lH 102K-T-A J5 6510003250 CONNECTOR
TMP-JOIX-A2
Cl03 4030006860 S.CERAMIC C1608 JB lH 102K-T-A J6 6510006360
CONNECTOR TMP-J02X-A 1
Cl04 4030007090 S.CERAMtC C1608 CH lH 470J-T-A
J7 6510007020 CONNECTOR TMP-J01X-V6
Cl05 4030006930 S.CERAMIC C1608 CH lH 020C-T-A J8 6510018860 CONNECTOR 52030-0810
Cl06 4030007000 S.CERAMIC C1608 CH lH 0OOD-T-A
Cl07 4030006860 S.CERAMIC
C1608 JB lH 102K-T-A
Cl08 4610001880 S.TRIMMER CTZ3E-03A-Wl
W5 7030003860 S.JUMPER ERJ3GEJPWV
Cl09 4030006920 S.CERAMIC C1608 CH 1 H 010C-T-A W6 7030003860 S.JUMPER
ERJ3GEJPWV
Clll 4030009560 S.CERAMIC C1608 CH lH R75B-T-A
W7 7030003860 S.JUMPER
ERJ3GEJPWV
C112
4030007000 S.CERAMIC
C1608 CH lH 0900-T-A W8 7030003860
S.JUMPER ERJ3GEJPWV
C113 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
WIO 7030003860 S.JUMPER ERJ3GEJPWV
C114 4610001880 S.TRIMMER CTZ3E-03A-Wl
C115 4030009560 S.CERAMIC C1606 CH lH R75B-T-A
CI17 4030009560 S.CERAMIC
C1608 CH lH R75B-T-A EPI 0910040366 PCB
B 4016F
C118 4030007010 S.CERAMIC C1608 CH lH 100D-T-A
C119 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C120 4610001880 S.TRtMMER CTZ3E-03A·Wl
C121 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C122 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C123 4030006850 S.CERAMIC
C1608 JB lH 471K-T-A
C124 4030006860 S.CERAMIC C1608 JB 1 H 102K-T-A
C125 4030006850 S.CERAMIC
C1608JB lH471K-T-A
C126 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C127 4030006850 S.CERAMIC
C1608JB lH471K-T·A
S.=Surface mount
6 - 21
