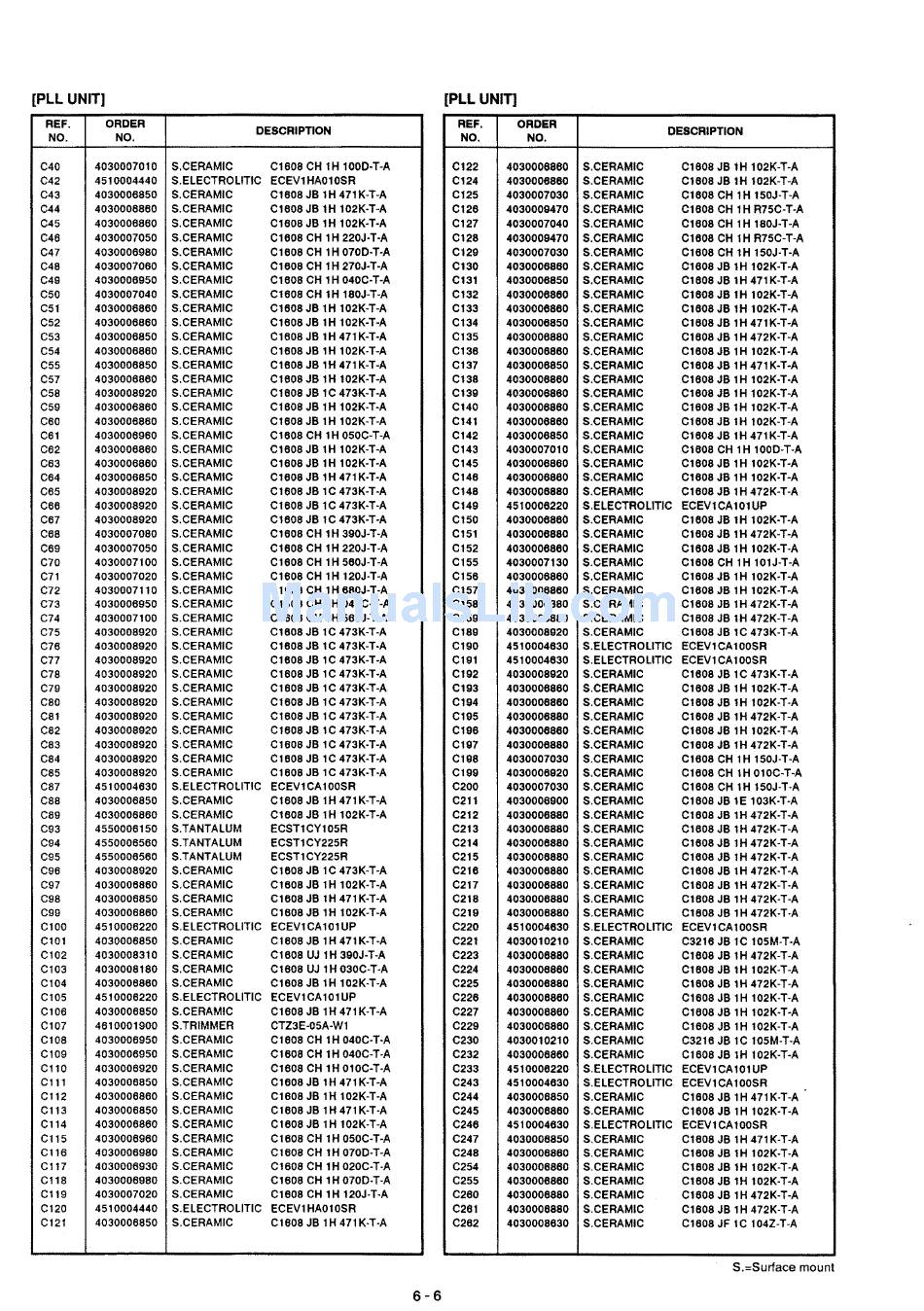

Icom IC-821H Service Manual page 35

[PLL UNIT] [PLL UNIT]
REF. ORDER
DESCRIPTION
NO.
NO.
REF. ORDER
DESCRIPTION
NO. NO.
C40 4030007010 S.CERAMIC C1608 CH lH 1000·T·A C122
4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C42
4510004440
S.ELECTROLITIC ECEV1HA010SR C124 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C43
4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C125
4030007030 S.CERAMIC C1608 CH lH 150J-T-A
C44 4030006860 S.CERAMIC C1608 JB lH 102K-T-A C126 4030009470 S.CERAMIC C1608 CH lH R75C-T-A
C45
4030006860 S.CERAMIC
C1608 JB lH 102K-T-A C127 4030007040 S.CERAMIC C1608 CH 1 H 180J-T-A
C46
4030007050 S.CERAMIC C1608 CH lH 220J-T-A
C128 4030009470 S.CERAMIC C1608 CH lH R75C-T-A
C47
4030006980 S.CERAMIC C1608 CH lH 0700-T-A C129 4030007030 S.CERAMIC
C1606 CH lH 150J-T-A
C48
4030007060
S.CERAMIC C1608 CH lH 270J-T-A C130 4030006860 S.CERAMIC C1608 JB IH 102K-T-A
C49 4030006950 S.CERAMIC C1608 CH lH 040C-T-A C131 4030006650 S.CERAMIC C1606 JB lH 471K-T-A
C50
4030007040 S.CERAMIC C1608 CH lH 180J-T-A C132
4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C51 4030006860
S.CERAMIC
C1608 JB 1 H 102K-T-A C133 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C52 4030006860 S.CERAMIC C1608JB lH 102K-T-A C134 4030006850
S.CERAMIC C1608 JB lH 471K-T-A
C53 4030006850 S.CERAMIC C1608 JB lH 471K-T-A C135 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C54 4030006860 S.CERAMIC C1608 JB lH 102K-T-A C136 4030006860 S.CERAMIC C1608 JB 1 H 102K-T-A
C55 4030006850 S.CERAMIC C1608 JB lH 471K-T-A C137 4030006850 S.CERAMIC C1608 JB lH 471K-T-A
C57
4030006660 S.CERAMIC C1608 JB lH 102K-T-A
C138 4030006860 S.CERAMIC C1608JB lH 102K-T-A
C58 4030008920 S.CERAMIC C1608 JB lC 473K-T-A C139 4030006860 S.CERAMIC C1608 JB 1 H 102K-T-A
C59
4030006860 S.CERAMIC C1608 JB lH 102K-T-A C140
4030006860 S.CERAMIC C1608 JB 1 H 102K-T-A
C60 4030006860
S.CERAMIC
C1608 JB lH 102K-T-A C141 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C61
4030006960 S.CERAMIC C1608 CH lH 050C-T-A C142 4030006850
S.CERAMIC C1608JB lH471K-T-A
C62 4030006860 S.CERAMIC C1608 JB lH 102K-T-A C143 4030007010 S.CERAMIC C1608 CH lH 1000-T-A
C63 4030006860 S.CERAMIC C1608JB lH 102K-T-A CI45 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C64
4030006850 S.CERAMIC C1608 JB lH 471K-T-A C146 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C65 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C148 4030006880 S.CERAMIC C1608JB lH472K-T-A
C66 4030008920
S.CERAMIC C1608 JB lC 473K-T-A
C149 4510006220 S.ELECTROLITIC ECEV1CA10lUP
C67 4030008920 S.CERAMIC C1608 JB lC 473K-T-A C150 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C68
4030007080 S.CERAMIC C1608 CH lH 390J-T-A C151
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C69 4030007050 S.CERAMIC C1608 CH lH 220J-T-A C152 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C70
4030007100 S.CERAMIC C1608 CH lH 560J-T-A C155
4030007130 S.CERAMIC C1608 CH 1 H 101J-T-A
C71 4030007020 S.CERAMIC C1608 CH lH 120J-T-A C156 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C72
4030007110 S.CERAMIC C1608 CH lH 680J-T-A CI57 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C73
4030006950 S.CERAMIC C1608 CH lH 040C-T-A C158
4030006880 S.CERAMIC C1606 JB lH 472K-T-A
C74 4030007100 S.CERAMIC C1608 CH lH 560J-T-A C159 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C75
4030008920 S.CERAMIC C1608 JB lC 473K-T-A C189 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C76 4030008920 S.CERAMIC C1608 JB lC 473K-T·A C190 4510004630 S.ELECTROLITIC ECEVICAIOOSR
C77 4030008920 S.CERAMIC C1606 JB lC 473K-T-A CI91 4510004630 S.ELECTROLITIC ECEVl CA 1 OOSR
C78
4030008920 S.CERAMIC C1608 JB lC 473K-T-A C192 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C79 4030008920 S.CERAMIC C1608 JB lC 473K-T-A C193 4030006860 S.CERAM1C C1608 JB IH 102K-T-A
C80
4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C194 4030006860 S.CERAMIC C1808 JB lH 102K-T-A
C81 4030008920 S.CERAMIC C1608 JB lC 473K-T-A C195 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C82
4030008920 S.CERAMIC C1608 JB lC 473K-T-A C196
4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C83 4030008920 S.CERAMIC C1608 JB lC 473K·T-A C197 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C84 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
CI98
4030007030
S.CERAMIC
C1608 CH IH 150J-T-A
C85 4030008920
S.CERAMIC C1608 JB lC 473K-T-A
C199 4030006920 S.CERAMIC C1608 CH lH 010C-T-A
C87 4510004630 S.ELECTROLITIC ECEVI CA 1 OOSR C200 4030007030 S.CERAMIC C1608 CH lH 150J-T-A
C88
4030006850 S.CERAMIC C1608 JB 1 H 471 K-T-A
C211 4030006900 S.CERAMIC C1608 JB IE 103K-T·A
C89 4030006860 S.CERAMIC C1608 JB lH 102K-T-A C212 4030006880 S.CERAMIC C1608 JB lH 472K·T-A
C93 4550006150 S.TANTALUM ECSTlCY105R C213 4030006880
S.CERAMIC
C1608 JB lH 472K-T-A
C94 4550006560 S.TANTALUM ECSTI CY225R C214 4030006880 S.CERAMIC C1608 JB 1 H 472K-T-A
C95 4550006560 S.TANTALUM ECST1CY225R C215 4030006880 S.CERAMIC C1608 JB 1 H 472K-T-A
C96 4030008920 S.CERAMIC C1608 JB lC 473K-T-A C216 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C97 4030006860 S.CERAMIC C1608 JB lH 102K-T-A C217 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C98 4030006850 S.CERAMIC C1608 JB 1 H 471 K-T-A C218 4030006880
S.CERAMIC
C1608 JB lH 472K-T-A
C99
4030006860 S.CERAMIC
C1608 JB lH 102K-T-A C219 4030006880 S.CERAMIC C1608 JB lH 472K·T-A
Cl00 4510006220 S.ELECTROLITIC ECEV1CA101UP C220 4510004630 S.ELECTROLITIC ECEV1CAtOOSR
Cl0l
4030006850 S.CERAMIC
C1808 JB lH 471K-T-A C221 4030010210 S.CERAMIC C3216 JB lC 105M-T·A
Cl02 4030008310 S.CERAMIC C1608 UJ lH 390J-T-A C223 4030006880 S.CERAMIC
C1608 JB 1 H 472K-T·A
Cl03
4030008180 S.CERAMIC C1608 UJ lH 030C-T-A
C224 4030006860 S.CERAMIC C1608 JB IH 102K-T-A
Cl04 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C225
4030006880
S.CERAMIC CI608 JB lH 472K-T-A
Cl05
4510006220 S.ELECTROLITIC ECEV1CA101UP
C226 4030006860 S.CERAMIC C1608 JB 1 H 102K-T-A
Cl06 4030006850 S.CERAMIC C1608 JB lH 471K-T-A C227
4030006860 S.CERAMIC C1608 JB lH 102K-T-A
Cl07 4610001900 S.TRIMMER CTZ3E-05A-Wl C229 4030006860 S.CERAMIC
CI608 JB tH 102K-T-A
Cl08 4030006950 S.CERAMIC C1608 CH lH 040C-T-A
C230 4030010210 S.CERAMIC C3216 JB lC 105M-T-A
Cl09 4030006950 S.CERAMIC C1608 CH lH 040C-T-A C232 4030006860 S.CERAMIC C1608 JB tH 102K-T-A
ClIO 4030006920 S.CERAMIC C1608 CH lH 010C-T-A
C233 4510006220 S.ELECTROLITIC ECEV1CA10lUP
Cll1
4030006850 S.CERAMIC
C1608 JB lH 471K-T-A C243 4510004630 S.ELECTROLITIC ECEV1CA100SR
C112 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C244
4030006850
S.CERAMIC C1608 JB lH 471K-T-A
C113 4030006850 S.CERAMIC C1608 JB 1 H 471 K-T-A
C245 4030006860 S.CERAMIC C1608 JB 1 H 102K-T-A
C114 4030006860
S.CERAMIC
C1608 JB lH 102K-T-A C246 4510004630 S.ELECTROLITIC ECEV1CA100SR
C115 4030006960 S.CERAMIC C1608 CH lH 050C-T-A C247 4030006850 S.CERAMIC C1608 JB tH 47tK-T-A
C116 4030006980 S.CERAMIC C1608 CH lH 0700-T-A C248 4030006860 S.CERAMIC
C1608 JB IH 102K-T·A
CI17 4030006930 S.CERAMIC C1608 CH lH 020C-T-A
C254 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C118
4030006980 S.CERAMIC CI608 CH IH 0700-T-A
C255 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
CI19 4030007020 S.CERAMIC CI608 CH IH 120J-T-A C260 4030006880 S.CERAMIC C1608JB lH472K-T-A
C120 4510004440 S.ELECTROLITIC ECEV1HA010SR
C261 4030006880 S.CERAMIC
C1608 JB 1 H 472K-T-A
C121 4030006850 S.CERAMIC C1608 JB 1 H 471 K-T-A
C262 4030008630 S.CERAMIC C1608 JF lC 104Z-T-A
S.=Surface mount
6-6
