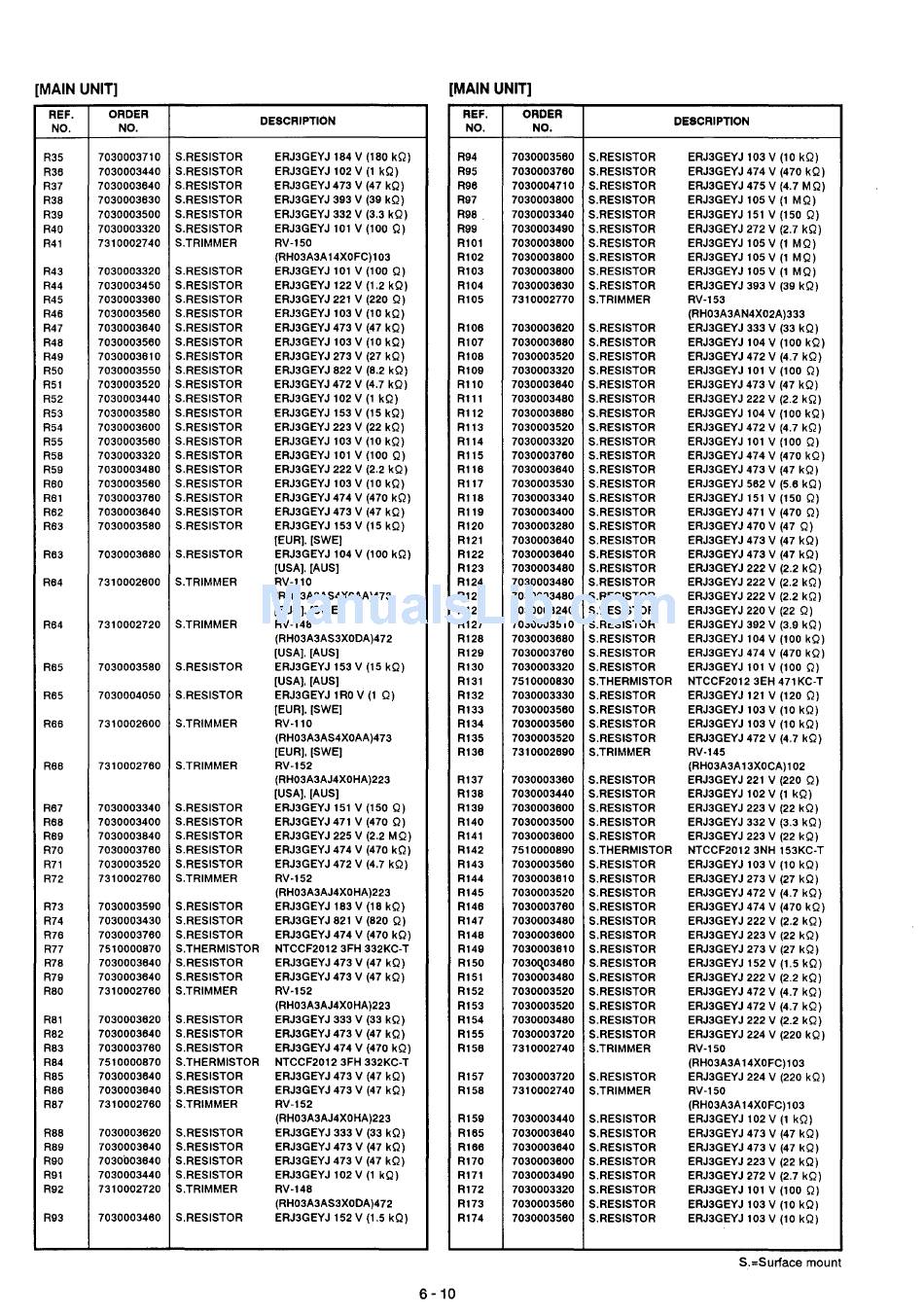

Icom IC-821H Service Manual page 39

[MAIN UNIT] [MAIN UNIT]
REF.
ORDER
DESCRIPTION
NO.
NO.
REF. ORDER
DESCRIPTION
NO. NO.
R35
7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kQ) R94 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R36 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ) R95 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kQ)
R37
7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ) R96 7030004710 S.RESISTOR ERJ3GEYJ 475 V (4.7 MQ)
R38
7030003630 S.RESISTOR
ERJ3GEYJ 393 V (39 kQ)
R97 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MQ)
R39 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kQ) R98. 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Q)
R40 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Q) R99 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kQ)
R41
7310002740 S.TRIMMER RV-150 Rl0l 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MQ)
(RH03A3A 14XOFC) 1 03
Rl02
7030003800
S.RESISTOR ERJ3GEYJ 105 V (1 MQ)
R43
7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Q) Rl03 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MQ)
R44 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kQ) Rl04 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kQ)
R45
7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Q) Rl05 7310002770
S.TRIMMER
RV-153
R46 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ) (RH03A3AN4X02A)333
R47 7030003640
S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
Rl06 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kQ)
R48
7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ) Rl07 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R49 7030003610 S.RESISTOR
ERJ3GEYJ 273 V (27 kQ)
Rl08 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
R50
7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kQ) Rl09 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Q)
R51
7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
Rll0
7030003640
S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R52
7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ) Rlll 7030003480
S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R53
7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kQ) Rl12 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R54
7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
Rl13
7030003520
S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
R55
7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ) Rl14 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Q)
R58 7030003320
S.RESISTOR ERJ3GEYJ 101 V (100 Q)
Rl15
7030003760
S.RESISTOR ERJ3GEYJ 474 V (470 kQ)
R59 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ) Rl16 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R60 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ) Rl17 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kQ)
R61 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kQ) Rl18 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Q)
R62 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ) Rl19 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Q)
R63 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kQ) R120 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Q)
[EUR]. [SWE] R121 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R63
7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ) R122 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
[USA]. [AUS]
R123
7030003480
S.RESISTOR
ERJ3GEYJ 222 V (2.2 kQ)
R64 7310002600 S.TRIMMER
RV-ll0
R124 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
(RH03A3AS4XOAA)473 R125 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
[EUR]. [SWE] R126 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Q)
R64 7310002720
S.TRIMMER RV-148
R127
7030003510
S.RESISTOR ERJ3GEYJ 392 V (3.9 kQ)
(RH03A3AS3XODA)472 R128 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
[USA]. [AUS] R129 7030003760
S.RESISTOR
ERJ3GEYJ 474 V (470 kQ)
R65 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kQ) R130 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Q)
[USA]. [AUS] R131 7510000830 S.THERMISTOR NTCCF2012 3EH 471 KC-T
R65
7030004050 S.RESISTOR ERJ3GEYJ lRO V (1 Q) R132 7030003330
S.RESISTOR
ERJ3GEYJ 121 V (120 Q)
[EUR]. [SWE] R133 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R66 7310002600 S.TRIMMER RV-ll0 R134 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
(RH03A3AS4XOAA)473 R135 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
[EUR]. [SWE] R136 7310002690 S.TRIMMER RV-145
R6B
7310002760 S.TRIMMER RV-152
(RH03A3A 13XOCA) 102
(RH03A3AJ4XOHA)223
R137 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Q)
[USA]. [AUS] R138 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R67 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Q) R139 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
R68
7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Q) R140 7030003500
S.RESISTOR ERJ3GEYJ 332 V (3.3 kQ)
R69 7030003840
S.RESISTOR
ERJ3GEYJ 225 V (2.2 MQ) R141 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
R70
7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kQ) R142 7510000890
S.THERMISTOR NTCCF2012 3NH 153KC-T
R71 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ) R143 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R72
7310002760 S.TRIMMER RV-152 R144 7030003610
S.RESISTOR ERJ3GEYJ 273 V (27 kQ)
(RH03A3AJ4XOHA)223
R145 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
R73 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kQ) R146 7030003760
S.RESISTOR ERJ3GEYJ 474 V (470 kQ)
R74 7030003430
S.RESISTOR
ERJ3GEYJ 821 V (820 Q) R147 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R76
7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kQ)
R148
7030003600
S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
R77 7510000870
S.THERMISTOR
NTCCF2012 3FH 332KC-T R149 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kQ)
R78
7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R150 7030Q,03460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kQ)
R79 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ) R151 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R80 7310002760 S.TRIMMER RV-152 R152 7030003520
S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
(RH03A3AJ4XOHA)223 R153 7030003520
S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
R81
7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kQ)
R154 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R82 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ) R155 7030003720
S.RESISTOR ERJ3GEYJ 224 V (220 kQ)
R83 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kQ) R156 7310002740 S.TRIMMER RV-150
R84 7510000870 S.THERMISTOR NTCCF2012 3FH 332KC-T
(RH03A3A14XOFC)103
R85 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ) R157 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kQ)
R86 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ) R158 7310002740
S.TRIMMER
RV-150
R87
7310002760 S.TRIMMER RV-152
(RH03A3A 14XOFC)103
(RH03A3AJ4XOHA)223 R159 7030003440
S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R88 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kQ) R165 7030003640
S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R89
7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R166 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R90 7030b03640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ) R170 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
R91 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ) R171 7030003490
S.RESISTOR ERJ3GEYJ 272 V (2.7 kQ)
R92 7310002720 S.TRIMMER RV-148 R172 7030003320 S.RESISTOR
ERJ3GEYJ 101 V (100 Q)
(RH03A3AS3XODA)472
R173 7030003560 S.RESISTOR
ERJ3GEYJ 103 V (10 kQ)
R93 7030003460 S.RESISTOR ERJ3GEY J 152 V (1.5 kQ)
R174 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
