www.prolight.co.uk

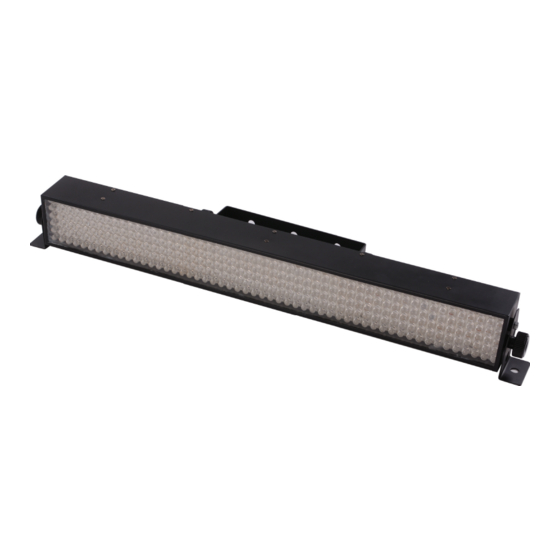

BlockBuster 6
(Order code: LEDJ73)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlockBuster 6 and is the answer not in the manual?

Questions and answers

Related Manuals for Ledj BlockBuster 6

Summary of Contents for Ledj BlockBuster 6

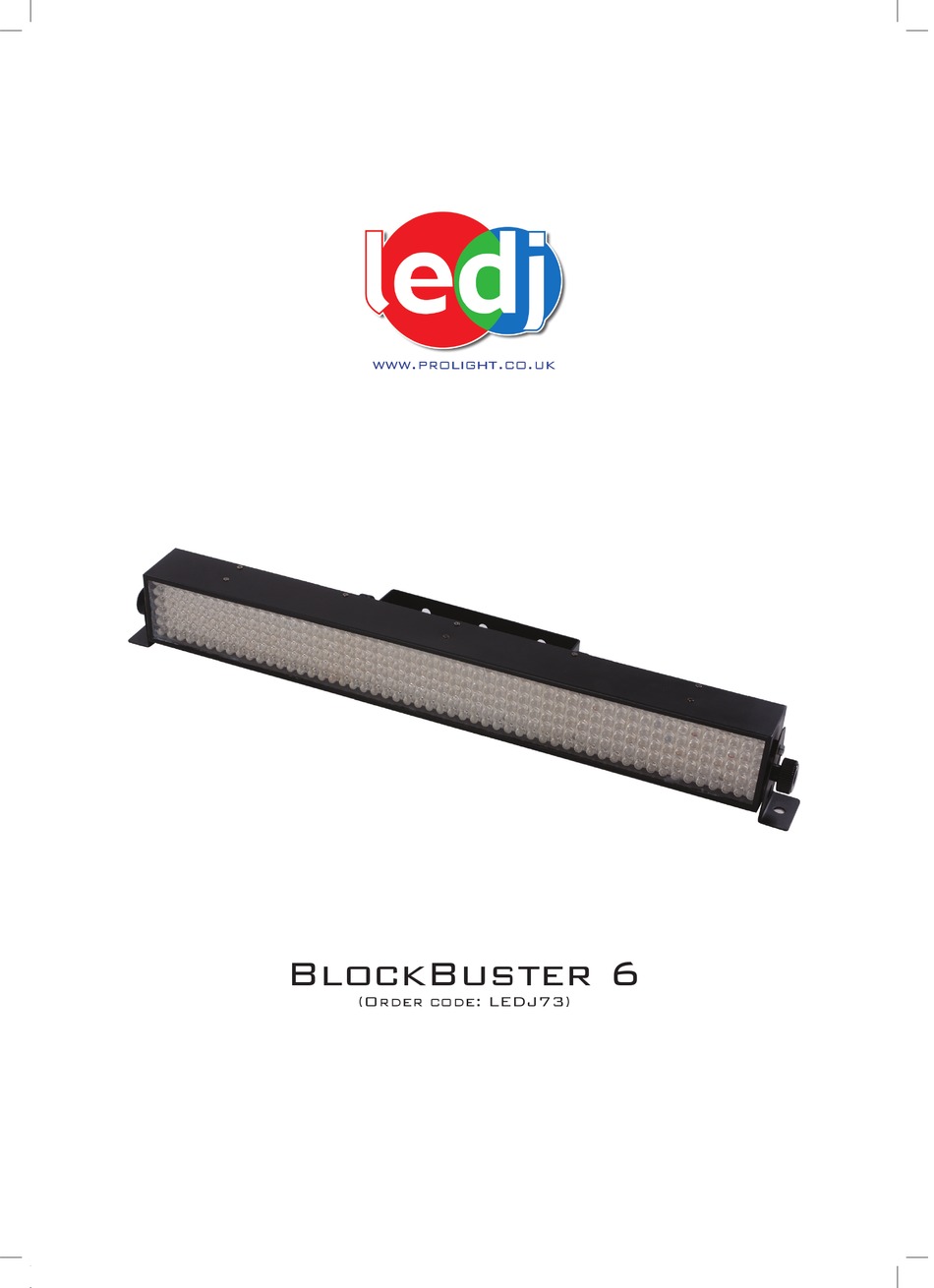

  • Page 1 BlockBuster 6 (Order code: LEDJ73)
  • Page 2 LEDJ BlockBuster 6 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
  • Page 3 LEDJ BlockBuster 6 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...

  • Page 4: Dmx Mode

    • Sound mode: Programmes are activated to the sound by the built-in microphone 1) A programme is a sequence of different steps, with the BlockBuster 6 you can select up to 14 different programmes. Press the “set up” and the UP/DOWN buttons to select between pro grammes(00-14) and select the desired programme value (step time and flash).
  • Page 5 LEDJ BlockBuster 6 Operations b) DMX-protocol The control board allows you to set 5, 8, 11 or 20 DMX channels for different applications. Press the “set up” button until the display is as follows: DMX MODE CH NO:20 Set the desired channels (5, 8, 11 or 20) Via the UP and DOWN buttons...
  • Page 6 LEDJ BlockBuster 6 DMX-Protocol DMX-Protocol MODE VALUE 0-10 BLACKOUT 11-21 FLASH YELLOW 22-32 NOT USED NOT USED 0-225 33-43 GREEN (0-28HZ) CYAN 44-54 55-65 BLUE 66-76 PURPLE 77-87 WHITE 88-98 SLOW DREAM 99-109 FAST DREAM 110-120 COLOUR FADE 121-131 COLOUR CHANGE...
  • Page 7 LEDJ BlockBuster 6 Specifications Specifications: • 324 high intensity LED’s • Red 108, Green 108, Blue 108 (total 324) • LED beam angle: 30 degree’s • Dimensions: 800 x 100 x 75mm • Weight: 5.5kg • Power in: 240v ~ 50Hz...
