Page 1: User Manual

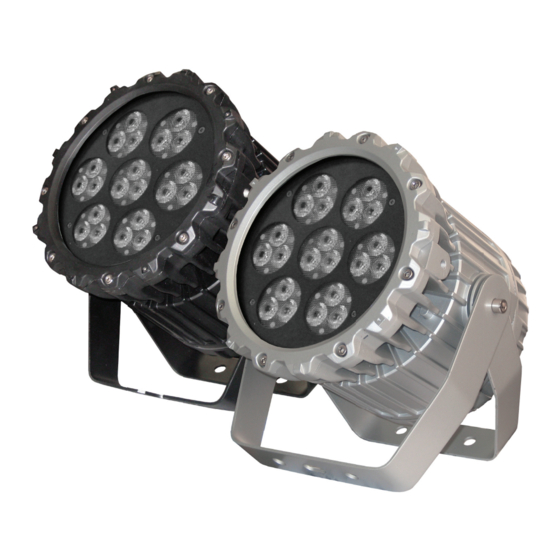

. p r o l i g h t . c o . u k LEDJ Xterior Wash Tri Order code: LEDJ135 (Silver) Order code: LEDJ136 (Black) USER MANUAL... - Page 2 Xterior Wash Tri Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 110~240V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent...
- Page 3 Xterior Wash Tri Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 Xterior Wash Tri Technical specifications You should find inside the LEDJ carton the following items: 1, Xterior Wash Tri Unit 2, Instruction manual Technical Specifications: DMX channels: 6 400Hz flicker free 3W LEDs Voltage: 110~240V - 50~60Hz 21 Ultra bright 3W tri-colour LEDs...
- Page 5 Xterior Wash Tri Operation There are 5 different operation modes to choose from: 1) Static colour mode 2) Colour change mode 3) Colour fade mode 4) Slave mode 5) DMX mode 1, Static colour mode Mode button - Press the “MODE” button under the LED display, to show “C000”, then press the “SET UP”...
- Page 6 Xterior Wash Tri Operation 6 Channel DMX chart Channel Value Function 000-255 Master dimmer 000-255 Red (0 - 100%) 000-255 Green (0 - 100%) 000-255 Blue (0-100%) Blackout 5-84 Colour macro 85-169 Colour change 170-255 Colour fade 0-255 Strobe...
- Page 7 DATA Cable (DMX cable) requirements (for DMX operation): • The LEDJ Xterior Wash Tri can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a 3-pin XLR connector for data input/output (figure 1).
- Page 8 Xterior Wash Tri DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
