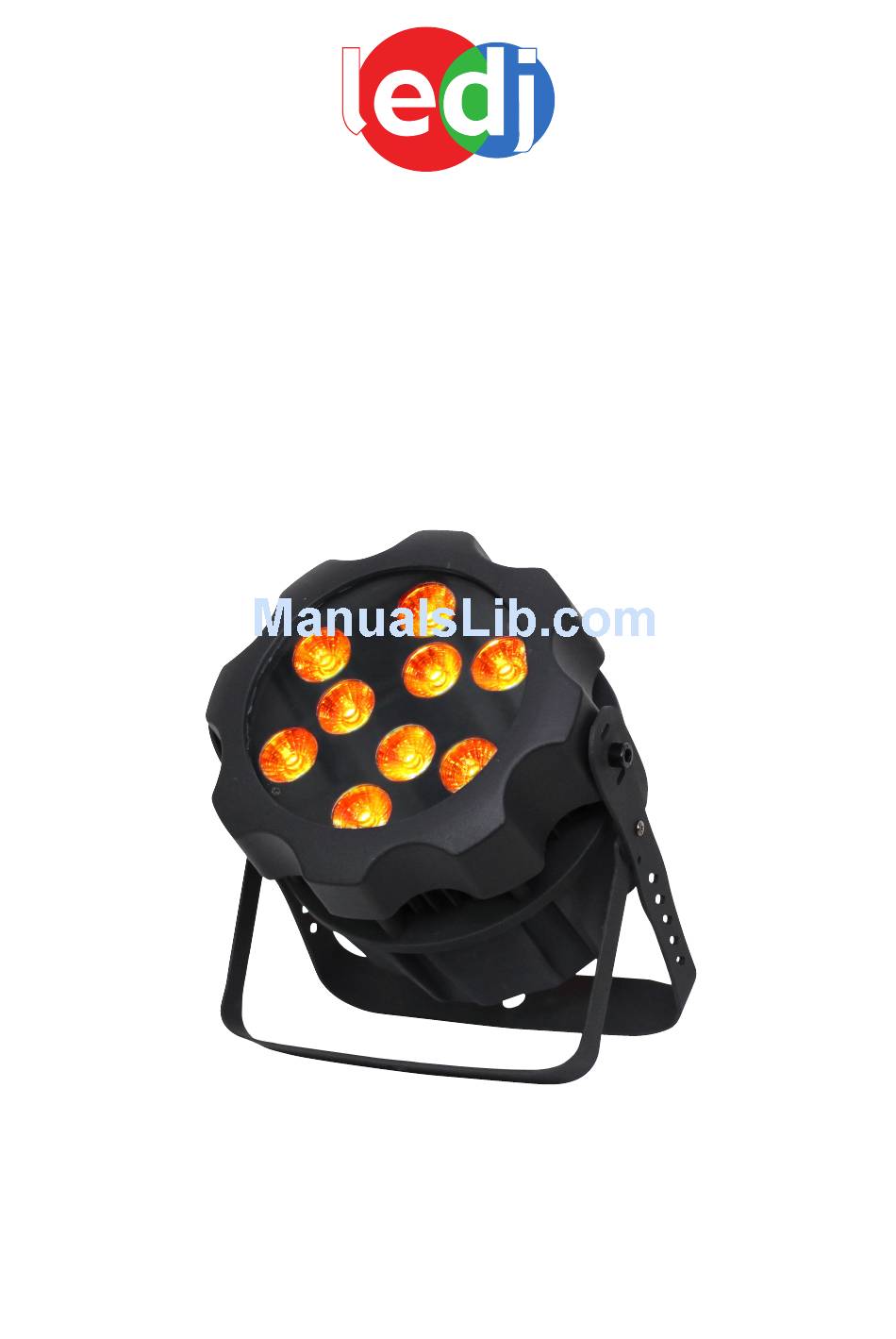

- Page 1 HEX Par 9 Exterior Fixture User Manual Order code: LEDJ226...
-
Page 2: Safety Advice

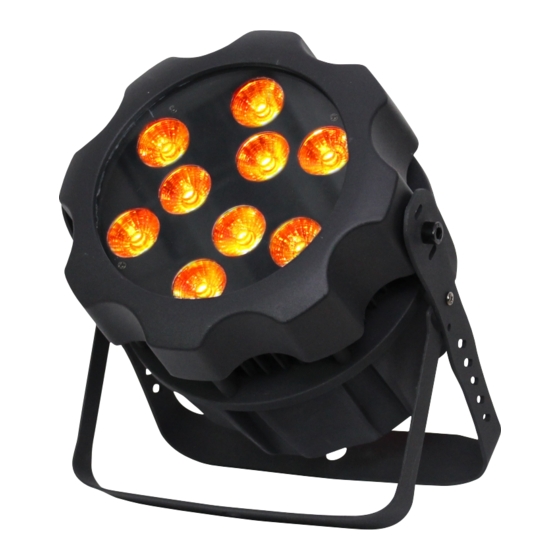

Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!! IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. - Page 3 Product overview & technical specifications HEX Par 9 Exterior Fixture IP65 The exterior HEX Par 9 features 9 x 12W six-colour LEDs, giving smooth colour mixing from rich saturated hues to subtle pastel shades, controlled via a 4 push button LED menu which allows for easy access to the modes including DMX, auto and master/slave. This fixture can be used for interior and exterior applications (IP65 rated) making it suitable for both architectural and stage lighting. • 9 x 12W six-colour LEDs (RGBWAUV) • Beam angle: 25° • 4kHz refresh rate • DMX channels: 2/3/4/5/6 or 9 selectable • Auto and master/slave modes • 0 - 100% dimming and variable strobe • 4 push button menu with LED display • IP rated power in/out sockets • IP rated 3-Pin DMX in/out sockets Specifications HEX Par 9 Power consumption 115W Power supply 100~240V, 50/60Hz Dimensions 235 x 230 x 205mm Weight 4.8kg Order code LEDJ280 25°...
-
Page 4: Operating Instructions
Operating instructions IMPORTANT! PLEASE NOTE: The LED display for this fixture has a menu locking function where after 30 seconds of inactivity it will lock. To unlock the menu hold you must return to the main menu before you can then access the sub menus. DMX mode: Addr To access the DMX mode, press the “MODE” button until the display shows and press the “ENTER” button. Use the “UP” and “DOWN” buttons to select the desired DMX address and then press “ENTER” to confirm your selection. 2 channel mode: 5 channel mode: Channel Value Function Channel Value Function 000-255 Dimmer (0-100%) 000-255 Red (0-100%) 000-255 Colour change 000-255 Green (0-100%) 000-255 Blue (0-100%) 3 channel mode 01: 000-255 White (0-100%) 000-255 Amber (0-100%) Channel Value... -
Page 5: Channel Mode
Operating instructions Channel mode: ChNd To access the channel mode, press the “MODE” button until the display shows and press the “ENTER” button. Use the “UP” and “DOWN” buttons to select the desired channel mode and then press “ENTER” to confirm your selection. ENTER DOWN & A d d r A 0 0 1 A 5 1 2 DMX address setting ENTER ENTER C h N d 2 C h 3 C h 1 3 C h 2 ENTER ENTER... -
Page 6: Master/Slave Mode
Master/Slave mode: SLNd To access the Master/Slave mode, press the mode button until the display shows NaSt and press the “ENTER” button. Use the “UP” and “DOWN” buttons to select (master) SLAV or (slave) and then press “ENTER” to confirm your selection. Show mode: ShNd To access the colour change mode, press the “MODE” button until the display shows and press the “ENTER” button. Use the “UP” and “DOWN” buttons to select the desired colour change mode (see below) and then press “ENTER” to confirm your selection. CoLo CoL1 (Static Colour) press “ENTER” and the display will show , press “ENTER” again and the CoL1 Co63 display will show CoL. Use the “UP” and “DOWN” buttons to select the desired colour and then press “ENTER” to confirm your selection. You can now set the dimmer by pressing the “UP” button followed by the “ENTER” button, now use the “UP” and “DOWN” buttons to select the desired d000 d255 brightness and then press “ENTER” to confirm your selection. JuNP Sp00 (colour change) press “ENTER” and the display will show , press “ENTER” again and use the “UP” and “DOWN” buttons to select the desired colour change speed SP00-SP99 and then press “ENTER” to confirm your selection. You can now set the dimmer by pressing the “UP” button followed by the “ENTER” button, now use the “UP” and “DOWN” buttons to select the desired brightness d000 d255 and then press “ENTER” to confirm your selection. F@de Sp00 (colour fade) press “ENTER” and the display will show , press “ENTER” again and... - Page 7 Operating instructions Display On/Off: To access the LED display on/off mode, press the “MODE” button until the display shows and press the “ENTER” button. Use the “UP” and “DOWN” buttons to select or and then press “ENTER” to confirm your selection. Display inversion On/Off: To access the LED display inversion mode, press the “MODE” button until the display shows dISP and press the “ENTER” button. Use the “ENTER” button to select the inversion on or off and press “ENTER” to confirm your selection. Self test: test To access the self test mode, press the “MODE” button until the display shows and press the “ENTER” button. The fixture will now run an auto test on all the LEDs and colours. Fixture hours: hour To access the fixture hours mode, press the “MODE” button until the display shows and press the “ENTER” button. The fixture will now show the total operating hours. www.prolight.co.uk HEX Par 9 User Manual...
-
Page 8: Dmx Setup
XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers. Please quote: LEDJ 1m Interior - LEDJ 1m Exterior LEDJ 2m Exterior LEDJ 5m Exterior LEDJ 10m Exterior Exterior DMX cable DMX cable DMX cable DMX cable DMX cable Order code: LEDJ91 Order code: LEDJ141 Order code: LEDJ142 Order code: LEDJ143 Order code: LEDJ144 Also remember LEDJ 1m Exterior... -
Page 9: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interferance. it is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL9O, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion. -
Page 10: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk HEX Par 9 User Manual... - Page 11 www.prolight.co.uk HEX Par 9 User Manual...
- Page 12 www.prolight.co.uk HEX Par 9 User Manual...
