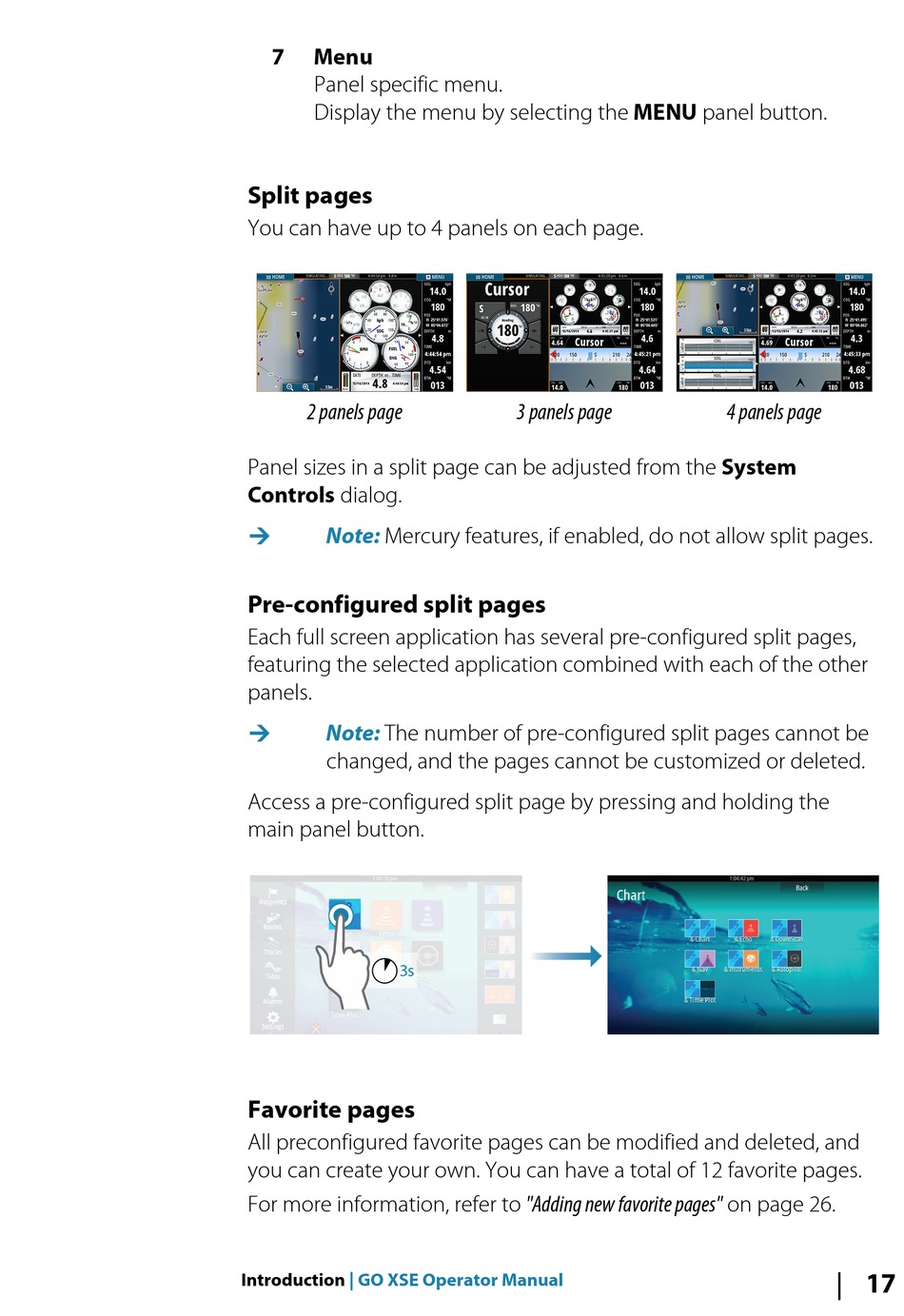

Simrad GO XSE Operator's Manual page 17

7 Menu
Panel specific menu.
Display the menu by selecting the MENU panel button.
Split pages
You can have up to 4 panels on each page.
2 panels page
Panel sizes in a split page can be adjusted from the System
Controls dialog.
Note:
Ú Mercury features, if enabled, do not allow split pages.
Pre-configured split pages
Each full screen application has several pre-configured split pages,
featuring the selected application combined with each of the other
panels.
Note:
Ú The number of pre-configured split pages cannot be
changed, and the pages cannot be customized or deleted.
Access a pre-configured split page by pressing and holding the
main panel button.
Favorite pages
All preconfigured favorite pages can be modified and deleted, and
you can create your own. You can have a total of 12 favorite pages.
For more information, refer to "Adding new favorite pages" on page 26.
Introduction | GO XSE Operator Manual
3 panels page 4 panels page
17
