Unifi 45 Mount and Documentation

Item
Part No.
1 52-00472-20
2 20-00934-20
3 52-00473-20
4 20-00908-21
5 52-00478-20
6 51-00661-21
7 20-00925-22
8 20-00995-20
9 52-00482-20
2
1
2
3
Qty Description
1 Cover, top, wall plate
1 Assembly, wall plate
1 Cover, bottom, wall plate
1 Assembly, extended connection panel (ECP)
1 Cover, boom interface
1 Plate, projector
1 Kit, documentation, for models UF45-680 and UF45-660
NOTE: Includes mounting templates, installation guide and user guide.
1 Kit, projector lock
1 Access door, head, Unifi 45

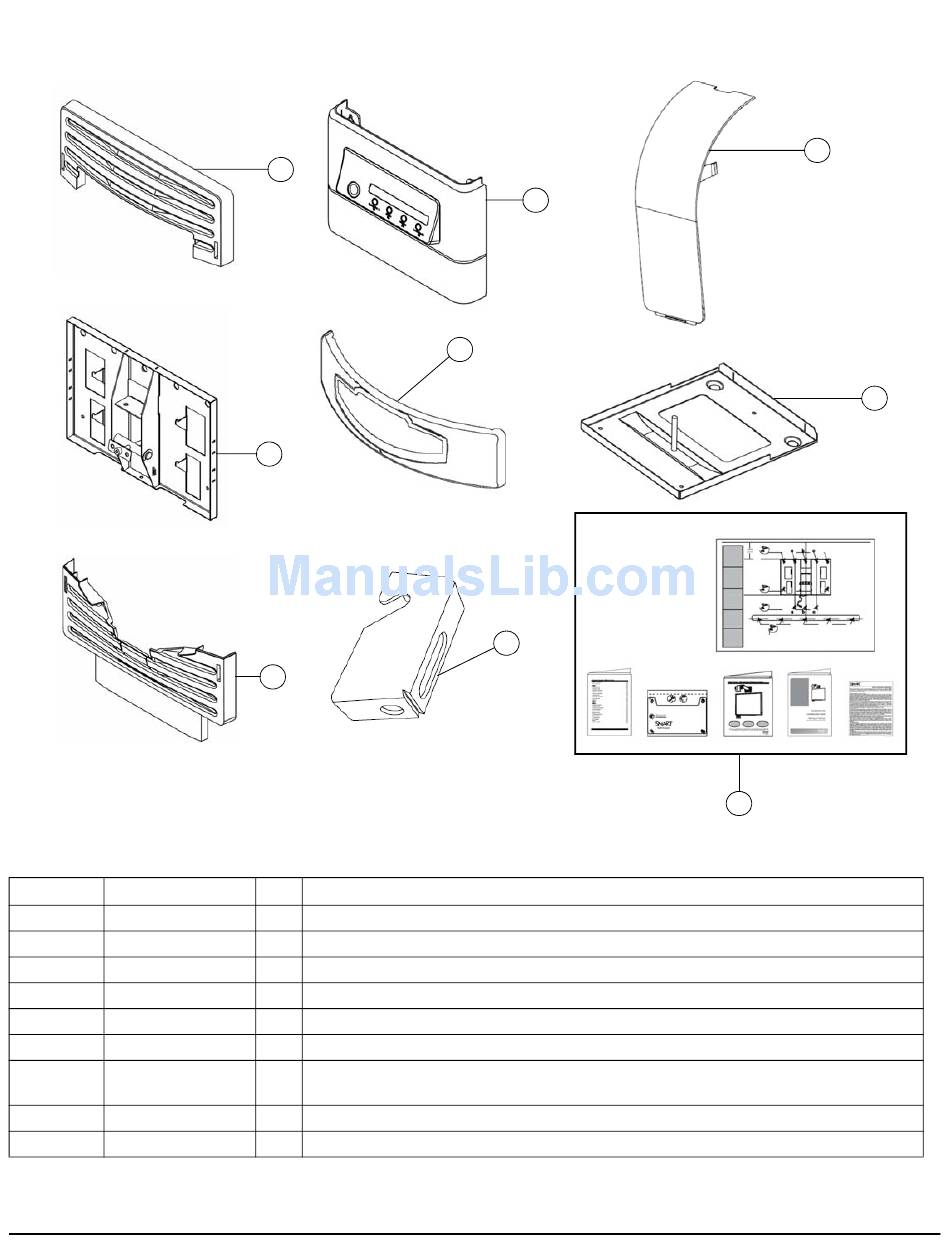

Service Parts Diagrams for the UF45-680 and UF45-660
4
5
8
9
6
7
