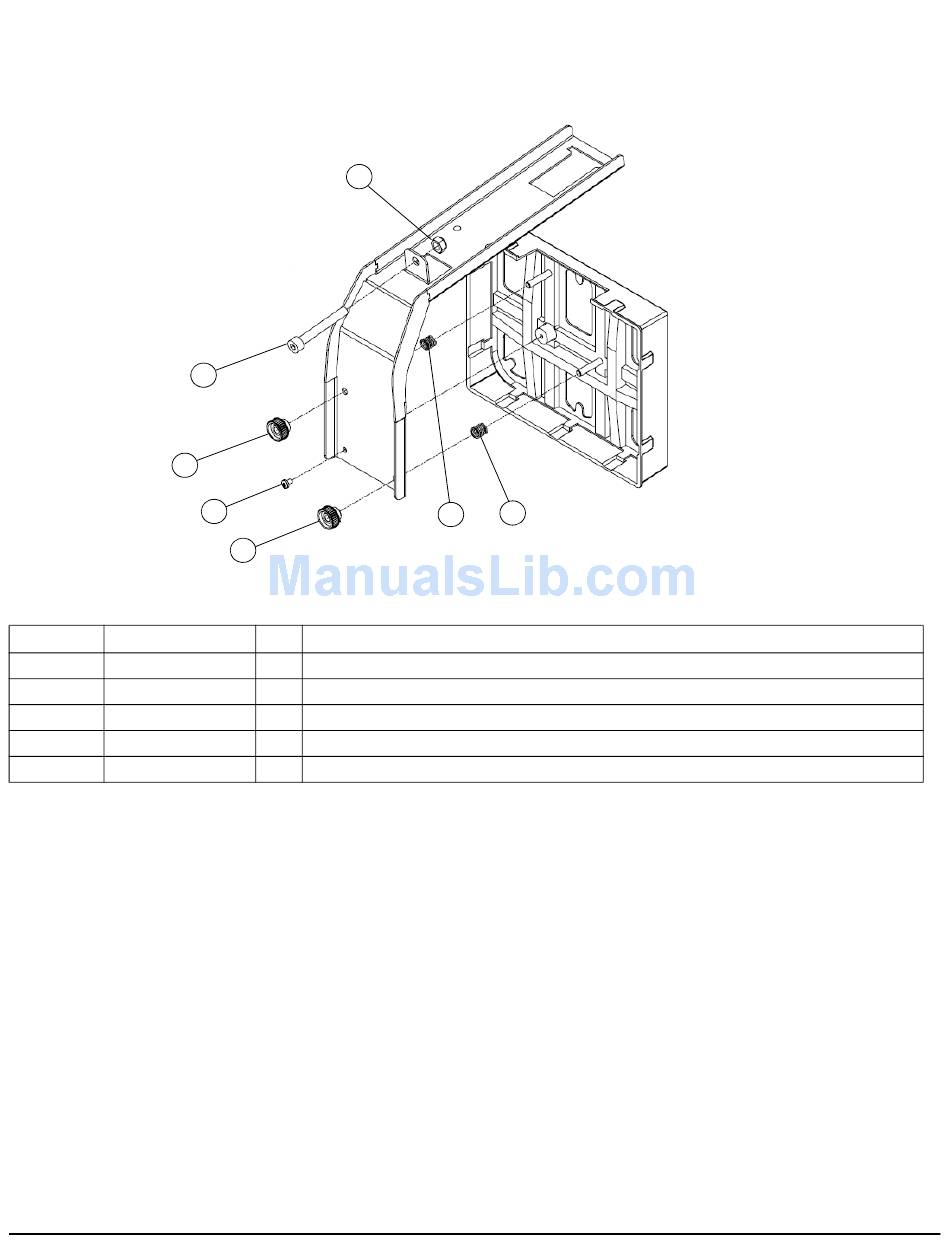

Unifi 45 Mirror Assembly (Part No. 20-00906-20)

3
Item Part No.
1 30-01117-20
2 30-01126-20
3 30-01130-20
4 30-00946-20
5 30-01131-20
1
2
4
3
Qty Description
1 Nut, M8, locking, nylon
1 Screw, M8 × 60 mm, hex, socket head
2 Knob, M6
1 Screw, M4 × 6 mm, Phillips, pan head
2 Spring
Service Parts Diagrams for the UF45-680 and UF45-660
